High Residue Formula Tape
All of the custom secure tape featured on this page uses our High Residue Tape, the most sensitive and versatile tamper evident tape we offer. However, application speeds may be lower due to the sensitive tamper evident feature.
Customized tamper evident tape offers more security. We can customize all aspects of the tape, including color, graphic, serial number, hidden tamper evident pattern, tape width, roll length, etc.
Our high residue formula is typically used for recycled cartons, pallet films (shrink & stretch), etc. Conventional security tapes may not tamper on these more difficult surfaces.
Since most of the adhesive remains on the surface, cleaning up the remaining adhesive residue is difficult. This product is recommended for disposable packaging, where cleaning up the adhesive residue is not required.
Choosing Your Security Tape
Sealing Disposable Packaging or Reusable Container
When removed, these security tapes transfer all of the adhesive to the surface. For disposable packaging (such as shipping cartons) the amount of adhesive residue left on the surface is usually not an issue. However, if the container or surface will be re-used, cleaning up the adhesive residue will be more difficult and time consuming for tape with a high residue formula. See the "Ease of Clean Up" recommendations (see below). If the container is to be re-used, also consider our partial transfer tapes (PST and EST series), which leave less adhesive residue on the surface.
Multiple Security Features
In addition to the tamper evident feature, you can choose tapes with addtional security features. Choose the features that are important to your application:
- Printed Serial Numbers: A unique number improves security. Record the number as needed for added security.
- Plain Tape: No obvious signs that the tape is tamper evident minimizes attention to a package during shipping.
- Printed Instructions on the Tape: Additional printing can serve as a deterrent to tampering.
- Custom Printed Tape: Customizations improve security.
- Tape Width: Using 1 inch and 3 inch wide tapes make it easier to detect tampered cartons that are resealed with conventional 2 inch wide tape.
Maximum Compatibility and Versatility
Our PVT and EVT series tapes are versatile and are suitable for most applications. However, we recommend testing tape samples in actual conditions before product is ordered. We offer free samples so you can test and verify the selected tape will meet your specific needs.
- Surface Compatibility: Based on our lab tests and customer feedback, our tape performs on a wide range of material surfaces including many difficult surfaces such as recycled cardboard (without tearing the surface), pallet films, plastic surfaces and textured surfaces.
- Refrigeration and Freezer Applications: Our PVT and EVT tapes can be APPLIED in cold temperatures as low as +20F.
- Service Temperature: After application, our PVT and EVT tapes are suitable for service temperatures ranging from -40F to +200F.
- Perforated Tape: Some tapes are perforated and can be used as individual seals. If you prefer individual security seals, also see our security labels for more options.
- Standard Sizes: We have a large selection of 2 in wide tape, the most common size used on shipping cartons. We also have 1 inch wide and 3 inch wide tapes.
- Thicker Film: Our PVT and EVT tapes are constructed of thicker film (2mil polyester) than many competitive tapes. The thicker film provides additional strength during shipping and handling.
Roll Length
Stock tapes are offered in lengths of 180 and 250 feet, which will fit a standard tape dispenser. Longer roll lengths save time because of fewer roll changes.
We also offer larger rolls for machine application -- up to a maximum of 2000 feet in length for EVT and PVT tapes. For custom tape, we can make any roll length. Please call if you have a special roll length requirement.
Rolls over 250 feet in length have splices; the splice includes the tamper evident feature.
Application Rates - Manual and Automated
A typical application rate for tamper evident tape is 12 inches per second, which is usually slower than security packing tape or other standard tapes. Dispensing the tape at faster speeds may cause the hidden message to show before it is affixed onto the surface.
If you are applying tape using an automated tape machine, we recommend testing a sample roll (minimum 180 LF) of EVT/PVT tape before placing an order. Since our tapes are designed to easily show tamper evidence, the rollers on your tape machine may need to be modified to prevent the rollers from triggering the hidden security message (also it is possible that adhesive will accumulate on the rollers which contact the tape adhesive). Please contact us if your machine rolls have these issues and we will provide details on modifying the machine rollers.
If your machine rollers cannot be modified, we recommend our partial transfer tapes (PST and EST series tapes) for machine application.
Tape Conformity to Complex Shapes
Our PVT and EVT tape is designed for flat surfaces and to be applied around corners, as typically used on a box, crate, envelope, etc. The thicker film used with our PVT and EVT tapes may not be suitable if the tape must conform to surfaces with multiple contours. Narrower tape widths conform better to contoured shapes. However, if the tape does not conform sufficiently to seal your container, we recommend a tape made of thinner film (see our PST and EST tapes, which are made with 1 mil thick film).
Quantity Discounts
We offer pricing discounts for higher quantity orders. For the best value,we recommend purchasing at least 1 year's supply. When stored properly, our tapes have a minimum 2 year shelf life.
Low Minimum Order Quantities for Custom Printed Tape
Custom printed tape offers more security. We offer custom printed tape in low order quantities (minimum 84 rolls, 2 inch x 180 feet with a 15% quantity tolerance). For smaller custom orders of tamper evident tape (less than 84 rolls), please see our Security Tape on a Liner
Fast and Friendly Customer Service
If you are unsure which tape best fits your needs, please send us an email or give us a call (see the contact info at the bottom of this page).
Custom Security Tape Options
Imprinted Security Tape
Our most affordable custom option is to imprint your custom text (using black ink) on one of two stock designs. The minimum order quantity for IMPRINTED TAPE is 40 rolls.
Custom Security Tape
Another option is to custom print your graphics using custom colors. The minimum order quantity for CUSTOM TAPE is 80 rolls.

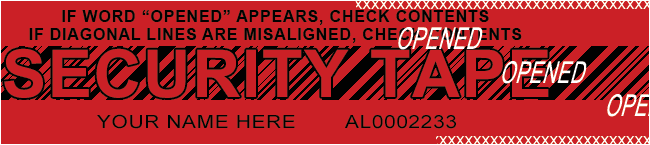

Additional Security Features of the Stock Graphics
Printed instructions on tape reminds receiver of security features:
- Top Line: "IF WORD 'OPENED' APPEARS, CHECK CONTENTS"
- Second Line: IF DIAGONAL LINES ARE MISALIGNED, CHECK CONTENTS
- Main Graphic: SECURITY TAPE
- Bottom Line: YOUR CUSTOM TEXT with serial number
Diagonal Alignment Lines show mis-alignment if the carton seal is slit and resealed.
Features & Benefits
Features

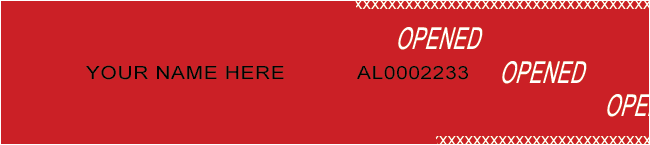

Hidden Message: OPENED (May vary from graphic shown)
Printed Instructions on tape reminds receiver of security features:
- "IF WORD 'OPENED' APPEARS, CHECK CONTENTS"
- Unique Serial Number
- If resealed, printed text and/or diagonal lines may be misaligned
Pre-assigned Serial Number -- improves security; for added security record the serial number on the bill of lading.
Diagonal Alignment Lines (in or around the words SECURITY TAPE) are designed to show mis-alignment if the carton seal is slit and resealed.
Adhesive residue: Typically 50% or more of the adhesive remains on the surface. Those tapes marked "HIGH RESIDUE" will leave about 90% adhesive residue.
Before Tampering
After Tampering
After application, when removed the security tape will self destruct, leaving words or symbols on the package and in the security tape itself.
Benefits
- Protects your products and equipment
- Controls access to shipping cartons, pallets, and other containers
- Indicates tampering or pilfering
Troubleshooting Guide
If the tamper evident feature is not working to your satisfaction, please review the Troubleshooting Guide for suggestions, or give us a call.
Warning to Counterfeiters
If NovaVision is requested to produce custom security products or branded packaging, we require proof to substantiate that you are authorized to purchase that product. We independently verify your contact information and legitimacy. If you are not authorized to purchase the product, your contact information may be provided to law enforcement authorities without further notice. NovaVision cooperates with all local, state, federal and international law enforcement agencies to catch and prosecute fraudulent purchases and counterfeiting.
Counterfeiting is illegal and is defined as any attempt to copy an original with the intent to defraud. It is illegal to purchase a fake identification product, an unauthorized custom hologram, an unauthorized duplicate security label, or counterfeit packaging which uses a copyrighted brand name or logo. Further, in the USA, legislation is pending to expand the criminal law so that federal prosecutors will have an easier time prosecuting counterfeiters that manufacture bogus product labels and packaging.
Learn More
Specifications and Intended Use
Please see the Specifications and Intended Use for more details.
Installation Instructions
For installation instructions, see the Installation Guide.
Product Returns and Claims
See Ordering Info for more details.
High Residue Formula Tape With Custom Text and Serial Number
Security Tape With Custom Text & Serial Number, Red, 2 in x 180 ft, PST2R-19T
$/Roll: $32.95
Min. Order Qty: 40 Rolls
Code: PST2R-19T
High Residue Tape
Security Tape With Custom Text & Serial Number, Red, 2 in x 180 ft, PST2R-20T
$/Roll: $32.95
Min. Order Qty: 40 Rolls
Code: PST2R-20T
High Residue Tape
High Residue Formula Tape With Logo and Serial Number
Security Tape With Logo & Serial Number, Red, 2 in x 180 ft, PST2R-20C
Pricing Configuration: $200 Setup/Order + $32.95/roll
Min. Order Qty: 80 Rolls
Code: PST2R-20C
High Residue Tape
Custom Tape Options (Add to prices for standard configuration):
-
Background Color:
- Stock Red: Included, no additional charge
- White, Light Blue, or Green: Add $100/order
- Custom Colors: Add $200/color (required on each order)
-
Colored Logo & Graphic (other than black):
- Stock colors: Navy, Red, Green: Add $100.00/order
- Custom Colors: add $200/color
- Add additional colors: add $100/plate + add $200 set up/order
- Custom Hidden Pattern: add $100/plate + add $100 set up/order
- Eliminate serial number (2 inch tape): reduce $2.70/roll
-
1 inch tape pricing:
-
Set up costs the same as 2 inch tape; replace roll price as follows:
- No serial number: 160 rolls minimum @ $19.95/roll
- With serial number: 80 rolls minimum @ $32.95/roll
-
Set up costs the same as 2 inch tape; replace roll price as follows:
-
3 inch tape pricing:
-
Set up costs the same as 2 inch tape; replace roll price as follows:
- No serial number: 54 rolls minimum @ $45.95/roll
- With serial number: 54 roll minimum @ $49.45/roll
-
Set up costs the same as 2 inch tape; replace roll price as follows:
-
Rolls configured to different length:
- Less than 180 feet: add $1.00/roll
- More than 180 feet: same price/lineal foot + $25/order
-
Optional thicker film (.002 inch film; .003 inch total):
- 1 inch wide: Add $2.52/roll ($.014/foot)
- 2 inch wide: Add $5.04/roll ($.028/foot)
- 3 inch wide: no charge (standard = .002 inch film)
- A 10% quantity tolerance applies to all ordered quantities
Recommended Surfaces:
- Corrugated Cardboard
- Paperboard Boxes & Envelopes
- Envelopes-Kraft Paper & Tyvek®
- Metal - Bare & Painted
- Most Plastics
- Wood-- Bare and Painted
- Most Stretchwrap and Shrink Film
- Most Textured Surfaces
- Most Styrofoam
Other Surfaces (fair to good performance):
- Most Porous Surfaces
- Most High Recycled Content (paper, paperboard, corrugated cardboard)
- Some Corrugated Cartons with Moisture Resistant Coatings (wax, etc)
Not Recommended for these surfaces:
- Finished surfaces -- When the tape is removed, 95% of the adhesive will fully transfer to the surface. This product is primarily recommended for disposable packaging.
Ease of Clean Up: Difficult
- When the tape is removed, 95% of the adhesive will transfer to the surface, making the clean up very difficult.
Recommended Cleaners:
- 99% iso-propyl alcohol
- Acetone
- Citrus based household solvents (Orange-sol, Goo-gone, etc)
Product Specifications:
-
Film: Matte Polyester, silicone coated
- 1 inch and 2 inch wide: .001 inch thick
- 3 inch wide: .002 inch thick
- Adhesive: Permanent Acrylic, typical .001 inch thick
- Tape Color: Red (PMS 186C), Blue (PMS 298), Green
-
Imprinted Text & Serial Number:
- Black ink, .25 inch high, all CAPS, repeats every 9 inch
- Serial number can include fixed alphabetic letters
- Perforation: None
- Hidden Pattern: OPENED (may vary from graphic shown)
- Adhesive Residue: HIGH RESIDUE-- about 1% of the adhesive remains on the film; 99% may transfer to the applied surface
- Ratings: ROHS compliant
- Core: 3 inch ID -- compatible with most hand-held dispensers
- Minimum Application Temperature: +40°F
- Service Temperature Range: -40°F to +180°F
|
