Retail Gas Station Security Labels

Product Overview
  • Protect Your Gas Dispensers from Tampering
  • Protect Your Customer's Credit Card Info
  • Comply with PCI Mandates

Our non-residue security labels are proven-in-use as an effective tool to combat tampering at gasoline dispensers and credit card readers.

When removed, the security label shows the words VOID OPEN in the label film.

  1. Apply to access hatches and doors, to indicate if credit card skimming equipment has been inserted inside the gas dispenser.
  2. Apply to the dispenser credit card reader to provide visual authentication that a 'skimmer overlay' is not present*
  3. Apply to inside POS terminals to provide visual authentication that a 'skimmer overlay' is not present*

When removed, the security labels do not leave any adhesive residue on the gas dispenser surface. So there is no messy adhesive and no time-consuming clean up.

Our non-residue labels for gas stations also feature two unique anti-counterfeiting features to combat fake substitutions:

  • a printed watermark that is visible with the naked eye; the watermark also fluoresces when exposed to black light
  • the hidden VOID OPENED pattern fluoresces when exposed to black light.

This is a one-time use product, which is suitable for outdoor applications.

If your station uses Wayne dispensers with heavily-textured plastic access panels, also consider the optional affixing pads.

* NOTE: If a skimmer overlay is installed, the security label will NOT be visible (or may be missing). If the label was removed and affixed to the skimmer, the label will show the VOID OPENED message.

Discount Pricing for Verified Retail Gas Stations

Many gasoline retailers qualify to purchase our Specialty Retail Gasoline security labels, which are shown at the discounted pricing in Section B.

Complete the RETAIL GASOLINE MARKETER PROFILE (see section E below) to determine if you qualify to purchase our Specialty Retail Gasoline security labels.We will confirm if you qualify within 1 business day. Or call us to discuss.

Quality Products Combat Tampering

Our security labels for gasoline dispensers are proven-in-use in thousands of retail gas stations since 2007.

Fast Service

Most of our gas dispenser labels (both stock and branded custom) are available for EXPRESS SERVICE. Order by 2PM EST and the labels ship the same day.

Increased Security

We check to confirm that our specialty retail gas security labels are only shipped to validated retail locations or authorized distribution centers.

All of our gasoline dispenser labels have a unique serial number. We track and record the serial numbers shipped to each customer location. For increased security, your security protocol should include recording the serial number and confirming the serial number as the labels are replaced.

Our gas station labels include two unique anti-counterfeiting features (which are not available on competitive labels):

  1. a printed watermark in the center of the label, which is visible with the naked eye and also fluoresces when exposed to black light.
  2. Without removing the label, the hidden VOID OPENED pattern will fluoresce when exposed to black light

A custom imprint offers more security. As an option, we can create your own custom imprint. We maintain an imprint registry to assure no other company purchases labels with your custom imprint.

Convenient Online Shopping

For immediate service, you can purchase the stock non-residue labels, which are available in rolls of 250 or 1000 labels. Use your credit card to order by 2pm EST and the product ships the same day. Please call us for the password to order the Specialty on-line.

Troubleshooting Guide

If the tamper evident feature is not working to your satisfaction, please review the Security Label Trouble Shooting Guide for suggestions. Or give us a call.

Developments to Increase Payment Security at Retail Gas Stations

DeSantis Signs Bill Increasing Gas Pump Security to Deter Credit Card Skimmers (June 2021) – By January 1, 2022, Florida retailers must include pressure-sensitive security tape, physical locks with unique keys, an alarm system and devices to let customers use contactless payment methods.

https://www.wtxl.com/news/local-news/desantis-signs-bill-increasing-gas-pump-security-to-deter-credit-card-skimmers


Gas Station EMV Liability Shift (June 2021) – As of April 2021, the financial liability for card fraud perpetrated at automated fuel dispensers and other sites will fall on any merchant who isn't using EMV-enabled chip readers for card transactions.

https://www.chargebackgurus.com/blog/gas-station-emv-liability-shift

Warning to Counterfeiters

If NovaVision is requested to produce custom security products or branded packaging, we require proof to substantiate that you are authorized to purchase that product. We independently verify your contact information and legitimacy. If you are not authorized to purchase the product, your contact information may be provided to law enforcement authorities without further notice. NovaVision cooperates with all local, state, federal and international law enforcement agencies to catch and prosecute fraudulent purchases and counterfeiting.

Counterfeiting is illegal and is defined as any attempt to copy an original with the intent to defraud. It is illegal to purchase a fake identification product, an unauthorized custom hologram, an unauthorized duplicate security label, or counterfeit packaging which uses a copyrighted brand name or logo. Further, in the USA, legislation is pending to expand the criminal law so that federal prosecutors will have an easier time prosecuting counterfeiters that manufacture bogus product labels and packaging.

A) Stock Non-Residue Gas Pump Security Labels

Installation Instructions
  1. Clean the Surface -- The surface must be clean and dry. If needed for improved adhesion, use iso-propyl alcohol (minimum 90%) to clean contaminants from the surface. Dry surface with a clean paper towel before affixing the label.
  2. Application Temperature --When applied, the surface temperature must be greater than +20F. Use supplemental heating for lower temperatures if needed to assure the initial adhesion is sufficient.
  3. Apply seals on all access hatches and doors. Affix the label so a minimum of 1 inch label length is on each surface (see diagrams below):Hatch and Door Diagram
  4. If your station uses Wayne dispensers with the heavily-textured plastic access panels, we also recommend using the optional Affixing Pads (see product listing below).
Recommended Security Procedures
  1. Store unused seals in a locked container with restricted access.
  2. Log the Serial Number, Date & Time of application, Operator Name and Dispenser Number.
  3. Inspect seals daily for tampering, damage or counterfeits.
  4. If seal is broken, tampered, missing or suspected counterfeit, shut down the affected dispenser and contact your Fraud Department.
  5. Replace seals daily or after any maintenance.

XSG155-36RESN, 2.875 inch x 0.5 inch

Gas Pump Security Seal

Our stock non-residue security labels are sold in rolls of 250 and 1000 labels. All labels include a unique serial number (pre-assigned) in black ink.

To qualify for our Specialty Retail Gas Security Labels (in section B below), please register using the RETAIL GASOLINE MARKETER PROFILE (see section D below). The labels (#4 to #8) in Section B are priced lower and have more unique designs and colors.

Or you can skip the registration process and purchase our stock non residue label using the BUY NOW buttons in this section:

See Video

Buy Now Code: XSG155-36RESN-250 (Roll of 250 Labels)

Buy Now Code: XSG155-36RESN (Roll of 1,000 Labels)

Pricing Information (excludes shipping)
Qty Rolls $/Roll Total
250 1 (Roll of 250) $45.36 $45.36
1,000 1 (Roll of 1,000) $162 $162
3,000 3 (Rolls of 1,000) $135 $405
5,000 5 (Rolls of 1,000) Call Call
Product Specifications
Product Code
  • XSG155-36RESN-250
  • XSG155-36RESN
Size 2.875 inch x 0.5 inch
Material Polyester Film (2 mils thick)
Color Red, matte finish
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

B) Specialty Retail Gas Security Labels

Our Specialty Retail Gas Security Labels are only available to retail gas stations which we can verify are legitimate. These labels (#2 to #6) are also priced lower than our stock label (#1) shown above.

To qualify to purchase our Specialty Retail Gas Security Labels, please register using the RETAIL GASOLINE MARKETER PROFILE (see Section D below), or...... give us a call.

Installation Instructions
  1. Clean the Surface -- The surface must be clean and dry. If needed for improved adhesion, use iso-propyl alcohol (minimum 90%) to clean contaminants from the surface. Dry surface with a clean paper towel before affixing the label.
  2. Application Temperature --When applied, the surface temperature must be greater than +20F. Use supplemental heating for lower temperatures if needed to assure the initial adhesion is sufficient.
  3. Apply seals on all access hatches and doors. Affix the label so a minimum of 1 inch label length is on each surface (see diagrams below):Hatch and Door Diagram
  4. If your station uses Wayne dispensers with the heavily-textured plastic access panels, we also recommend using the optional Affixing Pads (see product listing below).
Recommended Security Procedures
  1. Store unused seals in a locked container with restricted access.
  2. Log the Serial Number, Date & Time of application, Operator Name and Dispenser Number.
  3. Inspect seals daily for tampering, damage or counterfeits.
  4. If seal is broken, tampered, missing or suspected counterfeit, shut down the affected dispenser and contact your Fraud Department.
  5. Replace seals daily or after any maintenance.

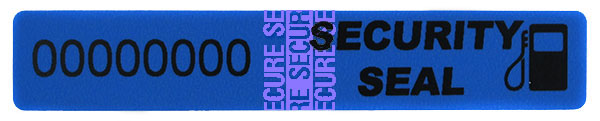

NVG-SGD-074P, 2.875 inch x 0.5 inch, with center perforation

Gas Pump Security Seal

Pricing Information
Qty Rolls $/Roll Total
1,000 1 (Roll of 1,000) $96.12 $96.12
10,000 10 (Rolls of 1,000) $93.96 $939.60
25,000 25 (Rolls of 1,000) Call Call
Product Specifications
Product Code NVG-SGD-074P
Size 2.875 inch x 0.5 inch
Material Polyester Film (2 mils thick)
Color Blue, matte finish
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

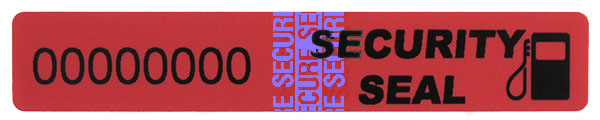

NVG-SGD-010P-1000, 2.875 inch x 0.5 inch, with center perforation

Gas Pump Security Seal

Pricing Information
Qty Rolls $/Roll Total
1,000 1 (Roll of 1,000) $96.12 $96.12
10,000 10 (Rolls of 1,000) $93.96 $939.60
25,000 25 (Rolls of 1,000) Call Call
Product Specifications
Product Code NVG-SGD-010P-1000
Size 2.875 inch x 0.5 inch
Material Polyester Film (2 mils thick)
Color Red, matte finish
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

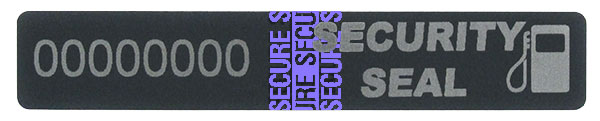

NVG-SGD-017P, 2.875 inch x 0.5 inch, with center perforaton

Gas Pump Security Seal

Pricing Information
Qty Rolls $/Roll Total
1,000 1 (Roll of 1,000) $96.12 $96.12
10,000 10 (Rolls of 1,000) $93.96 $939.60
25,000 25 (Rolls of 1,000) Call Call
Product Specifications
Product Code
  • NVG-SGD-017P (Roll of 1000 labels)
Size 2.875 inch x 0.5 inch
Material Polyester Film (2 mils thick)
Color Black, matte finish
Custom Imprint Unique Serial Number (Silver Ink)
Tamper Evidence Non-residue "VOID OPEN"

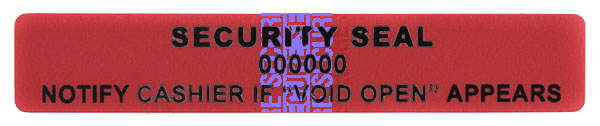

NVG-SGD-076P, 2.875 inch x 0.5 inch, with center perforation

Gas Pump Security Seal

Pricing Information
Qty Rolls $/Roll Total
250 1 (Roll of 250) $43.20 $43.20
500 2 (Roll of 250) $34.56 $69.12
1,000 1 (Roll of 1,000) $96.12 $96.12
10,000 10 (Rolls of 1,000) $93.96 $939.60
25,000 25 (Rolls of 1,000) Call Call
Product Specifications
Product Code
  • NVG-SGD-076P-250 (Roll of 250 Labels)
  • NVG-SGD-076P-1000 (Roll of 1000 Labels)
Size 2.875 inch x 0.5 inch
Material Polyester Film (2 mils thick)
Color Red, matte finish
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

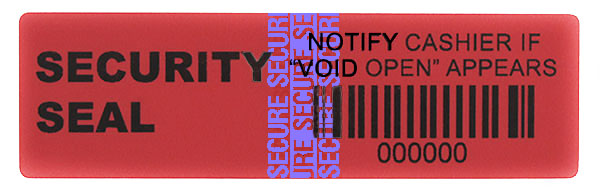

NVG-SGD-077, 3.375 inch x 1.0 inch

Gas Pump Security Seal

Pricing Information
Qty Rolls $/Roll Total
250 1 (Roll of 250) $45.90 $45.90
500 2 (Roll of 250) $36.72 $73.44
1,000 1 (Roll of 1,000) $140.40 $140.40
10,000 10 (Rolls of 1,000) $135.00 $1,350.00
25,000 25 (Rolls of 1,000) Call Call
Product Specifications
Product Code
  • NVG-SGD-077-250 (Roll of 250 Labels)
  • NVG-SGD-077-1000 (Roll of 1000 Labels)
Size 3.375 inch x 1.0 inch
Material Polyester Film (2 mils thick)
Color Red, matte finish
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

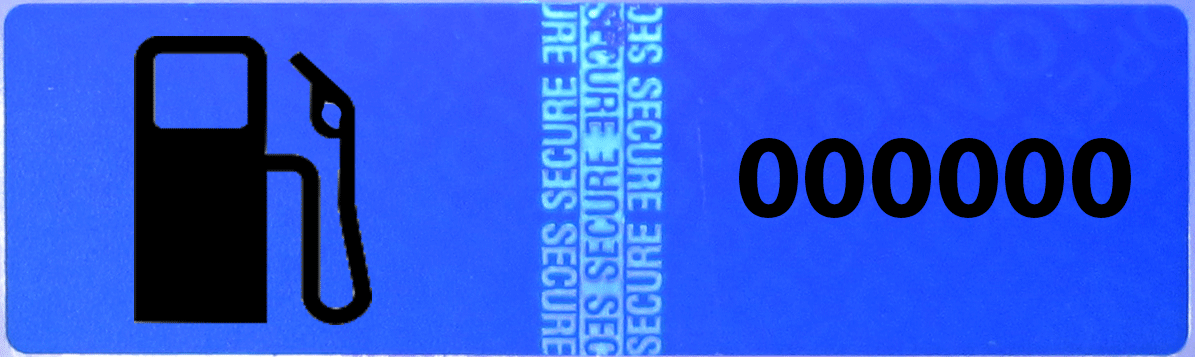

SSG21-48-UV, 3.375 inch x 1 inch

Gas Pump Security Seal

Red: SSG21-48RE-UV
Blue: SSG21-48BL-UV

See Video

Label Size: 3.375 in x 1.0 in
Pricing Formula: $150 Per Order + $0.16 Per Label

Pricing Information
100 1,000 5,000 10,000
$166 $310 $950 Call
Product Specifications
Size 3.375 inch x 1.0 inch
Material Polyester Film (2 mils thick)
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

SSG21-160-UV, 2.875 inch x 0.75 inch

Gas Pump Security Seal

Red: SSG21-160RE-UV
Blue: SSG21-160BL-UV

See Video

Label Size: 2.875 in x 0.75 in
Pricing Formula: $150 Per Order + $0.09 Per Label

Pricing Information
100 1,000 5,000 10,000
$159 $240 $600 Call
Product Specifications
Size 2.875 inch x 0.75 inch
Material Polyester Film (2 mils thick)
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

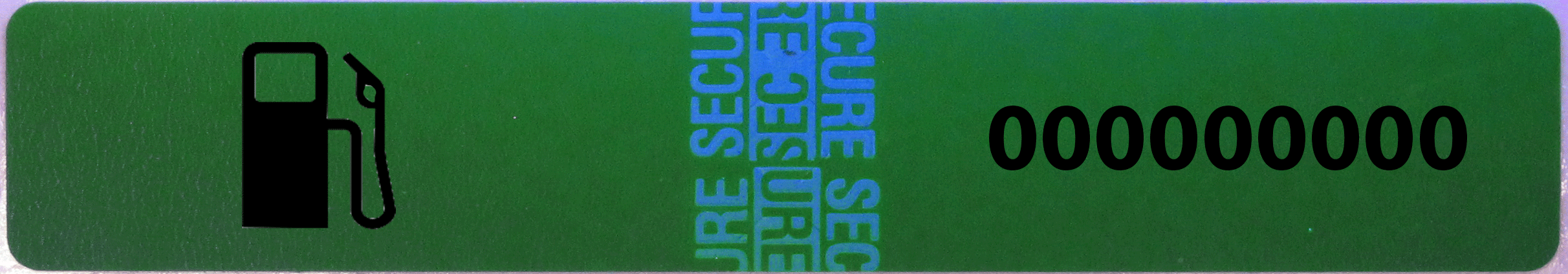

SSG21-36GNP-UV, 2.875 inch x 0.5 inch, with center perforation

Gas Pump Security Seal

Green: SSG21-36GNP-UV

See Video

Label Size: 2.875 inch x 0.5 in
Pricing Formula: $150 Per Order + $0.09 Per Label

Pricing Information
100 1,000 5,000 10,000
$159 $240 $600 Call
Product Specifications
Size 2.875 inch x 0.5 inch
Material Polyester Film (2 mils thick)
Custom Imprint Unique Serial Number (Black Ink)
Tamper Evidence Non-residue "VOID OPEN"

C) Stock Affixing Pads for Gas Pump Security Labels

Installation Instructions
  1. Confirm the Surface - If used on powder coated metal, test in a low visibility area first. The high strength adhesive may remove the painted surface if the paint bond is marginal.
  2. Clean the Surface - The surface must be clean and dry. Use isopropyl alcohol to clean any contaminants from the surface. Dry the surface with a clean paper towel before affixing the label.
  3. Application Temperature -The ideal temperature to apply is between 70°F and 100°F. To accelerate adhesive curing and build strength quickly, use supplemental heat up to 130°F for 1 minute. If applied at temperatures less than 70°F, use supplemental heat to assure the initial adhesion is sufficient.
  4. Cleaning Adhesive Residue - If the affixing pad is removed, it will reveal the hidden security message in the film and leave adhesive residue on the surface. The adhesive residue can be removed with 99% isopropyl alcohol. Keep clear of any ignition sources when using flammable solvents.

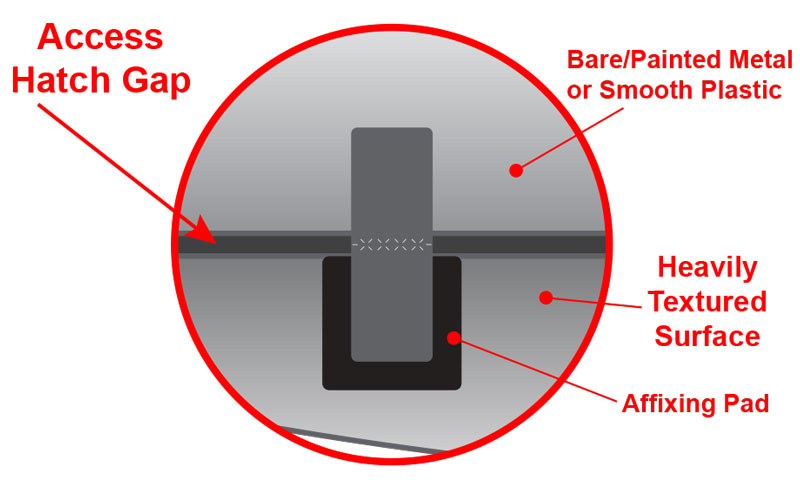

Single Affixing Pad Installation

Single Affixing Pad Installation

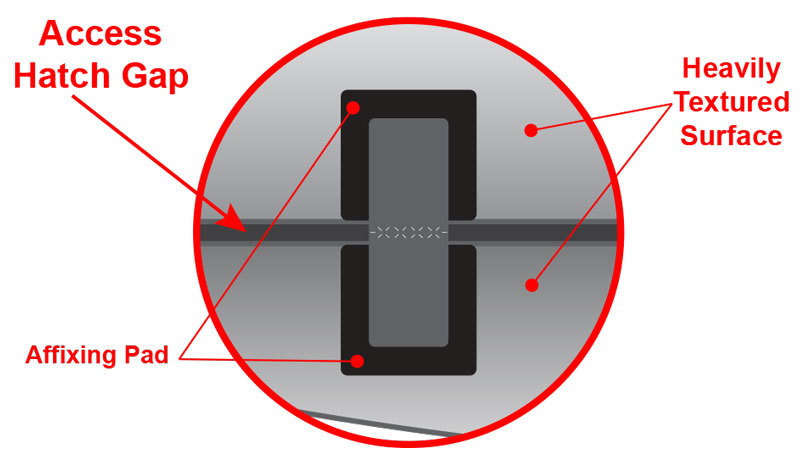

Double Affixing Pad Installation

Double Affixing Pad Installation

XS122-186BK-10

Gas Pump Security Seal

$2.70 Per Pack of 10 Affixing Pads

Affixing pads are an optional companion product for use with our non-residue security labels. The affixing pad is positioned on the target surface first, which provides a more compatible surface for the non-residue label. The non-residue label is applied onto the affixing pad, which helps to solve some issues for difficult surfaces:

  1. For low energy surfaces (such as smooth plastic, textured plastic, powder-coated paint, etc.) apply an affixing pad to increase the performance of the tamper evident feature.
  2. For high energy surfaces (such as bare stainless steel, PVC plastic, etc.) apply an affixing pad to extend the time duration for non-residue performance.

Leave the affixing pads in place for repeated use and replace the non-residue security labels according to your security protocol.

Most notably, in the retail gas market, the "Wayne" dispenser panel features a highly textured plastic surface, which may impair the tampering performance of the stock security labels. Although our stock non-residue security labels are proven-in-use with the Wayne dispensers, using affixing pads on the textured surface improves the tampering performance of the standard security label by making it more foolproof.

The affixing pad is also tamper evident. If removed, it will leave a tamper message (VOID OPENED) as adhesive residue on the surface and in the label film.

See Video

Buy Now Code: XS122-186BK-10 (Pack of 10) - $2.70 per pack

Product Specifications
Product Code XS122-186BK-10
Size 2 in x 2 in
Material Polyester Film (2 mils thick)
Adhesive Type High Strength Acrylic Adhesive (4 mils thick)
Service Temperature -40F to +200F
Minimum Application Temperature: +50F
Color Black, matte finish
Tamper Evidence "VOID OPENED" (Leaves Adhesive Residue)
Recommended Surfaces
  • Heavy textured surfaces
  • Textured plastic surfaces
  • Textured powder coated metal

D) Blocker Dots

Blocker Dots are a device to physically obstruct the application of an 'overlay' skimmer on the dispenser credit card reader or a POS Term​inal.

The standard blocker dot is black polycarbonate plastic with a high strength adhesive. Each dot is laser etched with a unique pre-assigned serial number. These dots are not tamper evident. The standard dot is sold in packages of 24 units.

For added security:

  • The blocker dots can also be custom laser-etched with your custom text, logo and serial number
  • The blocker dots can be used with a companion hologram label or security label

Guidelines To Detect Tampering on your POS terminal or credit card reader:

  1. Record the original serial numbers and confirm the numbers when the blocker dot or security label is replaced
  2. Confirm daily if the blocker dot is missing, not visible, or has a different serial number
  3. Confirm daily If the companion security label is missing, not visible, has a different serial number or shows evidence of tampering.

Application Photos

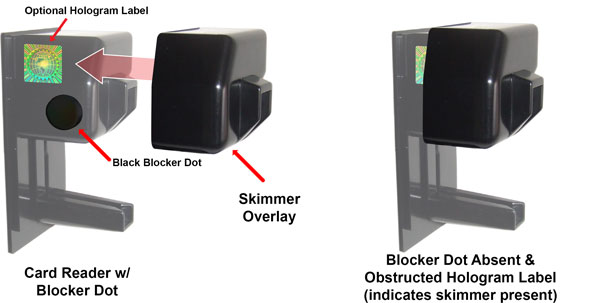

Black Blocker Dot Application

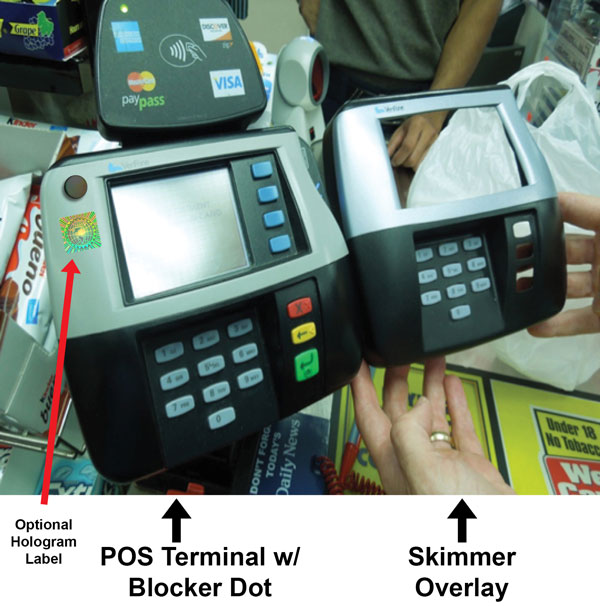

Black Blocker Dot POS Application

Custom Pricing
  • Art work prep: add $35 for logo or graphic
    • No charge for text or serial number
  • Production set up: add $75/order
  • Ready to ship: 3 weeks
Specifications
Material Polycarbonate, black
Dimensions .55 inch circle, typical 0.17 inch thick
Adhesive Solvent acrylic, typical .002 inch thick
Minimum Application Temperature +50F
Unique Serial Number Pre-assigned on stock product
Packaging 24 dots/package
Installation Guide

1. Applying Blocker Dots

  • Dispenser Credit Card Reader – Apply 1 or 2 Blocker Dots – one of each side of the credit card reader.
  • POS Terminal – Apply 1 or 2 Blocker Dots in different locations on the top face of the terminal. The Blocker Dots should be applied to a flat or convex (raised) surface of the reader

2. When the Blocker Dot is applied, the surface of the credit card reader must be a MINIMUM of +50°F and clean and dry. Use 90% Isopropyl Alcohol to clean the surface, then dry with a paper towel.

3. Slowly remove the Blocker Dot from its backing. Minimize touching the adhesive with your fingers during the affixing process.

4. After affixing, to assure a good adhesive bond to the clean surface, firmly press on the Blocker Dot for a minimum of 2 seconds.

XBD-01K-SN

Gas Pump Security Seal

Buy Now Code: XBD-01K-SN (Pack of 24 dots)

Pricing Information
Qty Packs $/Dot $/Pack
24 1 $1.70 $40.80
48 2 $1.60 $38.40
96 4 $1.50 $36.00
240 10 Call Call

E) Retail Gasoline Marketer Profile

To qualify to purchase our Specialty Retail Gas Security Labels (at the discount pricing shown above in section B), please complete the information below.

After we receive your profile information, please allow 1 business day for us to verify your station location and affiliations. We only sell the Specialty Labels to verified retail gas stations. We will contact you by phone or email to confirm your eligibility to buy the labels in Section B above.

Can't Find What You're Looking For? Try our Application Search
For Questions and Ordering Information, Please Contact:
Hillary Crago Hillary Crago
Sales & Customer Service
(800) 336-6636 ext 4254
email: hcrago@novavisioninc.com
Mary Ritchey Mary Ritchey
Sales & Customer Service
(800) 336-6636 ext 4255
email: maritchey@novavisioninc.com
Questions? Need Help?
