Secure-Guard Plus Security Labels

Product Overview



Security Labels Tamper Pattern

Our non-residue security labels provide both security and the added convenience to avoid leaving (or cleaning up) a sticky adhesive residue. After application to the surface, when removed the labels indicate tamper evidence by revealing the hidden message "OPENED VOID" in the label, but without leaving any adhesive residue on the surface.

Available in both stock and custom versions, our Secure-Guard Plus is our premium non-residue label, which offers improved performance compared to most competitive non-residue security labels:

  • Shows improved tamper evidence for low-energy surfaces such as textured plastics, powder-coated paint, plastic bags, 'Gorilla' glass on cell phones, etc.
  • Provides more versatile performance for a broader range of surfaces
  • Offers more security with added options for customizing the label including custom colors, graphics and customizing the hidden VOID pattern
  • All non-residue labels (ours and competitive labels) have limitations and may leave an adhesive residue in some circumstances. We suggest reading the following sections on “Choosing a Non Residue Label” and "Limitations of Non-Residue Labels" to help you select the best product for your application.

Also, we recommend requesting our Free Samples first to ensure the labels are suitable for your project. If our SecureGuard Plus labels do not meet your project needs, also consider stock SecureGuard and our premium Metallic Secure-ID.

Choosing a Non Residue Label

We offer multiple constructions of non-residue labels, which allows you to select the label which best fits your application.

The following table summarizes and compares the relative performance and features of our non-residue label products.

Product Name (click name for more info) SecureGuard SecureGuard SecureGuard Plus Secure-ID
Product Code SSG21 SSG155 SSG39B SSG52

A) Tampering & Non Residue Performance for Typical Surface Applications
Painted Metal - Smooth Good Good Good Good
Powder-Coated Paint Good Better Good Good
Painted Metal - Textured Good Better Good Good
Plastic - Smooth Good Good Good Good
Plastic - Textured Good Better Good Good
Heavy Textured Surfaces Fair (1) Better Good Good
Bare Metal Good Fair (2) Good Good
Glass Good Good Good Good
Cardboard, Paperboard, Paper Good (3) Fair (3) Good (3) Good (3)
Aircraft - metal hatches & doors Good Good Good Good
Aircraft - interior plastic Good Better Good Good
Wood -- Painted or Varnished Good (4) Good (4) Good (4) Good (4)
Polyethylene Plastic Bags Fair (5) Better (5) Good (5) Good (5)
B) Typical Non Residue Performance at +70°F
NOTE: exposure to temperatures over 120°F or less than 0°F may reduce the length of time for the 'non-residue' feature
Most Non Porous Surfaces including....
- Painted Metal
- Smooth Plastic
- Paint & Varnish Wood (1)
3 months 2 months 3 months 6 months
Other Special Surfaces....
- Bare Metal 2 weeks (2) 1 week (2) 1 week (2) 4 weeks (2)
- Glass 3 months 1 week (2) 1 week (2) 4 weeks (2)
- PVC Plastic 2 hours (2) 2 hours (2) 2 hours (2) 2 hours (2)
C) Number of Stock Label Sizes over 30 over 30 over 10 over 5
D) Optional Custom Label Size & Shape YES YES YES YES
E) Stock Background Colors Red, Blue, Green, Black Red, Blue, Green, Black Red, Blue, Green, Black Blue, Gold, Green, Magenta
F) Fade Resistance of Stock Background Color 6 months 6 months 6 months over 10 years (8)
G) Custom Background Colors NO NO YES NO
H) Optional Custom "VOID" Pattern NO NO YES YES
I). Optional Alternate Adhesives NO NO NO YES
J) Minimum Application Temperature (6) +25°F +10°F +10°F +25°F
K) Service Temperature Range (7) -40°F to +200°F -40°F to +200°F -40°F to +200°F -40°F to +200°F

Footnotes:
(1) Using our polyester affixing pad under the label improves the performance of the tamper evident feature to 'GOOD'
(2) Using our polyester affixing pad under the label improves non residue performance to 'GOOD' (3 months)
(3) If the surface structure is weak, the label may tear the surface without revealing the hidden VOID message in the label; test to confirm suitability
(4) If applied to painted or varnished wood, the adhesive may remove some or all of the finish, Test in an inconspicuous area first
(5) To improve the performance for tamper evidence, clean the surface with 90% ISO propyl alcohol before affixing the label
(6) Typical minimum surface temperature to assure label will show tamper evidence after affixing to the surface
(7) Typical temperature range where label will show tamper evidence when removed
(8) Background colors are diffracted from white light (not printed with inks)

Limitations of Non Residue Labels

Typically for most surfaces, when our SecureGuard labels are removed they will not leave adhesive residue for 3 months. However, the actual length of time for non-residue performance varies based on the surface. Please review the list of surfaces in the section “Choosing a Non-Residue Label” before selecting your label. Then request our free samples to test the labels before you order.

After affixing to the surface, the length of time for non-residue performance may be shortened if the label is exposed to temperatures above +120°F or below +30°F

To minimize adhesive residue on the surface, remove the label using a 180 degree peel angle.

If there is adhesive residue, it can be cleaned with a citrus-based household cleaner (Goo-gone, Orange Sol, etc) or isopropyl alcohol.

Our optional affixing pads may solve some issues for difficult surfaces:

  1. For low energy surfaces (smooth plastic, textured plastics, powder coated paint, etc) apply an affixing pad which will increase the tamper evident feature.
  2. For high energy surfaces (bare stainless steel, PVC plastic, etc.) apply an affixing pad which will extend the time duration for non residue performance.

For the customized imprint, our standard process is to print custom text, logos and serial numbers on the surface of the label using thermal transfer resin ribbons. The thermal inks are durable to mechanical abrasion, scratching and most liquids and are suitable for most applications. However, thermal printed inks can be removed with certain solvents such as gasoline, alcohol, or lotions containing alcohol. As an added option, we also offer UV-cured ink jet (black ink only) imprints which are more durable.

Choosing a Size and Shape

If wrapping around the edge of a box, a narrow and long rectangle works best.

To block a mobile phone camera, the .5 x 1.875 inch label is compatible with most phones.

We can produce custom sizes and shapes. Please give us a call.

Retail Gasoline Applications

We produce custom security labels for several major gasoline brands and petroleum industry groups. These labels are typically used to detect tampering on gasoline dispenser doors and hatches. If you are a gasoline retailer, click on the link below to confirm if you qualify for special pricing and offers.

Special Offers For Retail Gasoline

Troubleshooting Guide

If the non-residue security label is not working to your satisfaction, please review the Security Label Trouble Shooting Guide for suggestions. Or give us a call.

Warning to Counterfeiters

If NovaVision is requested to produce custom security products or branded packaging, we require proof to substantiate that you are authorized to purchase that product. We independently verify your contact information and legitimacy. If you are not authorized to purchase the product, your contact information may be provided to law enforcement authorities without further notice. NovaVision cooperates with all local, state, federal and international law enforcement agencies to catch and prosecute fraudulent purchases and counterfeiting.

Counterfeiting is illegal and is defined as any attempt to copy an original with the intent to defraud. It is illegal to purchase a fake identification product, an unauthorized custom hologram, an unauthorized duplicate security label, or counterfeit packaging which uses a copyrighted brand name or logo. Further, in the USA, legislation is pending to expand the criminal law so that federal prosecutors will have an easier time prosecuting counterfeiters that manufacture bogus product labels and packaging.

Learn More

Specifications and Intended Use

Please see the Specifications and Intended Use for more details.

Troubleshooting Guide

If the tamper evident feature is not working to your satisfaction, please review the Security Label Troubleshooting Guide for suggestions, or give us a call.

Product Returns and Claims

See Ordering Info for more details.

Stock Non Residue Secure Guard Plus Labels

These labels are available for immediate shipment -- place your order by 2pm and your order ships the same day. Stock non-residue security labels are sold in rolls of 250 and 1000 labels. All stock sizes include a unique serial number (pre-assigned) in black ink:

Specifications
Material Polyester
Thickness 0.002 in (2 mil)
Color Red, Blue
Stock Imprint Unique Serial Number
Stock Imprint Color Black
Residue Level Non-Residue
Tamper Pattern "OPEN VOID"
Shipping Same Day If Ordered By 2pm

Non Residue Security Label, Red, 0.55 in Diameter, Circle, XSG39B-01RESN

Tamper Evident Security Label

Label Size: 0.55 in Diameter

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $99 $93 $85 Call Add to Cart

Non Residue Security Label, Red, 1.875 x 0.5 in, Rectangle, XSG39B-35RESN

Tamper Evident Security Label

Label Size: 1.875 in x 0.5 in

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $138 $116 $99 Call Add to Cart
Roll of 250 $36 Add to Cart

Non Residue Security Label, Red, 2.875 x 0.5 in, Rectangle, XSG39B-36RESN

Tamper Evident Security Label

Label Size: 2.875 in x 0.5 in

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $165 $138 $121 Call Add to Cart
Roll of 250 $46 Add to Cart

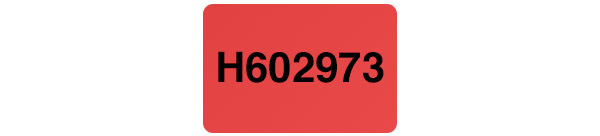

Non Residue Security Label, Red, 1.5 x 1 in, Rectangle, XSG39B-11RESN

Tamper Evident Security Label

Label Size: 1.5 in x 1 in

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $165 $138 $121 Call Add to Cart
Roll of 250 $46 Add to Cart

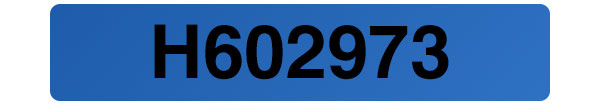

Non Residue Security Label, Blue, 3.875 x 0.75 in, Rectangle, XSG39B-517BLSN

Tamper Evident Security Label

Label Size: 3.875 in x 0.75 in

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $220 $187 $176 Call Add to Cart
Roll of 250 $61 Add to Cart

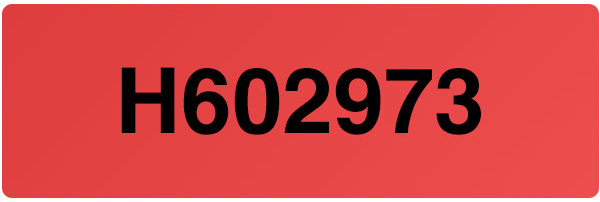

Non Residue Security Label, Red, 4.625 x 1.5 in, Rectangle, XSG39B-47RESN

Tamper Evident Security Label

Label Size: 4.625 in x 1.5 in

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $330 $308 $297 Call Add to Cart
Roll of 250 $88 Add to Cart

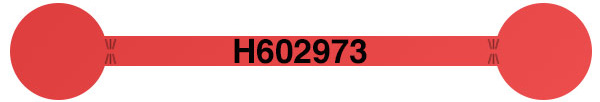

Non Residue Security Label, Red, 4.5 x 0.75 in, Barbell, XSG39B-50REPSN

Tamper Evident Security Label

Label Size: 4.5 in x 0.75 in

Perforated at Each End

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $268 $228 $214 Call Add to Cart
Roll of 250 $75 Add to Cart

Non Residue Security Label, Red, 2.875 x 0.5 in, Barbell, XSG39B-58REPSN

Tamper Evident Security Label

Label Size: 2.875 in x 0.5 in

Perforated at Each End

Pricing Information
1+ 3+ 5+ 10+
Roll of 1,000 $165 $138 $121 Call Add to Cart
Roll of 250 $46 Add to Cart

Custom Imprinted Non Residue Secure Guard Plus Labels

A unique custom imprint is required for these SecureGuard Plus labels must include a unique custom imprint. For security purposes, this product is not sold blank.

The pricing and quantities shown are for typical order quantities. We will produce the exact quantity you order using the pricing formula shown. No minimum order quantity. Custom sizes also available (allow 2 weeks) in all colors.

Specifications
Material Polyester Film (2 Mils Thick)
Background Color Red, Blue
Standard Imprint Color Black (Included)
Custom Imprint
  • Custom Text (included)
  • Unique Serial Number (included)
  • Optional Logos and Optional Colored Imprint (see details below)
Residue Level Non-Residue
Tamper Pattern "OPEN VOID"
Min Order Qty None
Ready To Ship 1 Week

Pricing below includes:

  • Custom text (black ink)
  • Unique serial number (black ink)

Pricing below excludes:

  • Shipping fees
  • Custom logo fees
  • Custom text color fees
  • Custom background colors
  • Custom VOID pattern

Custom Imprinted Non Residue Security Label, Red, 0.55 in Diameter, Circle, SSG39B-01RE

Tamper Evident Security Label

Design Online Red: SSG39B-01RE

Label Size: 0.55 in Diameter

Pricing Formula: $165/Order + $0.06/Label

Pricing Information
100 1,000 5,000 10,000
$171 $225 $465 Call

Custom Imprinted Non Residue Security Label, 1.875 x 0.5 in, Rectangle, SSG39-35

Tamper Evident Security Label

Design Online Red: SSG39B-35RE Design Online Blue: SSG39-35BL

Label Size: 1.875 in x 0.5 in

Pricing Formula: $165/Order + $0.077/Label

Pricing Information
100 1,000 5,000 10,000
$172.70 $242 $550 Call

Custom Imprinted Non Residue Security Label, Red, 2.875 x 0.5 in, Rectangle, SSG39B-36RE

Tamper Evident Security Label

Design Online Red: SSG39B-36RE

Label Size: 2.875 in x 0.5 in

Pricing Formula: $165/Order + $0.099/Label

Pricing Information
100 1,000 5,000 10,000
$174.90 $264 $660 Call

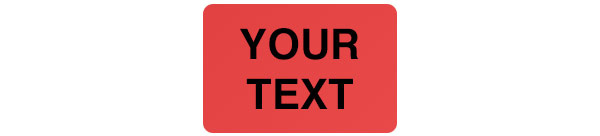

Custom Imprinted Non Residue Security Label, Red, 1.5 x 1 in, Rectangle, SSG39B-11RE

Tamper Evident Security Label

Design Online Red: SSG39B-11RE

Label Size: 1.5 in x 1 in

Pricing Formula: $165/Order + $0.099/Label

Pricing Information
100 1,000 5,000 10,000
$174.90 $264 $660 Call

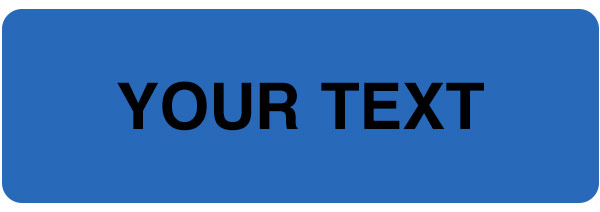

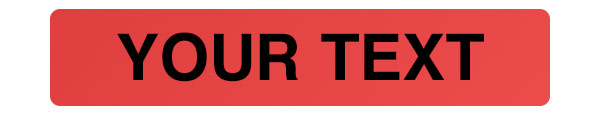

Custom Imprinted Non Residue Security Label, 3.875 x 0.75 in, Rectangle, SSG39-37

Tamper Evident Security Label

Design Online Red: SSG39B-37RE
Design Online Blue: SSG39-37BL

Label Size: 3.875 in x 0.75 in

Pricing Formula: $165/Order + $0.154/Label

Pricing Information
100 1,000 5,000 10,000
$180.40 $319 $935 Call

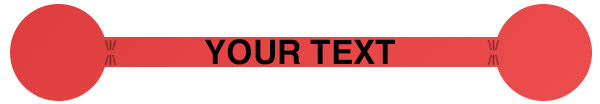

Custom Imprinted Non Residue Security Label, Red, 4.5 x 0.75 in, Barbell, SSG39B-50

Tamper Evident Security Label

Design Online Red: SSG39B-50REP Design Online Black: SSG39-50KP
While Supplies Last

Label Size: 4.5 in x 0.75 in

Pricing Formula: $165/Order + $0.286/Label

Perforated At Each End

Pricing Information
100 1,000 5,000 10,000
$193.60 $451 $1,595 Call

Custom Imprinted Non Residue Security Label, Red, 2.875 x 0.5 in, Barbell, SSG39B-58REP

Tamper Evident Security Label

Design Online Red: SSG39B-58REP

Label Size: 2.875 in x 0.5 in

Pricing Formula: $165/Order + $0.099/Label

Perforated At Each End

Pricing Information
100 1,000 5,000 10,000
$174.90 $264 $660 Call

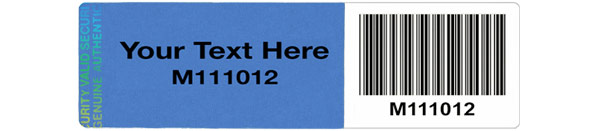

Custom Imprinted Non Residue Security Label, 3.37 x 1 in, Rectangle, HSG39-48BL-W

Tamper Evident Security Label

Design Online Blue: HSG39-48BL-W

Label Size: 3.37 in x 1 in

Pricing Formula: $165/Order + $0.20/Label

Features a transparent holographic stripe for added security

Pricing Information
100 1,000 5,000 10,000
$185 $365 $1,165 Call

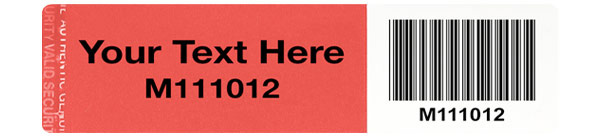

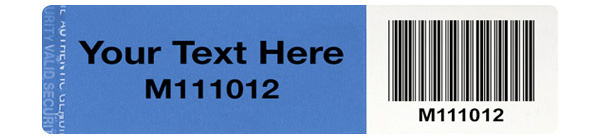

Custom Imprinted Non Residue Security Label, 4 x 1 in, Rectangle, HSG39-29-W

Tamper Evident Security Label

Tamper Evident Security Label

Design Online Red: HSG39-29RE-W
Design Online Blue: HSG39-29BL-W

Label Size: 4 in x 1 in

Pricing Formula: $165/Order + $0.22/Label

Features a transparent holographic stripe for added security

Pricing Information
100 1,000 5,000 10,000
$187 $385 $1,265 Call

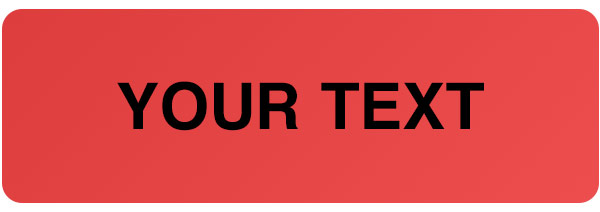

Custom Imprinted Non Residue Security Label, 4.625 x 1.5 in, Rectangle, SSG39-47

Tamper Evident Security Label

Tamper Evident Security Label

Design Online Red: SSG39-47RE
Design Online Blue: SSG39B-47BL

Label Size: 4.625 in x 1.5 in

Pricing Formula: $165/Order + $0.25/Label

Pricing Information
100 1,000 5,000 10,000
$190 $415 $1,415 Call

Option Pricing:

Custom Logo/Graphic:
(Inks Printed on Film Surface)
$35.00 (One-Time Expense)
Colored Imprint:
(Inks Printed On Film Surface)
  • Black Inks: No additional Charge
  • Colors (Red, White, Blue, Silver): Add $.05/label
Custom Label Size
  • Production Set Up: Add $200/Order
  • Custom Die Cutter: Add $395 (One-Time Expense)
  • Standard Service: 2 Weeks
Custom Background Color:
(Inks Printed on Film Surface)
  • Production Set Up (Stock Ink Color): Add $500/Order
  • Production Set Up (Custom Ink Color): Add $600/Order
  • Labels: Add $0.03/Label
  • Min Order Qty: 5,000 Labels
  • Standard Service: 2 - 3 Weeks
Custom Background Color:
(Inks Printed Under the Film)
  • Production Set Up (Stock Ink Color): Add $1,200/Order
  • Production Set Up (Custom Ink Color): Add $1,300/Order
  • Labels: Add $0.05/Label
  • Min Order Qty: 15,000 Labels
  • Standard Service: 3 Weeks
Custom VOID Pattern Same as Custom Background Color (Under the Film) + Add $100
Can't Find What You're Looking For? Try our Application Search
For Questions and Ordering Information, Please Contact:
Brian Cramer Brian Cramer
Sales & Customer Service
(800) 336-6636 ext 4211
email: bcramer@novavisioninc.com
Bill Kudzia Bill Kudzia
Sales & Customer Service
(800) 336-6636 ext 4232
email: bkudzia@novavisioninc.com
Questions? Need Help?
