Tamper Evident Asset Labels

Product Overview

Our tamper evident asset labels feature a high strength adhesive. When imprinted, the custom text/logo and serial number are laminated with clear film for added durability.

These security labels are compatile with a wide variety of surfaces. The adhesive thickness (typically .005 inch) also makes this label compatible with most textured surfaces.

After affixing, the label is very difficult to remove due to the high strength adhesive, which makes this label ideal for asset labels. Other applications include covering fasteners on equipment or aircraft, security access hatches to calibration settings and electrical boxes, etc.

When removed, the VOID/OPENED pattern will be left on the surface and in the film -- leaving some (low) adhesive residue on the surface.

Our stock colors are red and white and with two stock sizes. Custom product is also available in other sizes and colors (including metallic silver).

Silver Metallic Security Seal LS126 Asset Labels (White)

Silver Metallic Security Seal LS126 Asset Labels (Red)

Intended use

  1. Intended Use: Security Asset Labels
  2. Recommended Surfaces: Unfinished or painted metal or plastic

Application Instructions

  1. Confirm Surface Compatibility:
    • For painted or finished surfaces, test in an inconspicuous location first. The high strength adhesive may remove the paint and/or finish on some surfaces if the finish coating is not bonded securely to the material.
    • Silver metallic labels may not be suitable for printed circuit boards (or other electrical applications). The silver metallic layer is conductive and may cause issues if in direct contact with the circuitry.
    • If used on aircraft to cover fasteners, fill the void under the label with a suitable filler to prevent the trapped air under the label from expanding at higher elevations. Trapped air may cause bubbles in the film, which may give a false indication of tampering.
  2. Clean the Surface -- The surface must be clean and dry. Use iso-propyl alcohol to clean contaminants from the surface. Dry surface with a clean paper towel before affixing the label.
  3. Application Temperature --The minimum application temperature is 50F. The ideal temperature to apply is between 70F and 100F. To accelerate adhesive curing and build strength quickly, use supplemental heat up to 130F for 1 minute.
  4. Removing Adhesive Residue -- The adhesive residue can be removed with 99% iso-propyl alcohol. Keep clear of any ignition sources when using flammable solvents.

Specifications

  • Base Label Film: Clear Polyester Film (0.002 in thick)
  • Hidden Tamper Evident Pattern:
    • Colored Ink Labels: OPENED/VOID
    • Silver or Colored metallic labels: VOID
  • Adhesive: permanent acrylic, typical .005 inch thick
  • Lamination -- Custom imprinted text/logo and serial number are laminated with clear polyester film (typical 0.001 in)
  • Minimum application temperature: 50F (ideal temperature is 70F to 100F)
  • Service Temperature: After application, the service temperature is -40F to +300F.

Typical Label Layouts

The following layouts are typical. Use these as a guide with your custom text. Or we can produce custom layouts too.

When ordering, specify one of the bar code symbologies noted below. The bar code symbology may change the label layout and size. Code 128 is the most dense (fits the smallest label) and can contain the most information.

Bar codes are the most readable with a white background. Our stock red background or other light colors are usually acceptable too. Bar Codes on other background colors (especially blue or gray) are not recommended due to bar code readability issues.

bar code labels

LAYOUT #1

Symbology: Code 128
Human Readable Number: Arial, Bold, 17 pt (maximum of 10 characters)

bar code labels

LAYOUT #2

Symbology: Code 128
Human Readable Number: Arial, Bold, 12 pt (maximum 10 characters)
Line #1 Text: Arial 9pt

bar code labels

LAYOUT #3

Symbology: Code 128
Human Readable Number: Arial, Bold, 12 pt (maximum 10 characters)
Line #1 Text: Arial 9pt
Line #2 Text: Arial 8pt

Warning to Counterfeiters

If NovaVision is requested to produce custom security products or branded packaging, we require proof to substantiate that you are authorized to purchase that product. We independently verify your contact information and legitimacy. If you are not authorized to purchase the product, your contact information may be provided to law enforcement authorities without further notice. NovaVision cooperates with all local, state, federal and international law enforcement agencies to catch and prosecute fraudulent purchases and counterfeiting.

Counterfeiting is illegal and is defined as any attempt to copy an original with the intent to defraud. It is illegal to purchase a fake identification product, an unauthorized custom hologram, an unauthorized duplicate security label, or counterfeit packaging which uses a copyrighted brand name or logo. Further, in the USA, legislation is pending to expand the criminal law so that federal prosecutors will have an easier time prosecuting counterfeiters that manufacture bogus product labels and packaging.

Learn More

Troubleshooting Guide

If the tamper evident feature is not working to your satisfaction, please review the Security Label Troubleshooting Guide for suggestions, or give us a call.

Product Returns and Claims

See Ordering Info for more details.

Stock Security Asset Labels

The products in this section are available for immediate shipment -- order by 2pm and your order ships the same day.

  • Sold in rolls of 250 labels.
  • For quantities of 10,000 or more, please call for pricing discounts.

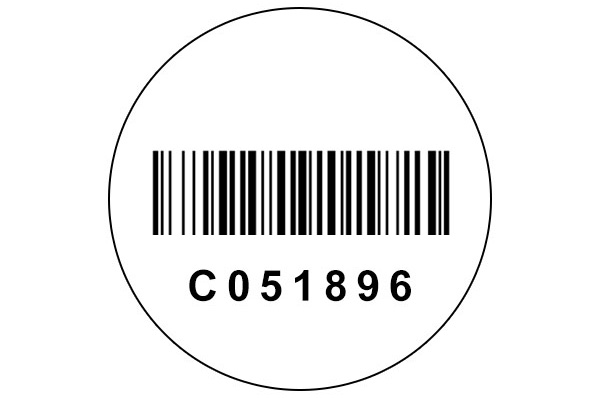

Asset Security Label w/ Barcode, White, Circle, 0.95 Diameter, Roll of 250

Silver Metallic Security Label

Label Size: 0.95 in Diameter

Quantity: 250 Labels/Roll
Price: $75/Roll
Serial Number: Unique pre-assigned number with matching bar code
Barcode Symbology: Code 128
Tamper Pattern: OPENED VOID

Add to Cart Code: LS126-06WHSN-250

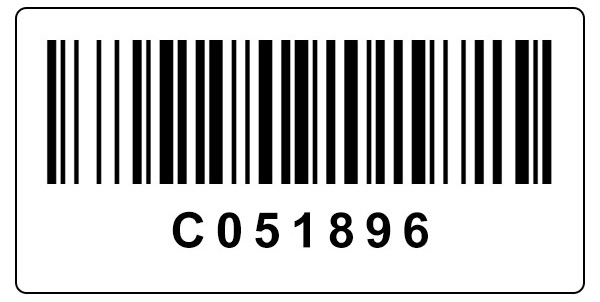

Asset Security Label w/ Barcode, White, Rectangle, 1.5 x 0.75 in, Roll of 250

Silver Metallic Security Label

Label Size: 1.5 x 0.75 in

Quantity: 250 Labels/Roll
Price: $85/Roll
Serial Number: Unique pre-assigned number with matching bar code
Barcode Symbology: Code 128
Tamper Pattern: OPENED VOID

Add to Cart Code: LS126-26WHSN-250

Custom Imprinted Asset Security Labels

Our stock asset labels can be customized with your text, logo or serial number, which improves security. We only offer a 1 color imprint. If using a matching bar code, we only recommend a black imprint.

Pricing shown includes your custom text imprint in black ink, but excludes shipping. Please call for quantity discounts as shown below.

More options are shown below.

  • Ready To Ship: 2 Weeks
  • Min Order Qty: NONE
Custom Pricing Options
Options 1 x 1.5 in or Smaller

Larger Sizes

Logo or graphic (one-time fee) Add $35 Add $35
Colored Imprint (Red, Green, Blue) only available for labels without bar codes Add $0.05/Label Call
Consecutive Serial Numbers with Matching Bar Code (black imprint only) Add $0.05/Label Call

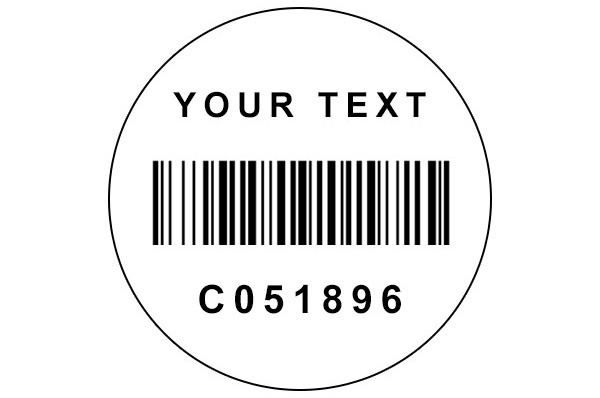

Custom Imprinted Asset Security Label w/ Barcode, Circle, 0.95 Diameter, LS126-06

Tamper Evident Security Label
Code: LS126-06WH

Tamper Evident Security Label
Code: LS126-06RE

Available Colors: Red or White
Pricing Formula:
$200/Order + $0.30/Label + Options (from above)

White: LS126-06WH
Red: LS126-06RE

Typical Pricing: Text with serial numbers and bar code in black ink
100 1,000 5,000 10,000
$235 $550 $1950 Call

Custom Imprinted Asset Security Label w/ Barcode, Rectangle, 1.5 x 0.75 in, LS126-26

Tamper Evident Security Label
Code: LS126-26WH

Tamper Evident Security Label
Code: LS126-26RE

Available Colors: Red or White
Pricing Formula: $200/Order + $0.35/Label + Options (from above)

White: LS126-26WH
Red: LS126-26RE

Typical Pricing: Text with serial numbers and bar code in black ink
100 1,000 5,000 10,000
$240 $600 $2200 Call

For other customizations not listed above please call.
