Barcode Labels

Product Overview

NovaVision offers a variety of affordable barcode labels in stock and custom configurations:

  • Standard Barcode Labels are intended for indoor or outdoor applications. The film includes an outdoor grade adhesive.
  • Laminated Barcode Labels are the most durable and are designed to last for years. Typical applications include equipment labels, machine asset tags, rental equipment, etc.

Our custom barcode labels are available with no minimum order quantity. Discounts apply to orders of 50,000 labels or more, please call for pricing. Prices shown exclude shipping, customs and import fees.

We offer 3 stock sizes; custom sizes are available.

These barcode labels do not have any security features and they are NOT tamper evident.

Choosing a Barcode Label

All of our white polyester labels (standard or laminated) are suitable for indoor or outdoor applications.

The surface must be clean and dry. Apply when the surface is a minimum +10F. After the label is affixed, the adhesive is rated for temperatures as low as -40F and as high as +200F.

To Optimize Readability

A white background provides the best contrast to read the barcode.

For colored backgrounds, a consistent color is recommended. However some colors will reduce contrast and readability. Avoid printed graphics behind the barcode.

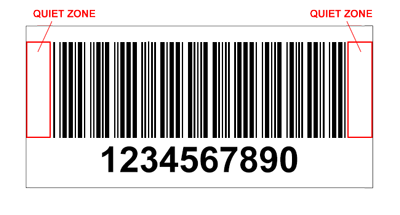

Allow a 'quiet zone' of empty space on both sides (to the left and right) of the vertical bars. Printed borders or graphics to the left and right can cause readability issues. If printing is located in the quiet zone, print a prototype and test for suitability before ordering.

bar code labels

If you require a specific readability grade (such as 'Grade A' readability), advise us of your requirement when you enter your order.

Laminated labels are recommended for equipment labels, machine asset tags, rental equipment, or any other long term application. The clear film lamination protects the bar code from wear and scuffing.

Regarding the width of the barcode relative to the label width

Using digits only will produce the most compact barcode.

For most symbologies, using an even number of digits decreases the bar code width (compared to an odd number of digits).

Using alphabetic characters (rather than digits) increases the barcode width.

The 128 symbology is the most compact barcode and can contain more information, which reduces the barcode width.

Typical Label Layouts

The following layouts are typical. Use these as a guide with your custom text. Or we can produce custom layouts too.

When ordering, specify one of the bar code symbologies noted below. The bar code symbology may change the label layout and size. Code 128 is the most dense (fits the smallest label) and can contain the most information.

bar code labels

LAYOUT #1

Symbology: Full ASCII code 39
Human Readable Number: Arial, Bold, 17 pt (maximum of 10 characters)

bar code labels

LAYOUT #2

Symbology: Full ASCII code 39
Human Readable Number: Arial, Bold, 12 pt (maximum 10 characters)
Line #1 Text: Arial 9pt

bar code labels

LAYOUT #3

Symbology: Full ASCII code 39
Human Readable Number: Arial, Bold, 12 pt (maximum 10 characters)
Line #1 Text: Arial 9pt
Line #2 Text: Arial 8pt

Available Symbologies

The following is a list of available barcode symbologies we can imprint on barcode labels:

  • Full ASCII CODE 39
  • Regular CODE 39
  • CODE 93
  • CODE 128
  • CODABAR
  • PDF 417
  • Interleaved 2 of 5
  • MSI Plessey
  • UPC-a
  • UPC-E
  • EAN/JAN -13
  • EAN/JAN -8
  • 2-digit Supplemental
  • 5-digit Supplemental

Custom Imprinted Barcode Labels

Standard Barcode Labels, Custom Imprinted

bar code labels

Pricing Formula: $100/order + $.02/label

The standard barcode labels are intended for indoor or outdoor applications. The film includes an outdoor grade adhesive. These are not laminated.

Ready to Ship: 1 week

Typical Pricing
1,000 5,000 10,000 20,000
$120 $200 $300 Call
Available Sizes
Product Code Size
S89-MD094 0.50 in x 1.125 in
S89-MD205 0.75 in x 1.625 in
S89-MD023 0.875 in x 1.875 in
Product Specifications
Stock Image: None
Color: White
Material: Polyester, .002 inch thick

Laminated Barcode Labels, Custom Imprinted

bar code labels

Pricing Formula: $200/order + $.03/label

The laminated barcode labels are the most durable and are designed to last for years for indoor or outdoor applications. Typical applications include equipment labels, machine asset tags, rental equipment, etc.

Ready to Ship: 2 weeks (typical)

Typical Pricing
1,000 5,000 10,000 20,000
$230 $350 $500 Call
Available Sizes
Product Code Size
L89-MD745 0.50 in x 1.125 in
L89-MD205 0.75 in x 1.625 in
L89-MD023 0.875 in x 1.875 in
Product Specifications
Stock Image: None
Color: White
Material: Polyester, .002 inch thick, with .001 inch thick clear polyester film overlamination
