High Security Hologram Labels (FIPS)

Product Overview

fips hologram labelsThese high performance hologram labels are designed to meet the security aspects (level 4) of the Federal Information Processing Standards (FIPS140-1, FIPS140-2, etc).

We offer two versions of hologram labels for FIPS compliant security labels and seals:

  • HoloGuard™ holograms are suitable for most conventional surfaces such as bare metal, painted metal, many smooth plastics, etc.
  • UltraGuard™ holograms are our premium FIPS label which is the most versatile label we offer. The robust tamper evident feature is designed for the most difficult surfaces such as low energy plastics, textured surfaces, powder-coated paint, etc.

Our stock high performance labels are available with EXPRESS SERVICE — order by 2pm and the product ships the same day.

HoloGuard™ and UltraGuard™ labels are also available in custom sizes, shapes, and/or with custom hologram images. Please call for more information on customized FIPS labels.

Choosing Your FIPS Hologram Label

  1. HoloGuard™ labels are recommended for conventional surfaces, such as bare/painted metal, smooth plastics, etc.
  2. UltraGuard™ labels are recommended for conventional surfaces and for difficult surfaces such as low energy plastics, textured surfaces, CARC paint, powder-coated paint, etc. This is the best performing tamper evident label we produce.
  3. In the future, if you may change your product suppliers (or use multiple suppliers) or if your product materials/surface may change, we recommend the UltraGuard™ labels.
  4. We offer free samples for testing. We recommend testing prior to placing an order.
  5. Our FIPS security labels are suitable for indoor applications for at least 5 years and outdoor applications for up to 2 years.
  6. The silver metallic holograms may not be suitable for use on printed circuit boards (or other electrical applications). The silver metallic layer is conductive and may cause issues if in direct contact with the circuitry. For these applications, consider a transparent hologram.

Choosing Label Size and Shape

  1. If affixing the label onto a flat surface (no changes in direction as shown in "A"), any label model or any size or shape label is acceptable.
  2. If wrapping the label over an edge (90 degree change in direction as shown in "B") or ledge (180 degree change in direction as shown in "C"), we recommend our HG4 or UG6 products — select a long and narrow rectangle shape. It is important to note that when wrapping over an edge you should maximize the amount of label material on both surfaces opposite the 90 degrees for optimal adhesion. A small label area (as shown in “D”) is not recommended.
  3. It is not recommended to apply a long narrow label parallel to an edge (as shown in “E”).
  4. FIPS Label Edge Application Demonstration

FIPS Overview — Design, Surface Preparation, & Testing

Our high performance holograms include:

  • A stock hologram image to combat counterfeiting.
  • A high strength adhesive, which bonds to most surfaces and resists attack from chemicals or extreme temperatures.
  • A robust tamper evident security feature.
  • The unique serial number (and optional custom imprint) is protected with a clear top lamination for added durability and security.

Cleaning the surface for optimum adhesion is an important aspect of FIPS applications. This applies to passing the initial test and for application of the labels in production.

For optimum adhesion, surfaces must be cleaned with alcohol to remove surface contaminants before affixing the label:

  • Use 90% (or higher) Isopropyl Alcohol
  • Apply alcohol to a clean paper towel and wipe the intended surface to remove contaminants
  • Dry the surface with another clean paper towel (some contaminants will remain on the surface if the alcohol is allowed to air dry)
  • Apply the label to the clean surface

Your FIPS application must be tested by your independent testing lab . We offer free sample labels for testing prior to ordering.

More information about accredited testing companies and standards can be found on the website for National Institute for Science and Technology, Computer Security Resource Center (www.csrc.nist.gov)

Although our FIPS labels have been tested and approved in many applications, please contact us if you have any problems achieving acceptable results with our FIPS labels to pass the independent testing.

If you need contact information for independent testing labs who specialize in FIPS certification, please contact us. We will provide contact info for at least two companies for you to evaluate.

Qualifications for Same Day Service

  1. No changes to the hologram stickers as shown on this page.
  2. Payment with a validated credit card.
  3. Order quantity is below 10,000 stickers

Intended Use of Holograms

Our holograms are designed, tested, and intended for anti-counterfeiting, anti-tampering and promotional applications.

Our holographic products do NOT provide any documented health or medical benefits such as improved balance, sleep, pain-relief, weight loss, smoking cessation, etc.

Our holographic products do NOT provide any documented benefits to improve gas mileage, energy efficiency, cell phone reception, etc.

Our holographic products cannot be programmed to resonate at specific frequencies.

In our opinion, claims of medical benefits or improved machine performance are questionable and scientifically unsupported. Consumers should request an independent study (with blind testing) to verify any such claims and benefits.

We are not aware of any independent studies which validate such claims and benefits. Therefore, we will not intentionally produce holograms for these applications.

Warning to Counterfeiters

If NovaVision is requested to produce custom security products or branded packaging, we require proof to substantiate that you are authorized to purchase that product. We independently verify your contact information and legitimacy. If you are not authorized to purchase the product, your contact information may be provided to law enforcement authorities without further notice. NovaVision cooperates with all local, state, federal and international law enforcement agencies to catch and prosecute fraudulent purchases and counterfeiting.

Counterfeiting is illegal and is defined as any attempt to copy an original with the intent to defraud. It is illegal to purchase a fake identification product, an unauthorized custom hologram, an unauthorized duplicate security label, or counterfeit packaging which uses a copyrighted brand name or logo. Further, in the USA, legislation is pending to expand the criminal law so that federal prosecutors will have an easier time prosecuting counterfeiters that manufacture bogus product labels and packaging.

UltraGuard™ UG6

Our UG6 is available in stock EXPRESS and custom sizes and shapes. It is recommended for flat and multidirectional label applications and all material surfaces.

Specifications
Stock Image: SECURED VOID IF REMOVED, Silver Metallic
Film Thickness: 0.002 inch total (0.001 inch base film + 0.001 inch lamination)
Adhesive Thickness: Typical 0.002 inch
Security Features: Tamper Evident, Serial Numbered, Holographic
Tamper Pattern: Dot Pattern
Serial Numbers: Preassigned, Black Ink
Recommended Surfaces:
  • Plastic or Metal — bare, painted, or textured
  • Powder coated paint
  • Multi-directional Surfaces (up to 180 degree bends in the label)

UltraGuard™ UG6, 0.25 x 0.50 in, Rectangle, XUG6-K222-32SN

hologram stickers

EXPRESS SERVICE Ships same day (must order by 2pm EST)

Pricing Information
  1+ 5+ 10+
Roll of 1000 $690 $620 $560 Add to Cart
Custom Imprinted Labels (0.25 x 0.50 inch)

UG6-K222-32: 0.25 x 0.50 inch Rectangle

FIPS Security Hologram Label

Your custom text/logo with serial number printed in black ink

Pricing Formula: $600/order + $0.50/label

  • No minimum order quantity
  • Pricing shown is for typical order quantities

Pricing Information
1,000 5,000 10,000 25,000
$1,100 $3,100 $5,600 Call

Ready to ship: 1-2 Weeks

Imprint Colors: Black (standard); optional Red, Blue or Green
Artwork Prep Fee (one-time): $35.00
Red, Green or Blue Imprint: add $0.10 / label

UltraGuard™ UG6, 0.25 x 1.25 in, Rectangle, XUG6-K222-33SN

hologram stickers

EXPRESS SERVICE Ships same day (must order by 2pm EST)

Pricing Information
  1+ 5+ 10+
Roll of 1000 $855 $770 $695 Add to Cart
Custom Imprinted Labels (0.25 inch x 1.25 inch)

UG6-K222-33: 0.25 x 1.25 inch Rectangle

FIPS Security Hologram Label

Your custom text/logo with serial number printed in black ink

Pricing Formula: $600/order + $0.65/label

  • No minimum order quantity
  • Pricing shown is for typical order quantities

Pricing Information
1,000 5,000 10,000 25,000
$1,250 $3,850 $7,100 Call

Ready to ship: 1-2 Weeks

Imprint Colors: Black (standard); optional Red, Blue or Green
Artwork Prep Fee (one-time): $35.00
Red, Green or Blue Imprint: add $0.10 / label

UltraGuard™ UG6, 2.0 x 0.75 in, Rectangle, XUG6-K222-60SN

hologram stickers

EXPRESS SERVICE Ships next day (must order by 2pm EST)

View Video

Pricing Information
  1+ 5+ 10+
Roll of 1000 $995 $920 $874 Add to Cart
Roll of 50 $92 $92 $92 Add to Cart
Custom Imprinted Labels (2.0 x 0.75 inch)

UG6-K222-60: 2.0 x 0.75 inch Rectangle

FIPS Security Hologram Label

Your custom text/logo with serial number printed in black ink

Pricing Formula: $600/order + $0.80/label

  • No minimum order quantity
  • Pricing shown is for typical order quantities

Pricing Information
1,000 5,000 10,000 25,000
$1,400 $4,600 $8,600 Call

Ready to ship: 1-2 Weeks

Imprint Colors: Black (standard); optional Red, Blue or Green
Artwork Prep Fee (one-time): $35.00
Red, Green or Blue Imprint: add $0.10 / label

HoloGuard™ G2

The G2 product line is available while supplies last. We are transitioning to the HG4 product line, which is more versatile for multi-directional surface geometries. G2 is only available as an EXPRESS item. If you want a custom printed UltraGuard™ label, see our HG4 product line below.

Specifications
Stock Image: Original Authentic, Silver Metallic
Film Thickness: 0.003 inch total (0.002 inch base film + 0.001 inch lamination)
Adhesive Thickness: Typical 0.001 inch
Security Features: Tamper Evident, Serial Numbered, Holographic
Tamper Pattern: Dot Pattern
Serial Numbers: Preassigned, Black Ink
Recommended Surfaces:
  • Bare metal
  • Painted smooth metal
  • Smooth plastics
  • Flat surfaces

HoloGuard™ G2, 0.25 x 1.25 in, Rectangle, XG2-OA-33SN

hologram stickers

EXPRESS SERVICE Recommended for flat surfaces

Ships same day (must order by 2pm EST)

While Supplies Last

Pricing Information
  1+ 5+ 10+
Roll of 1000 $240 $215 $194 Add to Cart

HoloGuard™ HG4

Our HG4 is available in stock EXPRESS and custom sizes and shapes. It is recommended for flat and multi-directional label applications and all material surfaces.

Specifications
Stock Image: SECURED VOID IF REMOVED, Silver Metallic
Film Thickness: 0.002 inch total (0.001 inch base film + 0.001 inch lamination)
Adhesive Thickness: Typical 0.001 inch
Security Features: Tamper Evident, Serial Numbered, Holographic
Tamper Pattern: Dot Pattern
Serial Numbers: Preassigned, Black Ink
Recommended Surfaces:
  • Bare metal
  • Painted smooth metal
  • Smooth plastics
  • Multi-directional surfaces (up to 180 degree bends in the label)

HoloGuard™ HG4, 0.25 x 0.50 in, Rectangle, XG4-VS-32SN

hologram stickers

EXPRESS SERVICE Ships same day (must order by 2pm EST)

Pricing Information
  1+ 5+ 10+
Roll of 1000 $230 $210 $190 Add to Cart
Custom Imprinted Labels (0.25 x 0.50 inch)

HG4-VS-32: 0.25 x 0.50 inch Rectangle

FIPS Security Hologram Label

Your custom text/logo with serial number printed in black ink

Pricing Formula: $300/order + $.15/label

  • No minimum order quantity
  • Pricing shown is for typical order quantities

Pricing Information
1,000 5,000 10,000 25,000
$450 $1,050 $1,800 Call

Ready to ship: 1-2 Weeks

Imprint Colors: Black (standard); optional Red, Blue or Green
Artwork Prep Fee (one-time): $35.00
Red, Green or Blue Imprint: add $0.10 / label

HoloGuard™ HG4, 0.25 x 1.25 in, Rectangle, XG4-VS-33SN

hologram stickers

EXPRESS SERVICE Ships same day (must order by 2pm EST)

Pricing Information
  1+ 5+ 10+
Roll of 1000 $290 $260 $235 Add to Cart
Custom Imprinted Labels (0.25 x 1.25 inch)

HG4-VS-33: 0.25 x 1.25 inch Rectangle

FIPS Security Hologram Label

Your custom text/logo with serial number printed in black ink

Pricing Formula: $300/order + $0.20/label

  • No minimum order quantity
  • Pricing shown is for typical order quantities

Pricing Information
1,000 5,000 10,000 25,000
$500 $1,300 $2,300 Call

Ready to ship: 1-2 Weeks

Imprint Colors: Black (standard); optional Red, Blue or Green
Artwork Prep Fee (one-time): $35.00
Red, Green or Blue Imprint: add $0.10 / label

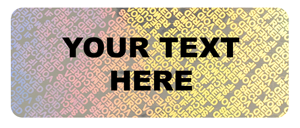

HoloGuard™ HG4, 2.0 x 0.75 in, Rectangle, XG4-VS-60SN

hologram stickers

EXPRESS SERVICE Ships same day (must order by 2pm EST)

Pricing Information
  1+ 5+ 10+
Roll of 1000 $345 $310 $279 Add to Cart
Custom Imprinted Labels (2.0 x 0.75 inch)

HG4-VS-60: 2.0 x 0.75 inch Rectangle

FIPS Security Hologram Label

Your custom text/logo with serial number printed in black ink

Pricing Formula: $300 set up/order + $0.25/label

  • No minimum order quantity
  • Pricing shown is for typical order quantities

Pricing Information
1,000 5,000 10,000 25,000
$550 $1,550 $2,800 Call

Ready to ship: 1-2 Weeks

Imprint Colors: Black (standard); optional Red, Blue or Green
Artwork Prep Fee (one-time): $35.00
Red, Green or Blue Imprint: add $0.10 / label
