Overview

Plastic seals are used to mechanically secure a variety of containers. Typical applications include truck doors, trailer doors, railcar doors, totes, valves, coin bags, inner drum bags, crime scene evidence storage bags, and any container with a hasp or loops.

Heavy Duty Plastic Seal

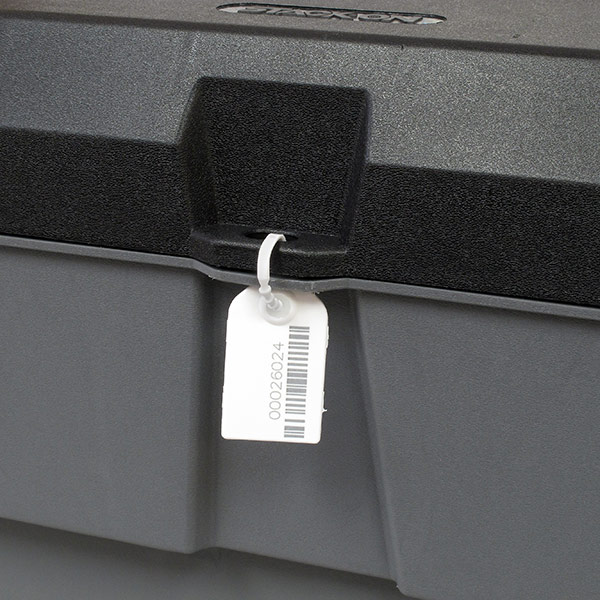

mechanical security seal, typical application

Choosing A Plastic Seal

All seals are suitable for indoor or outdoor applications.

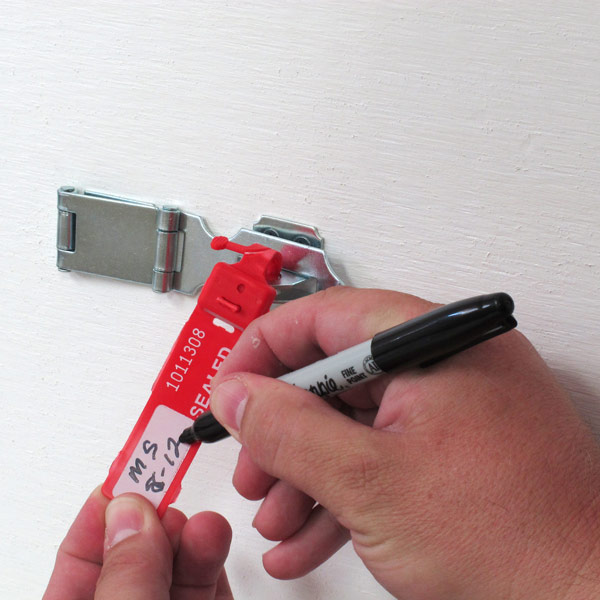

All seals have unique serial numbers. Record the serial number for added security.

Some seals have bar codes for added convenience in recording the serial number. Bar codes improve productivity and accuracy for larger projects.

Some aperatures and hasp openings have small openings. Confirm the opening size and compare to the 'minimum hasp opening' for the selected seal.

Seals with shorter strap lengths cost less. Use the shortest length possible to reduce cost.

When a longer strap length is needed, reference the 'usable' length for each seal. The maximum usable length for our plastic seals is 17 inches. For longer lengths, please see our cable seals, which are available in lengths up to 54 inches.

Some seals have a higher break strength to prevent accidental breakage.

Seals with a low break strength (50 lb or less) can often be removed manually without special tools. If needed, a household scissors or wire cutter can cut the seal.

Some seals include a tear off tab for ease in removing the seal. The tear off tab also self destructs the seal so it cannot be re-used.

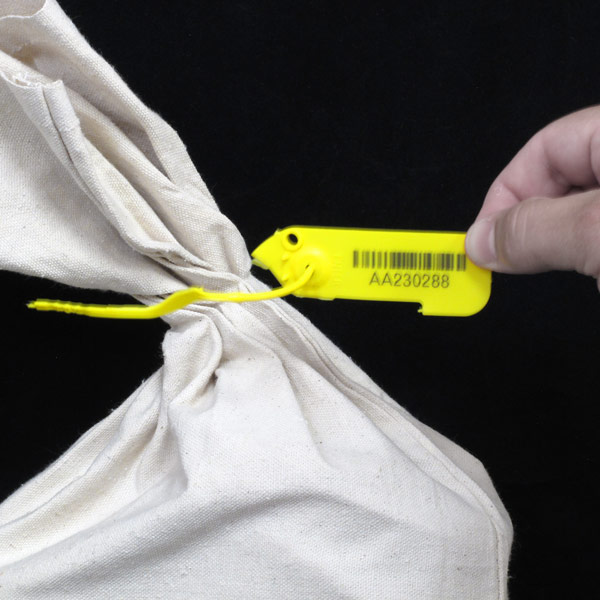

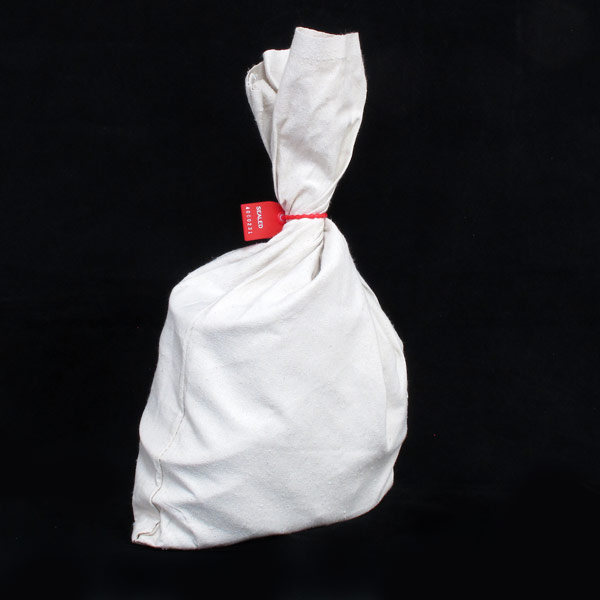

Some seals have 'nail grips' to help secure the top opening of a bag.

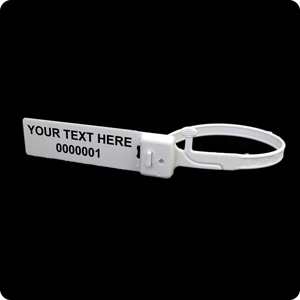

Custom imprinted seals offer more security.

Adjustable plastic seals are intended to indicate tampering for low and medium security applications. For higher security projects requiring a barrier seal, please see our selection of cable seals.

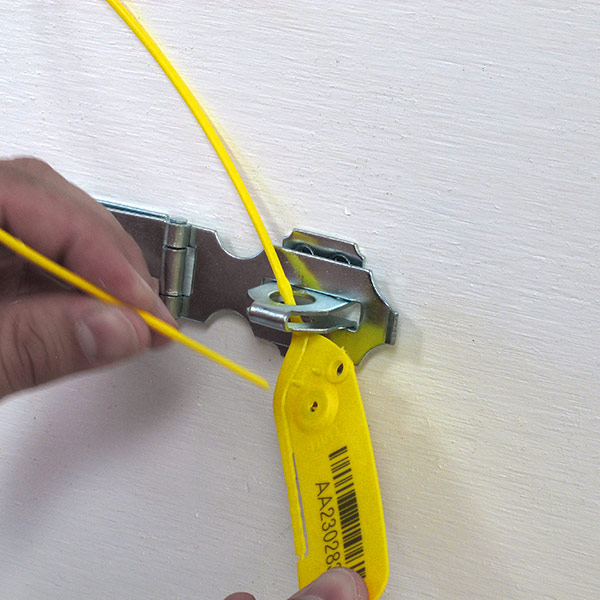

Installing the Seals

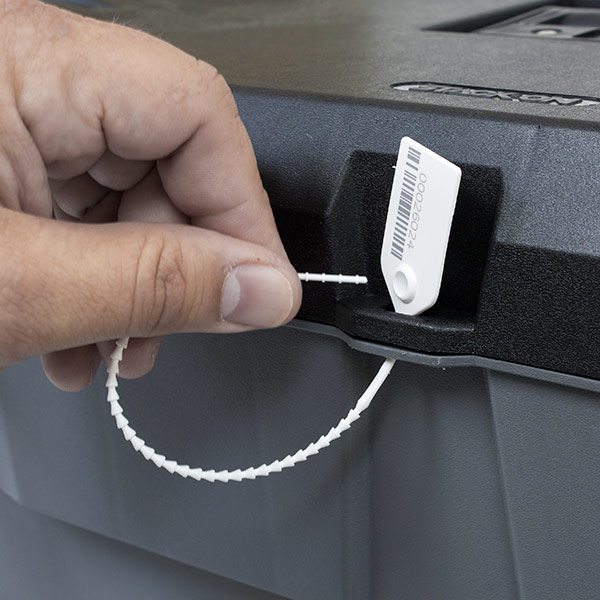

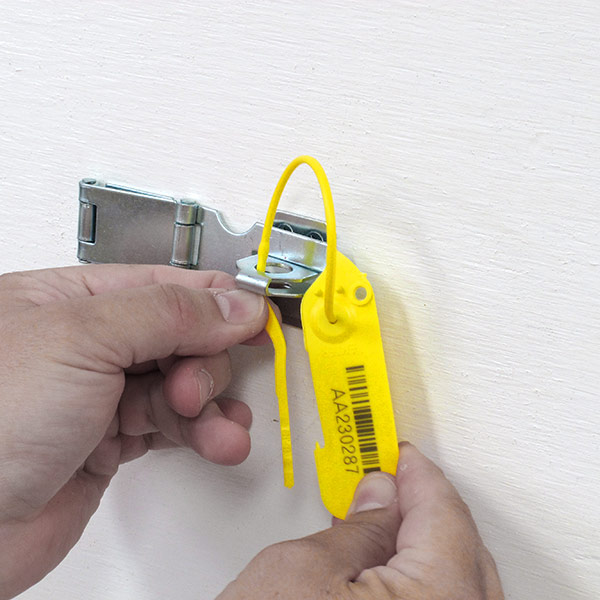

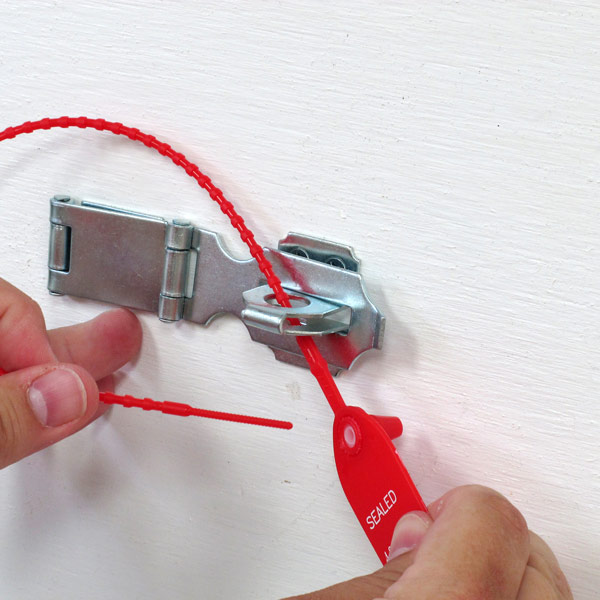

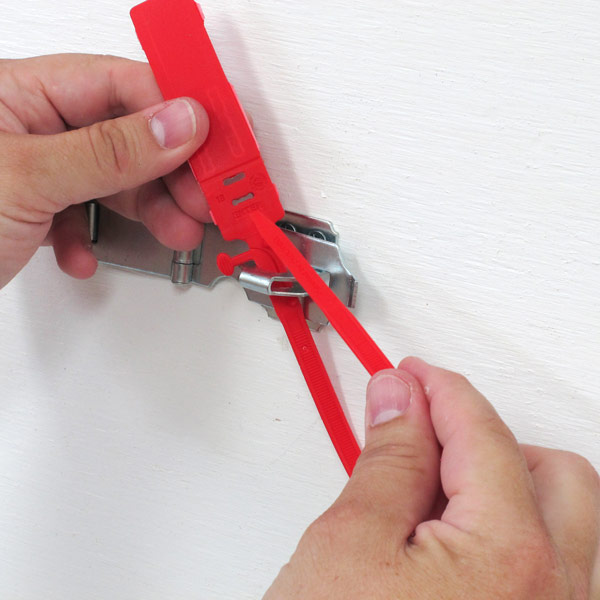

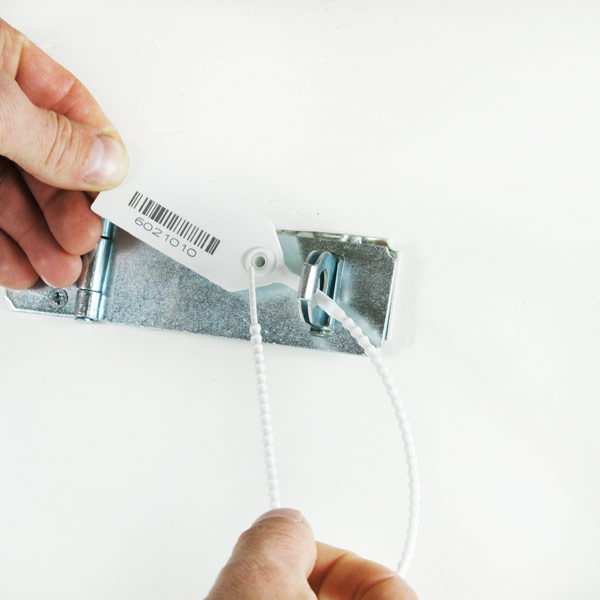

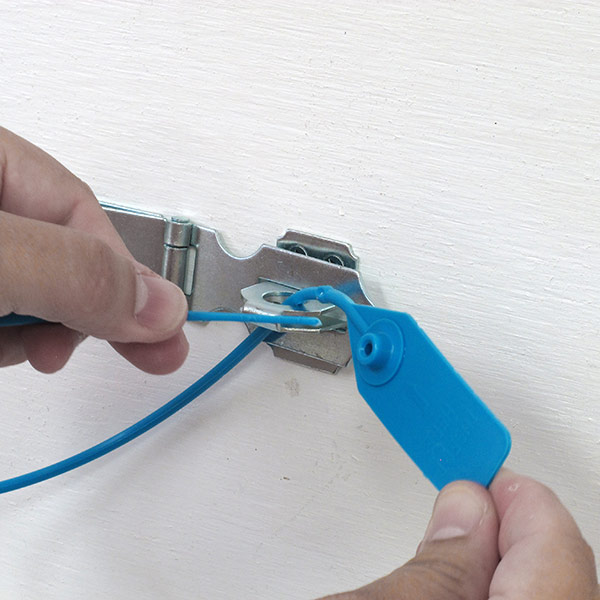

Thread the plastic strap into the self-locking mechanism.

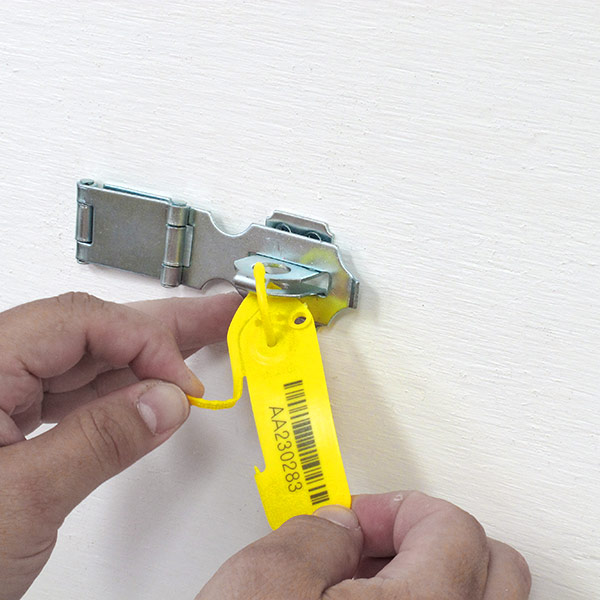

Pull the strap end for a snug fit (minimize slack in the strap)

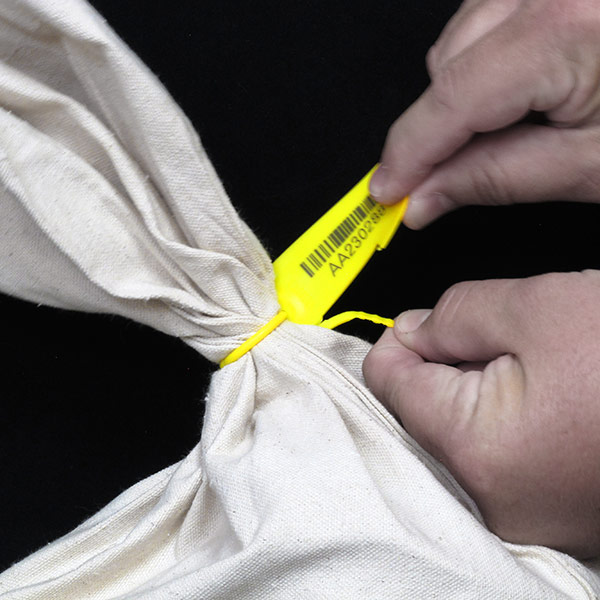

Removing the Seals

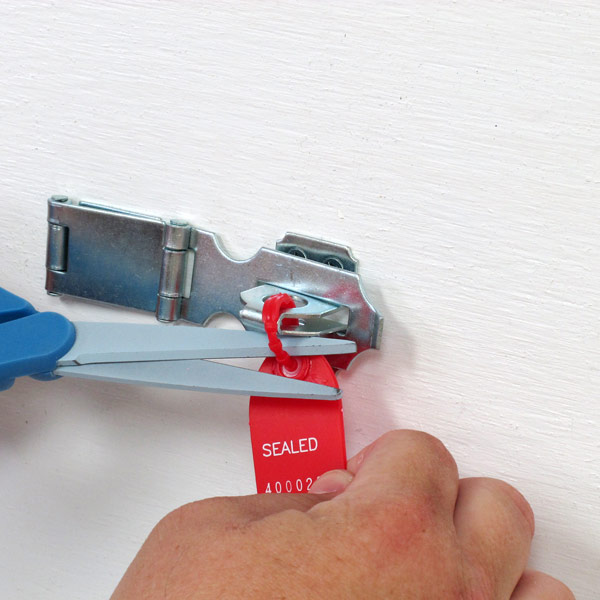

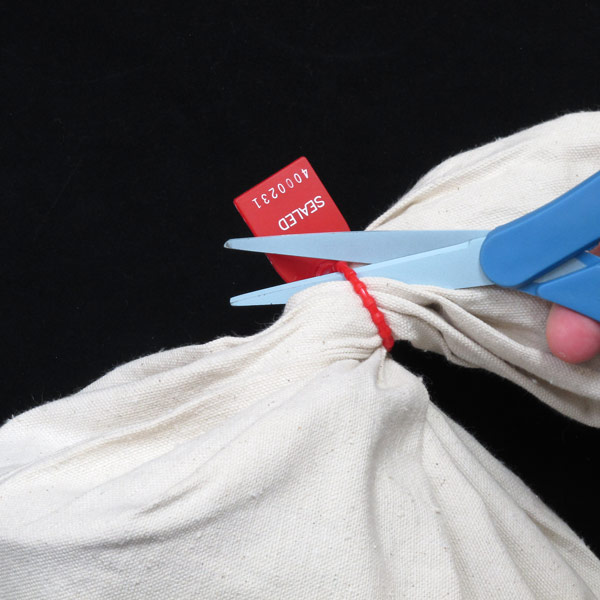

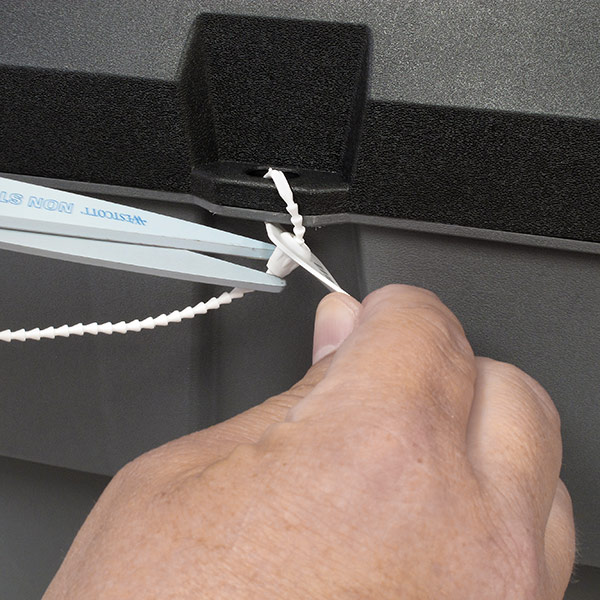

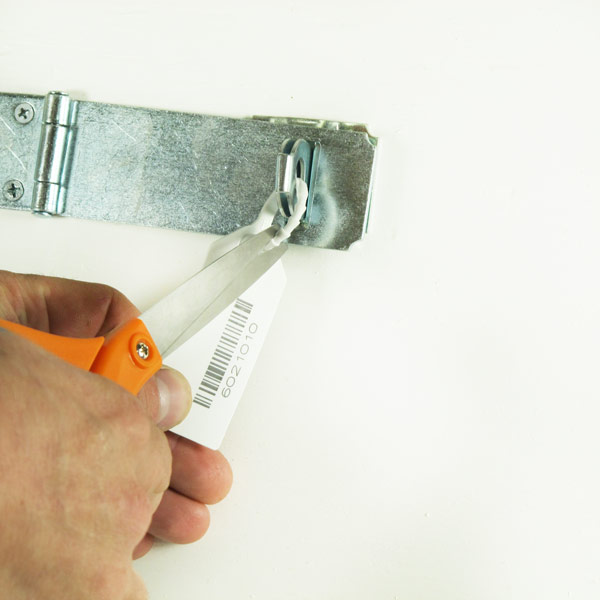

Use scissors or a wire cutter to cut the strap, or....
Firmly tug on the strap (if the break strength is 50lbs or less), or....

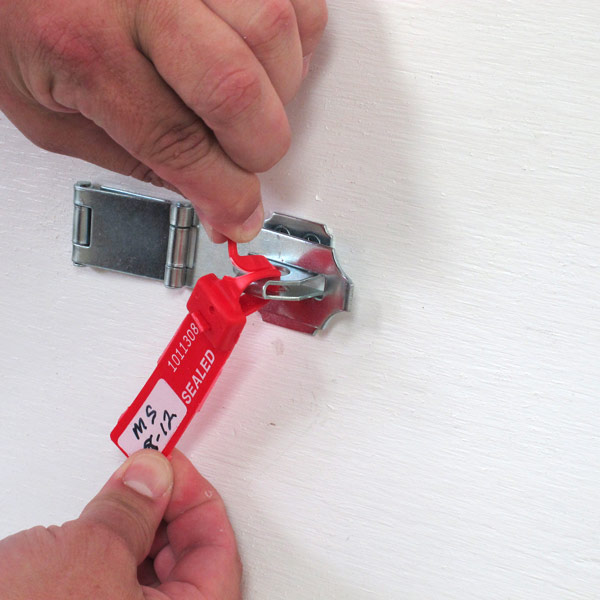

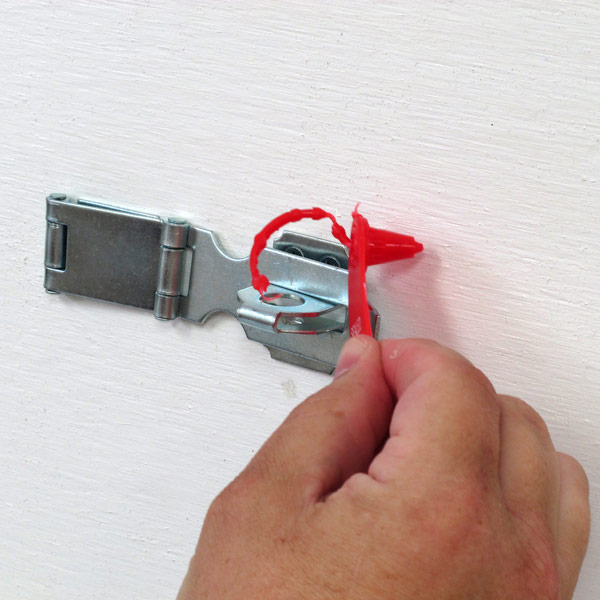

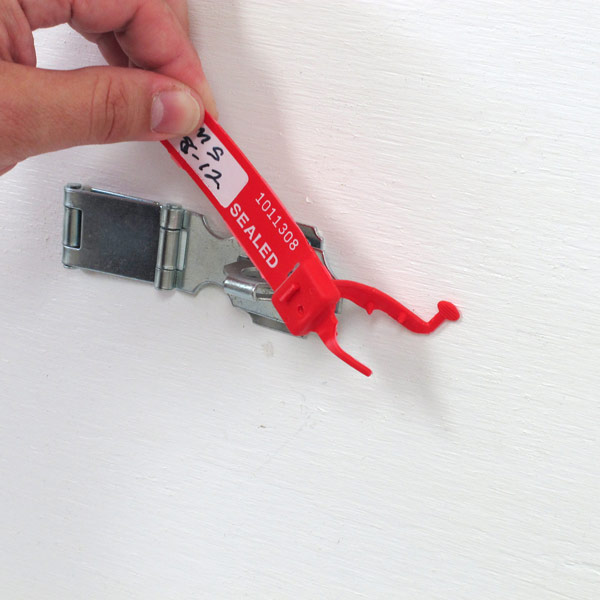

Use the easy-removal tab (if included) to open the seal.

Plastic Seal Removal

Adjustable plastic seals are a one-time use product, which can be recycled.

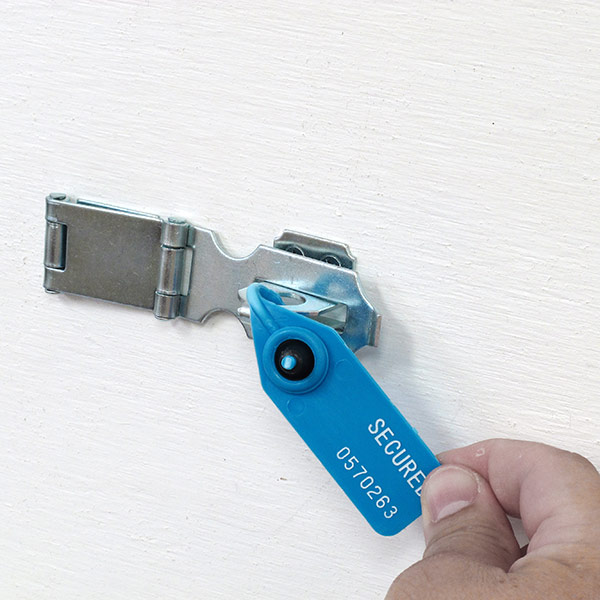

For Improved Security....

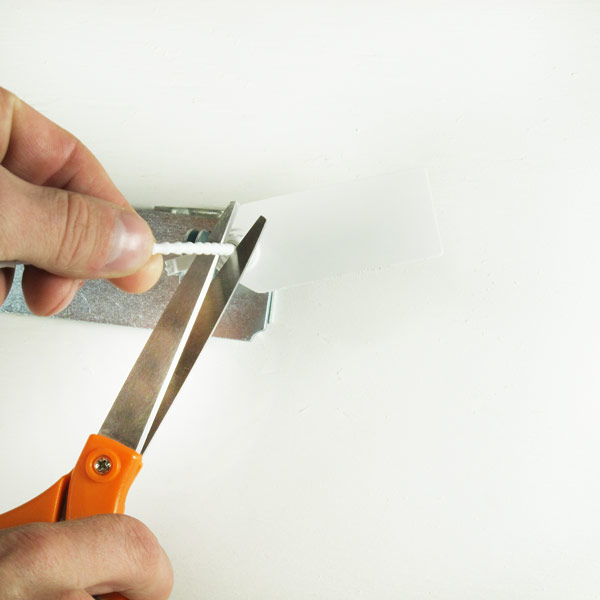

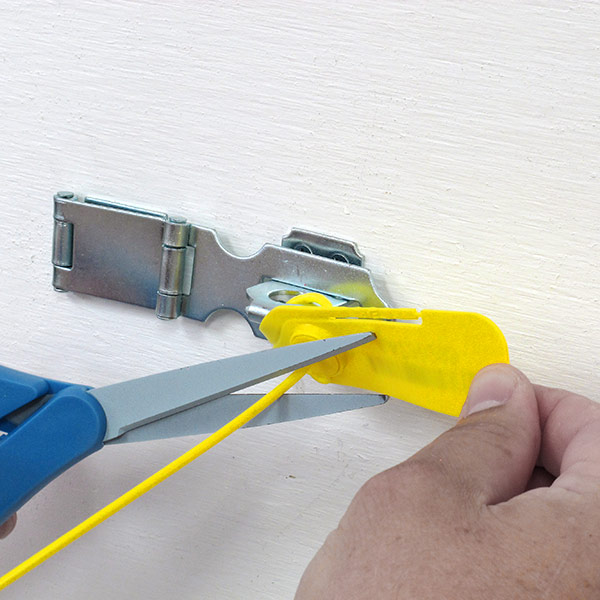

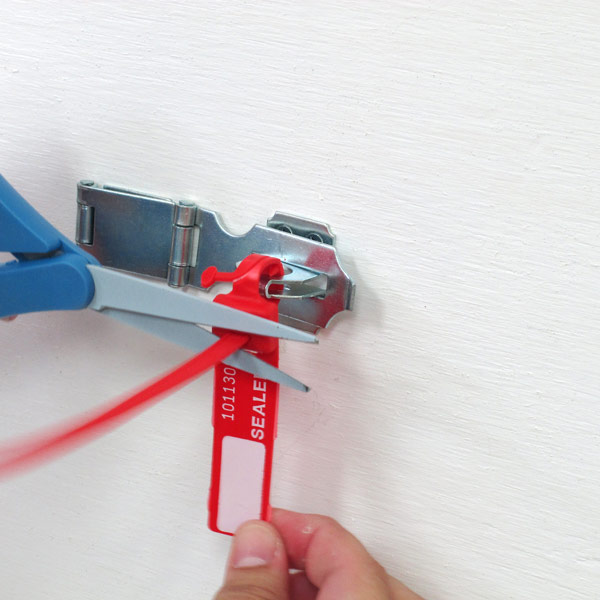

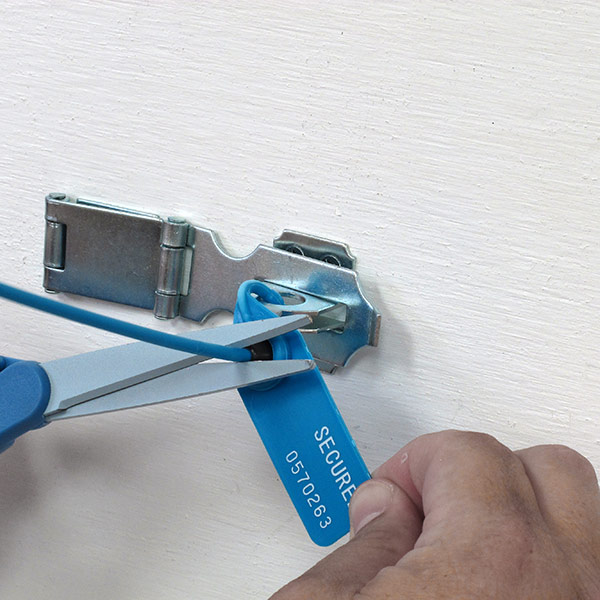

To discourage attempted tampering, use scissors or a wire cutter to trim the excess plastic strap flush with the tab.

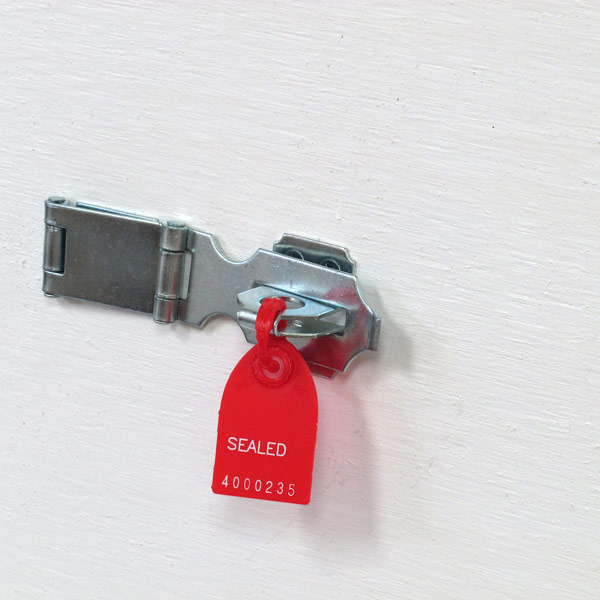

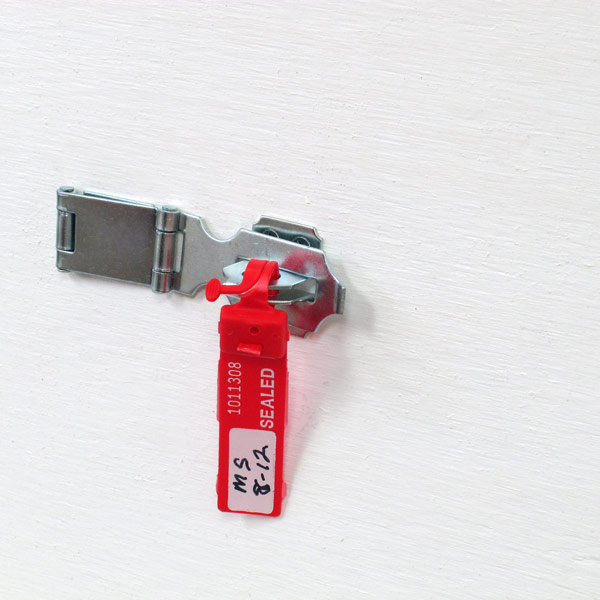

Mechanical Seal, Securing Seal

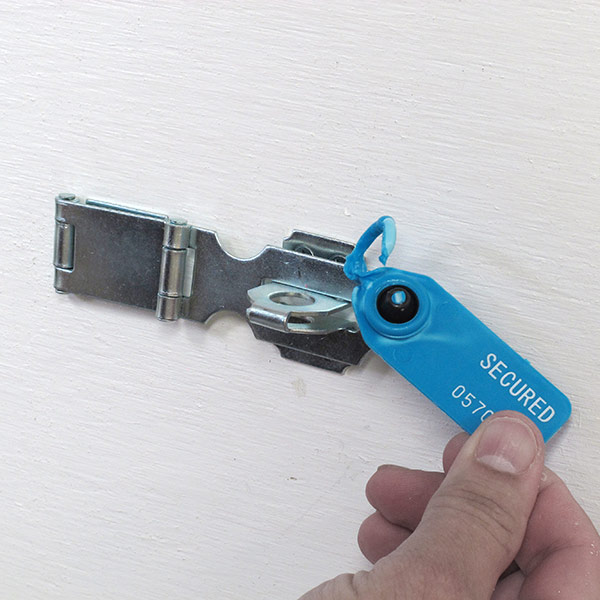

To minimize unauthorized reuse, snug the seal tightly initially (no slack); when later removed, use the tear tab or cut the strap near the tab bottom to assure the seal cannot be reused.

Mechanical Seal Removal

Links to Mechanical Seals

Metal Band Seals
Plastic Band Seals
Adjustable Plastic Seals
Cable Seals
Bolt Seals
Padlock Seals

Other NovaVision Products

holographic security labels and hologram labels

Pricing

Adjustable Plastic Security Seals

All seals are in stock and ready for immediate shipment.

Seals are usually sold in bags of 100 seals, unless noted otherwise.

Each bag contains seals with consecutive serial numbers. If purchasing multiple bags, we cannot guarantee the packages will be consecutive. A full case contains 1000 adjustable seals, which will be consecutive. But multiple cases may not be consecutive.

For other features and customizations not shown, please call for more information.

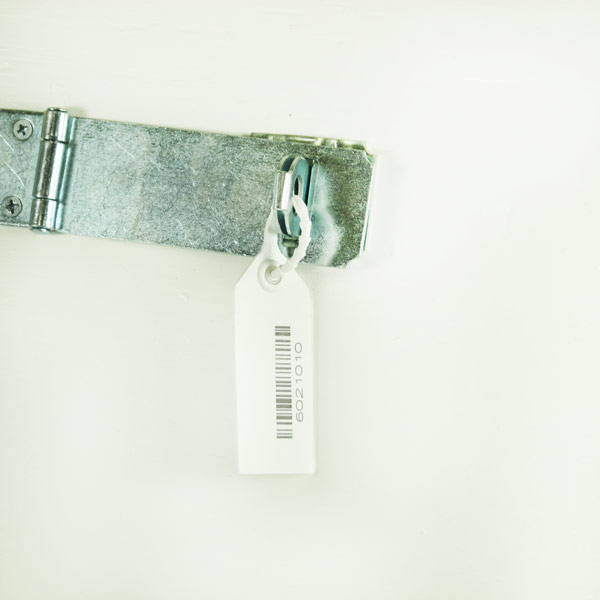

1) Pull Tight with Bar Code (Usable Length: 5 inch)

Light duty plastic seals commonly used for small hasp openings.

Plastic Seal

Length		Price ($ / Seal)						Product Code
		1 bag	2 bags	5 bags	1 case*	5 cases*	10 cases*
Usable (Overall)	Quantity (seals)	100	200	500	1,000	5,000	10,000
5 inches (9.0 in)		$.29	$.26	$.24	$.19	$.17	call	Code: MS-A4

Product Features:

Available Color: White
Usable strap length: 5.0 inches
Minimum Hasp Opening: .075 inch diameter
Durable locking device
Stock Imprint: Unique serial numbers (black ink) with 128 bar code (bar code excludes alpha characters)
Break strength: 30 lb; no cutting tool required for removal

* Full cases of 1000 seals have 2 bags of 500 seals. Partial cases are sold in bags of 100 seals.

CUSTOM: Minimum Order 5,000 seals
- Price: $.29/seal
- Packaging: 1000 seals/carton (2 bags of 500 seals/bag)
- Ready to ship: normally 3 weeks (but no sooner than March 7)

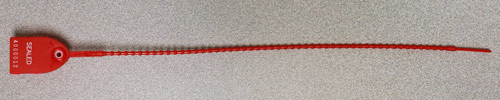

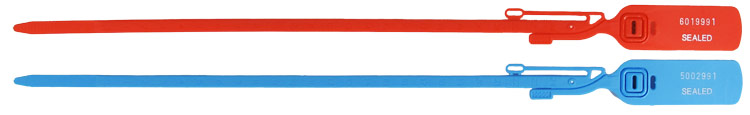

2) Pull Tight (Usable Length: 9 to 15 inch)

mechanical security seal

Length		Price ($ / Seal)						Product Code
		1 bag	2 bags	5 bags	1 case*	5 cases*	10 cases*
Usable (Overall)	Quantity (seals)	100	200	500	1,000	5,000	10,000
9 inches (12 in)		$.36	$.34	$.31	$.21	$.19	call	Code: MS-A21R
12 inches (15 in)		$.38	$.36	$.33	$.25	$.22	call	Code: MS-A22R
15 inches (18 in)		$.40	$.38	$.35	$.28	$.24	call	Code: MS-A23R

Our medium duty plastic seals offer these product features:

Available Color: Red
Minimum Hasp Opening: .14 inch diameter
Durable locking device
Stock Imprint: SEALED + Unique serial numbers (7 digits in white ink)
- 12 inch begins with "3"; 15 inch begins with "4"; 18 inch begins with "5"
Nail grips to seal bags
Break strength: 50 lb; no cutting tool required for removal

* Full cases of 1000 seals have 10 bags of 100 seals.

CUSTOM: Minimum Order 1,000 seals
- Price: Add $.05/seal to the stock UNIT price
- Maximum Imprint: 3 lines text + 1 line serial # (10 characters/line)
- Standard Font: Gothic, 9.5 point
- Custom Text Fonts & Graphics : add $400 tooling (one time expense)
- Packaging: 1000 seals/carton (100 mats of 10 seals/mat)
- Ready to Ship: 3 weeks

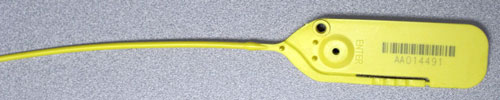

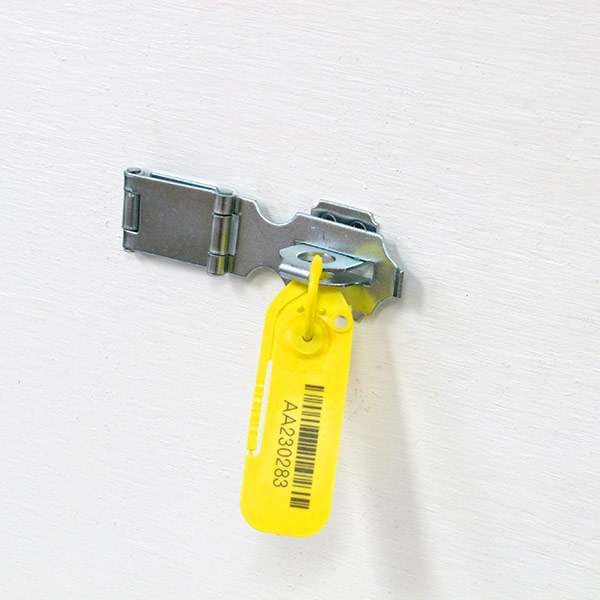

3) Pull Tight with Bar Code (Usable Length: 17 inch)

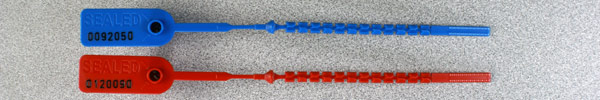

Plastic Seal

Length		Price ($ / Seal)						Product Code
		1 bag	2 bags	5 bags	1 case*	5 cases*	10 cases*
Usable (Overall)	Quantity (seals)	100	200	500	1,000	5,000	10,000
17 inches (21 in)		$.41	$.39	$.36	$.29	$.25	call	Code: MS-A3

Our medium duty plastic seals offers an extra long strap plus these product features:

Available Color: Yellow
Usable strap length: 17 inches
Minimum Hasp Opening: .11 inch diameter
Durable locking device
Stock Imprint: Unique serial numbers (black ink) with 128 bar code (bar code excludes alpha characters)
Nail grips to seal bags
Hole in tab to affix additional tagging
Side Tear-Off Tab for removal (no cutting tool required)
Break Strength: 50 lb

* Full cases of 1000 seals have 2 bags of 500 seals. Partial cases are sold in bags of 100 seals.

CUSTOM: Minimum Order 5,000 seals
- Price: $.40/seal
- Packaging: 1000 seals/carton (2 bags of 500 seals/bag)
- Ready to Ship: normally 3 weeks

4) Pull Tight Heavy Duty — (Usable Length: 10 inch)

Our heavy duty plastic seal offers added strength and security. Sold in bags of 100 seals. Full cases of 1000 seals are not in bags.

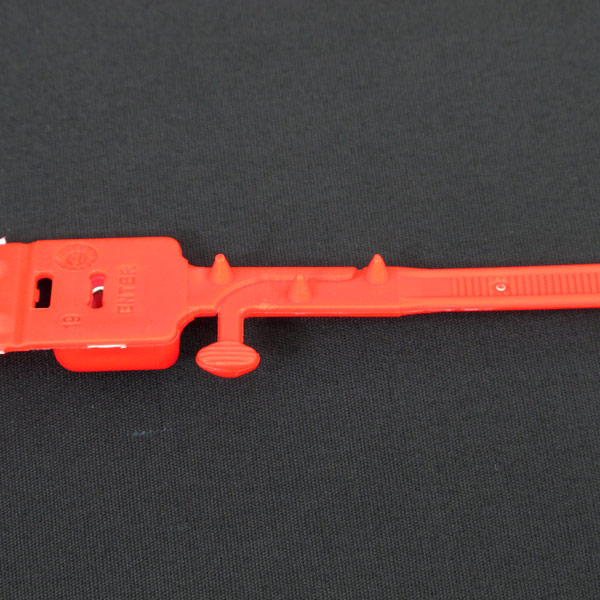

Strap is inserted from the side opposite the serial number (side marked "enter")

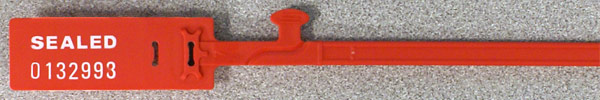

plastic security seal, red

Length		Price ($ / Seal)					Product Code
		1 bag	2 bags	5 bags	1 Case*	5 Cases*
Usable (Overall)	Quantity (seals)	100	200	500	1,000	5,000
10 inches (16.375 in)		$.49	$.46	$.44	$.42	call	Code: MS-A5R

* For Full Case orders, seals are NOT in bags

Specifications

Product Code:	MS-A5R
Color:	Red
Usable Strap Length:	10 inches
Overall Size:	15.1 inch x .875 inch
Minimum Hasp Opening:	.32 inch x .10 inch
Stock Imprint:	"SEALED" text Unique serial number
Imprint Color:	White
Break Strength:	100 lbs
Material:	Polypropylene
Configuration:	Mat of 10 seals
Case:	1,000 seals/case; 15 lbs; 10x10x22 inches
Other Features:	Nail grips to seal bags Side tear-off tab for removal (no cutting tool required)

Typical Applications:

Truck & Trailer Door Seals	Industrial Applications

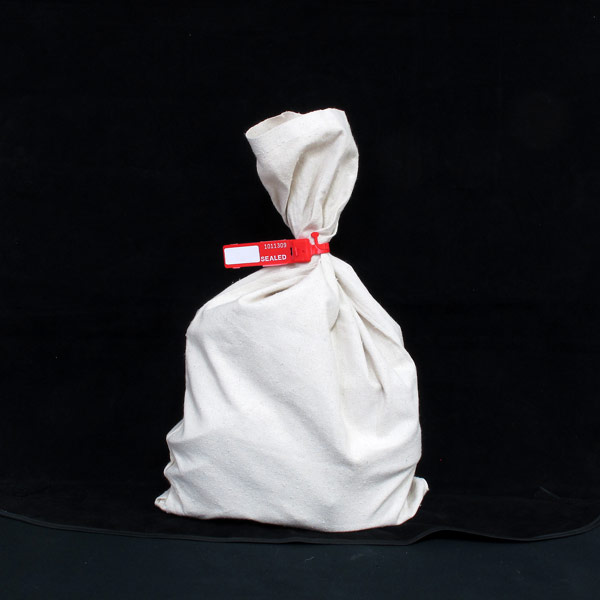

Luggage Seals	Bag Seals (Coin Bag, Inner Drum bag, Crime Scene Evidence Bag, etc) Nail Grips Secure the Bag Opening
