Band Seals

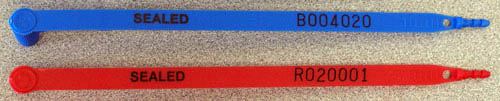

Plastic Band Seals
Plastic band seals are fixed length seals, which create a 3 inch loop. They are affordably priced and intended for low and medium security applications.

They are easy to use — just snap the insert into the locking mechanism. Tug on the seal to assure the lock is engaged. The double locking mechanism provides added security compared to many other plastic seals. The locking jaws are constructed of acetal plastic for added durability and security.
And they are easy to remove. The low break strength (typically 33 lb) allows the seal to be broken manually. Since cutting tools are not required, you get added convenience and added safety.
Typically, these seals are used for trucks, trailers, and railcars. Molded in food-grade polypropylene, these seals can also be used for bulk food, liquid tanks, livestock and other food-related applications.
All plastic band seals feature a unique pre-assigned consecutive serial number and they are imprinted with the word “SEALED”.
Suitable for temperatures ranging from –20ºC to 80ºC ( -4ºF to 176ºF)
Typical Applications
Truck and trailer doors
Shipping containers
Rail car doors
Fire doors
Fire extinguisher
Airline food cart
Tool box
Sprinkler systems
Storage bins
Transfer hoppers
Valves
Utility meters
Any container with a hasp
Links to Mechanical Seals
Metal Band Seals
Plastic Band Seals
Adjustable Plastic Seals
Adjustable Cable Seals
Bolt Seals
Other NovaVision Products (click for more info):
Security Hologram Stickers
Promotional Labels and Stickers
Security Tape and Seals
Anti Pilfering Seals
Holographic Paper and Board
3D Full Color Holograms
Water Detection Labels
Time Expiring Visitor Badges
Custom ID Badges
Holographic ID Cards
Holographic ID Overlays
ID Cards and Accessories
Parking Permits
Thermal Transfer Ribbons
Thermal Labels
Thermal Printers
Laminated Bar Code Labels
Adhesive Cleaning Kits
|
|

Pricing
Plastic Band Seals - Stock
Available in two colors:
Red (MS-P11) |
 |
Blue (MS-P12) |
 |
Stock product is sold in bags of 100 seals (10 mats with 10 seals/mat) which have consecutive serial numbers. If purchasing multiple bags, we cannot guarantee the separate bags will be consecutive.

Specifications
Imprinted Text: SEALED (black)
Imprinted Serial Number: Unique, pre-assigned (black)
Overall Size: 3/8 inch x 8 inch
Typical Maximum Length of Secured Loop: 3 inches
Typical Break Strength: 33 lbs
Color: RED or BLUE
Weight (100 seals): 0.8 lb
Note: Each bag contains a total of 100 seals
A full case contains 1000 seals (100 mats with 10 seals/mat), which will be consecutive; these seals are not in bags.

Plastic Band Seals - Custom
Available colors: Red (MS-P11C), Blue (MS-P12C), White (MS-P13C), Green (MS-P14C), Yellow (MS-P15C)
Maximum Imprint: 15 text characters + 6 digits
Minimum Order: 5000 seals
Allow 8 weeks for delivery


Typical Applications:

Truck/Trailer Seals |

Seal Any Hasp |
|
|

Installation Instructions:
1. Thread the loose end into the locking channel
2. Push strap until the locking mechanism snaps
3. Pull on the strap to confirm the locking mechanism is engaged
