Barrier Seals

Product Overview

Barrier seals provide the maximum protection for shipping cargo via trucks and containers. Installed on the locking rods of the shipping container doors to secure both doors, they are easy to install and require no special tools. Most of the barrier seals featured on this page are a one-time use product.

Our CargoShield product is our best barrier seal; it has been independently tested and certified to ISO 17712:2013 as a high security seal. It resists physical attack from saws, cutting sheers, bolt cutters, levering by crowbar, impact by hammer, etc. To remove the seal use a electric cutting wheel, which normally takes about 2 minutes in field conditions.

Our most affordable barrier seal is our DualGuard product, which is a combination bolt and cable seal. The DualGuard has been independently certified to meet ISO 17712:2013 as a high security seal too. The seal is removed using bolt cutter.

Our MS-BAR9 is a reusable barrier seal. The recommended locking method is a bolt seal (purchased separately), but it is also compatible with a padlock you supply.

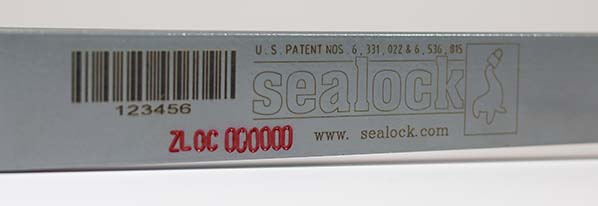

For added security, all of our barrier seals have matching serial numbers on key components.

Choosing A Barrier Seal

ISO-rated barrier seals are independently tested to meet structural performance standards to earn the "HIGH" security rating. C-TPAT recommends HIGH security seal for cross border shipments.

Ask prospective suppliers of your barrier seals to provide written verification the seal was independently tested to comply with ISO 17712:2013 as a HIGH security seal.

Seals which fit wider spacing on the locking rods will be compatible with more containers and trucks. Sometimes the locking rods on rail cars and ocean containers have wider spacing than truck trailers.

Matching serial numbers on all the major seal components offer more security. Engraved numbers are more durable.

Thicker steel (higher cross sectional area) offers more security because it takes longer and is more difficult to remove. Hardened steel offers some added resistance for hack saws, but offers no added resistance to cutting wheels.

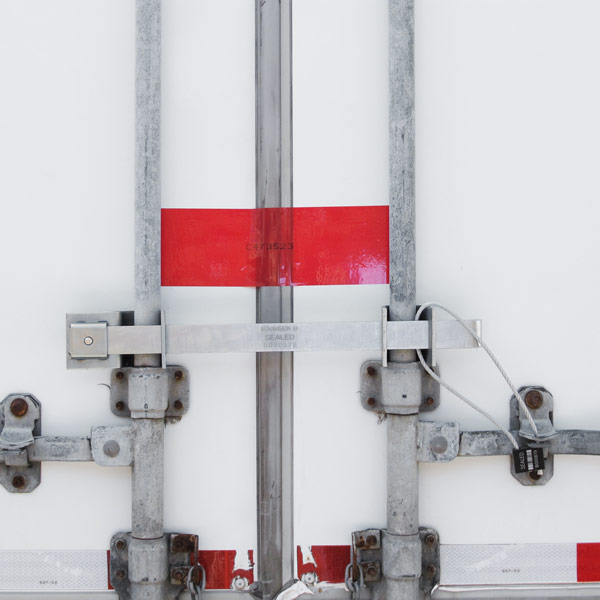

A companion latching cable secures the barrier seal to the door latch to minimize tampering with the seal and locking rods on the door. Also, this configuration requires two cuts to remove both the barrier seal and the latching cable, which improves security.

Seals with bar codes of the serial number offer improve productivity in recording the serial number.

Seals packaged in individual boxes are easier and less cost to distribute in small quantities.

For the best security, we recommend our CargoShield product (MS-BAR10 or MS-BAR11).

The MS-BAR9 is locked with a bolt seal or padlock, so the barrier seal componets are reusable.

As a lower cost option, we also offer a bolt/cable combination (called DualGuard). Both the bolt and cable are ISO-rated to ISO17712:2013 as a HIGH security seal, as required by C-TPAT. It requires two cuts (using a bolt cutter) to remove the DualGuard.

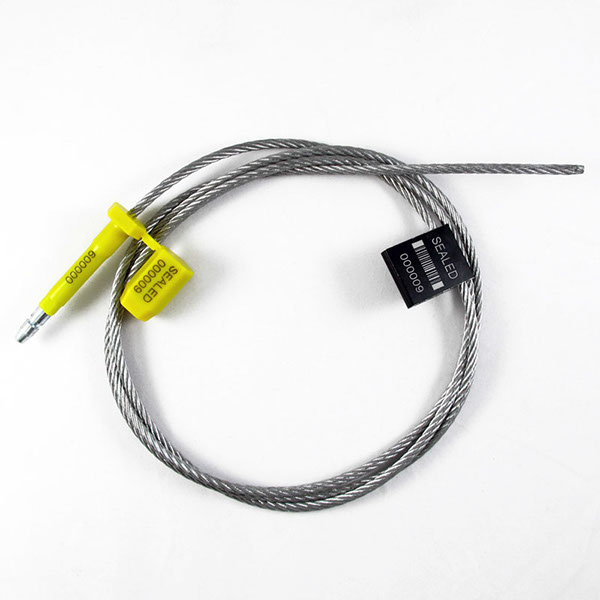

DualGuard Bolt Cable Seal

DualGuard -- Premium Bolt (9 mm) and Cable (5 mm) Seal Combination

Comparison of Our Barrier Seals

CargoShield CargoShield CargoShield DualGuard Navalock
MS-BAR9 MS-BAR10 MS-BAR11 MS-C5B9-76KY MS-MKIIIA
ISO-Rated as HIGH SECURITY No Yes Yes Yes No
Major Components with Serial Numbers 3 of 3 3 of 3 3 of 3 3 of 3 1 of 3
Engraved Serial Numbers on Barrier Seal Yes Yes Yes Yes No (on label)
Includes Latching Cable (or Bolt) No No Yes Yes (Bolt) Yes
ISO-Rated Latching Cable (or Bolt) - - Yes Yes (Bolt) No
Engraved Matching Serial Number on Latching Cable - - Yes Yes (Bolt) Yes
Bar Code of Serial Number No No Yes* Yes** No

Fits Locking Rod Spacing (outside clearance):
Minimum (inches) 4.5 4.5 4.5 3 9
Maximum (inches) 17.25 17.25 17.25 30 17.5

Steel Bar Dimensions
Width (mm) 35 35 35 5 (Cable) 38
Thickness (mm) 8 8 8 5 (Cable) 6.3

Cross Sectional Area (mm sq) 280 280 280 20 239
Exposed Holes which reduce cross sectional area Yes No No No Yes***
Shackle Thickness (mm) 5.8 5.8 5.8 5 (Cable) 6.3
Full Case Qty (Seals) 6 6 6 50 10
Seals Packaged in individual boxes Yes Yes Yes No No

* Bar Code is located on Latching Cable Lock
** Bar Code is on Cable Seal Lock
*** Exposed holes for spacing of 15 inch or longer (exposed holes allow the bar to be cut off quicker)

Other Security Options

Layering security improves security. Although barrier seals offer exceptional security, for the highest security, use more than one sealing method.

Typically barrier bar seals are provided without any companion seals to secure the door latch. If no companion seal is provided, using an optional bolt or cable seal to secure the latch will improve security.

Some barrier seals are available with latching cables (which have matching serial numbers) to also secure the barrier seal to the door latch. This configuration reduces tampering of the locking rods and barrier seal. Our product MS-BAR11 is a barrier seal with a companion latching cable -- both the barrier seal and cable are ISO-rated.

For high security applications, barrier seals can also be combined with Cargo Door Seals, which are large tamper evident labels to prevent the removal or opening of the container doors. When removed, the Cargo Door Seals will self "VOID" to indicate tampering.

Our most affordable barrier seal is a bolt/cable combination (called DualGuard). Both the bolt and cable are ISO-rated to ISO17712:2013 as a HIGH security seal, as required by C-TPAT.

For more information on these options, click on these links:

Stock Barrier Seals

CargoShield® Barrier Seal, One Time Use, MS-BAR10

Barrier Cargo Seal

C-TPAT CompliantC-TPAT and ISO 17712:2013 Compliant High (H) Security Seal

Our CargoShield seal is one of the few barrier seals in the world which has been independently tested to comply with ISO 17712:2013(E) as a HIGH SECURITY seal.

CargoShield (MS-BAR10) also includes these added features:

  • Matching serial numbers on all 3 components for added security
  • Constructed of thicker steel for added durability and security
  • Unpainted metal components highlight tampering
  • Accommodates more container doors (up to 17.25 inch spacing of locking rods)

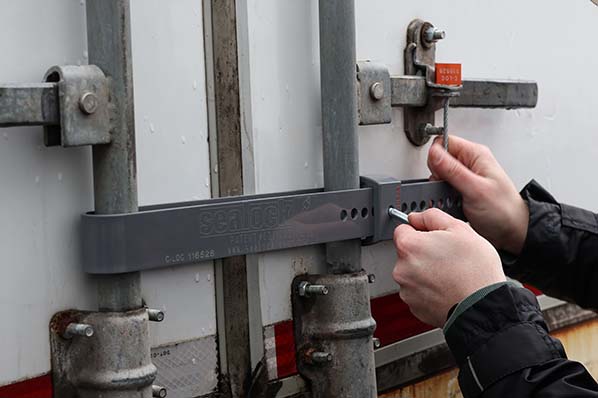

  • Easy to install (typically less than 15 seconds)

Each seal is packaged individually in a box suitable for shipping, which simplifies the logistics of distributing individual seals.

Full cases include 6 seals -- each seal is packaged in an individual box.

Add to Cart Code: MS-BAR10

Pricing Information
Qty (Seals) Qty (Cases) $/Seal $/Case Total
1 -- $35.00 -- $35.00
6 1 $29.50 $177 $177
48 8 $28.00 $168 $1,344
96 16 $26.50 $159 $2,544
126 21 $25.00 $150 $3,150
156 26 Call Call Call
Specifications
Code MS-BAR10

Locking Bar
Width 1.38 in (35 mm)
Thickness 0.31 in (8 mm)
Fits Locking Rod Spacing 2.25 in to 17.25 in
Serial Number Unique, Matching Number on Both Sides of Bar

Shackles
Thickness 0.22 in (5.7 mm)
Serial Number One On Each Shackle (Matches Number On The Bar)

Locking Pin
Diameter 0.31 in (8 mm)
Finish Chrome

Packaging
Individual Seals
  • Seals/Box: 1
  • Box Dimensions (LWH): 12 in x 3 in x 3 in
  • Weight: 5.37 lbs
Cases
  • Seals/Case: 6
  • Case Dimensions (LWH): 20 in x 13 in x 6 in
  • Weight: 32.22 lbs
Additional Photos

Cargo Barrier Seal

User Guides
Compliance / Datasheets

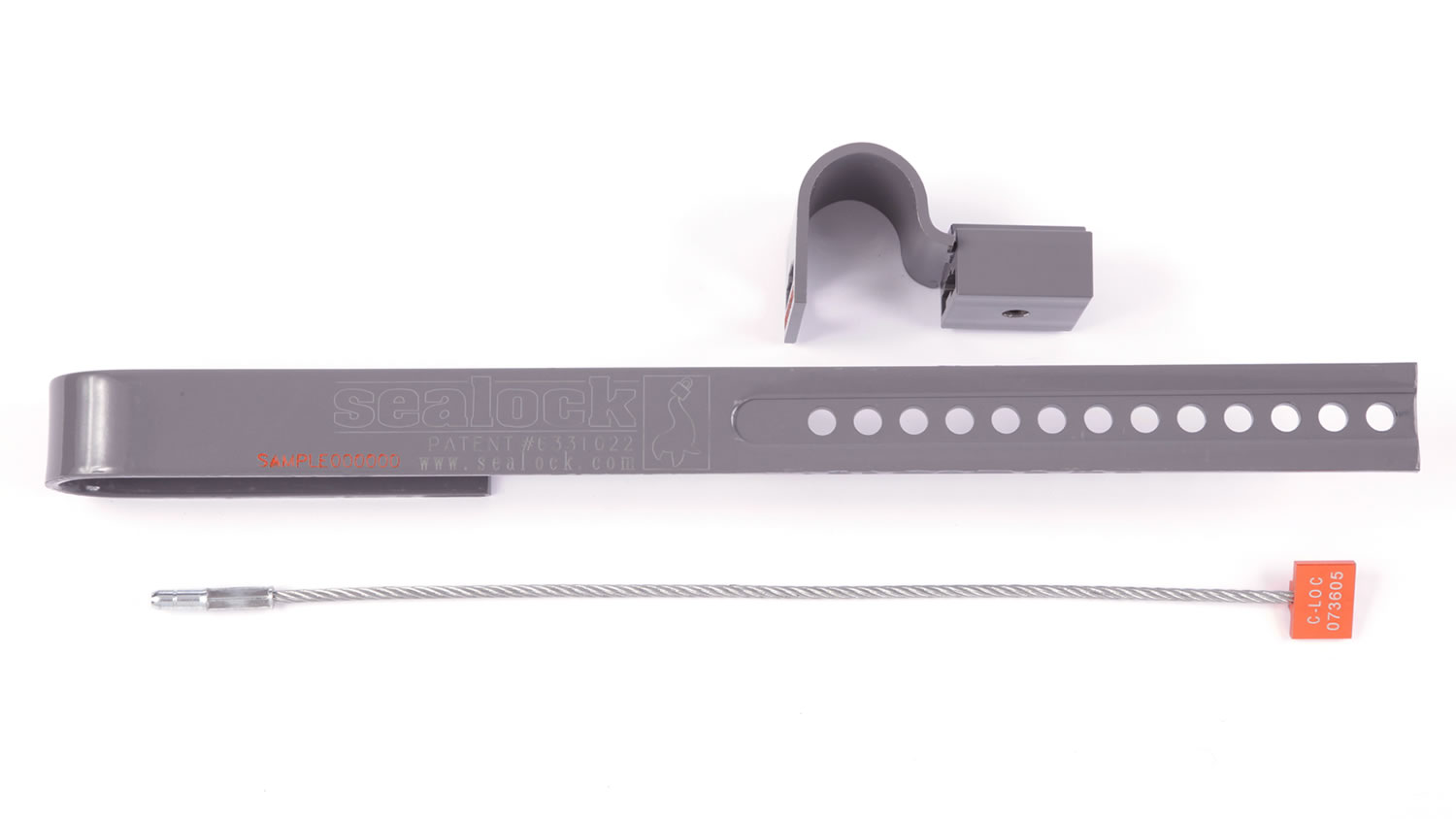

CargoShield® Barrier Seal with Cable Seal, MS-BAR11

Barrier Cargo Seal

C-TPAT CompliantC-TPAT and ISO 17712:2013 Compliant High (H) Security Seal

For added security, our CargoShield is also available with an optional cable seal to secure the barrier seal to the door latch. In this configuration, the barrier seal is our product MS-BAR11. Adding the cable seal offers these additional features:

  • Secures the locking bar by restricting its movement to prevent tampering with the locking rods and/or barrier seal
  • The cable seal is ISO-rated as a HIGH SECURITY seal
  • The cable seal has a matching serial number to the barrier seal, which provides another layer of security and authentication
  • Includes a bar code version of the serial number for improved productivity in machine-reading the serial numbers
  • Secures the door latch, which reduces costs since a separate bolt seal is not required
  • When installed requires two cuts to fully remove the cable and the barrier seal, which adds security

Full cases include 6 seals -- each seal is packaged in an individual box suitable for shipping, which simplifies the logistics of distributing individual seals.

Add to Cart Code: MS-BAR11

Pricing Information
Qty (Seals) Qty (Cases) $/Seal $/Case Total
1 -- $37.00 -- $37.00
6 1 $31.50 $189 $189
48 8 $30.00 $160 $1,440
96 16 $28.50 $171 $2,736
126 21 $27.00 $162 $2,592
156 26 Call Call Call
Specifications
Code MS-BAR11

Locking Bar
Width 1.38 in (35 mm)
Thickness 0.31 in (8 mm)
Fits Locking Rod Spacing 2.25 in to 17.25 in
Serial Number Unique, Matching Number on Both Sides of Bar

Shackles
Thickness 0.22 in (5.7 mm)
Serial Number One On Each Shackle (Matches Number On The Bar)

Locking Pin
Diameter 0.31 in (8 mm)
Finish Chrome

Cable Seal
ISO Rating HIGH SECURITY seal according to ISO17712:2013(E)
Cable Diameter 0.19 in (5 mm)
Cable Length 30 in (76 cm)
Cable Housing Aluminum, Black color
Serial Number Matches Serial Number On Bar
Stock Imprint
  • Serial Number
  • Bar Code
  • "SEALED" Text

Packaging
Individual Seals
  • Seals/Box: 1
  • Box Dimensions (LWH): 12 in x 3 in x 3 in
  • Weight: 5.5 lbs
Cases
  • Seals/Case: 6
  • Case Dimensions (LWH): 20 in x 13 in x 6 in
  • Weight: 33 lbs
Additional Photos

Cargo Barrier Seal

User Guides
Compliance / Datasheets

Reusable CargoShield® Barrier Seal, MS-BAR9

Barrier Cargo Seal

We also offer a reusable version of the CargoShield which consists of the locking bar and two floating shackles.

The locking bar has an 11mm ID hole (7/16 inch) to accommodate a bolt seal or your padlock.

The recommended method to lock the MS-BAR9 is using our MS-B8 bolt seals (purchased separately). Although the bolt seal is a one-time use seal, the barrier seal components are re-usable.

The MS-BAR9 also includes these added features:

  • Matching serial numbers on all 3 components for added security
  • Constructed of thicker steel for added durability and security
  • Unpainted metal components highlight tampering
  • Accommodates more container doors (up to 17.25 inch spacing of locking rods)
  • Easy to install (typically less than 15 seconds)

The MS-BAR9 is constructed of the same components as our ISO-certified barrier seals (BAR10 and BAR11). However, MS-BAR9 has not been ISO-tested and therefore does not have the ISO-certification at this time.

Each seal is packaged individually in a box suitable for shipping, which simplifies the logistics of distributing individual seals.

Full cases include 6 seals -- each seal is packaged in an individual box.

Add to Cart Code: MS-BAR9

Pricing Information
Qty (Seals) Qty (Cases) $/Seal $/Case Total
1 -- $30.00 -- $30.00
6 1 $25.25 $151.50 $151.50
48 8 $24.00 $144 $1,152
96 16 $22.75 $136.50 $2,184
126 21 $21.50 $129 $2,709
204 34 Call Call Call
Specifications
Code MS-BAR9

Locking Bar
Width 1.38 in (35 mm)
Thickness 0.31 in (8 mm)
Fits Locking Rod Spacing 2.25 in to 17.25 in
Serial Number Unique, Matching Number on Both Sides of Bar

Shackles
Thickness 0.22 in (5.7 mm)
Serial Number One On Each Shackle (Matches Number On The Bar)

Packaging
Individual Seals
  • Seals/Box: 1
  • Box Dimensions (LWH): 12 in x 3 in x 3 in
  • Weight: 5.5 lbs
Cases
  • Seals/Case: 6
  • Case Dimensions (LWH): 20 in x 13 in x 6 in
  • Weight: 33 lbs
Additional Photos

Cargo Barrier Seal

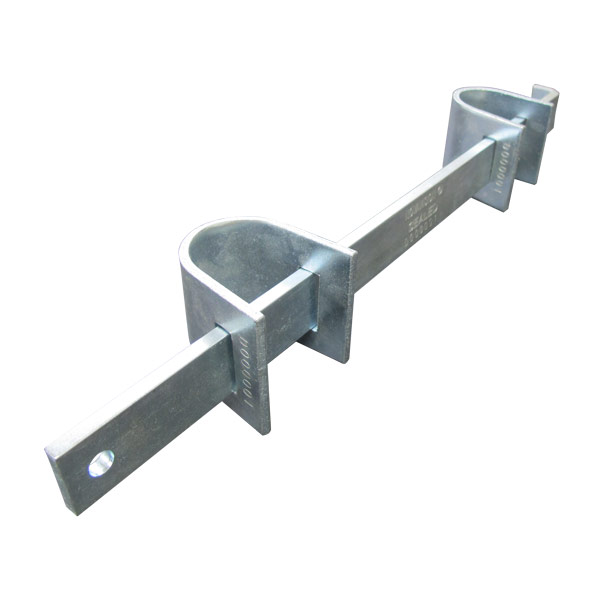

MS-BAR9 Components Assembled

Cargo Barrier Seal
MS-BAR9 Locked With Bolt Seal (Recommended Method)

Cargo Barrier Seal
MS-BAR9 with Typical Padlock and Security Label Over Key Hole

Cargo Barrier Seal
MS-BAR9 with Typical Padlock and Security Label Over Key Hole

User Guides

MS-BAR9 Installation Guide

The recommended method to seal the MS-BAR9 is using our MS-B8 bolt seal (purchased separately) inserted into the hole of the bar. In this configuration, the bolt seal is a one-time use item (removed by cutting with a bolt cutter), but the MS-BAR9 barrier seal components are re-usable.

Another option, though less secure, is to use a padlock. Although we don't recommend any specific padlock, the MS-BAR9 is compatible with any padlock which meets these dimensional clearances:

  • Maximum Shackle Diameter: 11mm (7/16 inch)
  • Minimum Throat Clearance (when locked): 12mm (1/2 inch)

In October 2014, we reviewed these padlocks to confirm the dimensional clearances (you can decide if these padlocks meet your security and budget requirements):

  • MasterLock 187XD
  • MasterLock 187XKAD
  • MasterLock 6270/970

We only evaluated a few locks for fit. There are many other brands of padlocks which are dimensionally compatible.

The lock companies offer padlocks keyed the same or keyed differently.

For added security, consider a keyed padlock which includes these features:

  • The key cannot be removed when the lock is open.
  • The shackle is shrouded (added protection against abuse)

However, the security risks for padlocks include:

  • Control of the keys
  • The possibility of picking the lock

For added protection against these risks, the key hole can be protected with a tamper evident label with a serial number. Please see our wide selection of residue or non-residue security labels to fit your padlock.

Combination padlocks are another option for locking the MS-BAR9

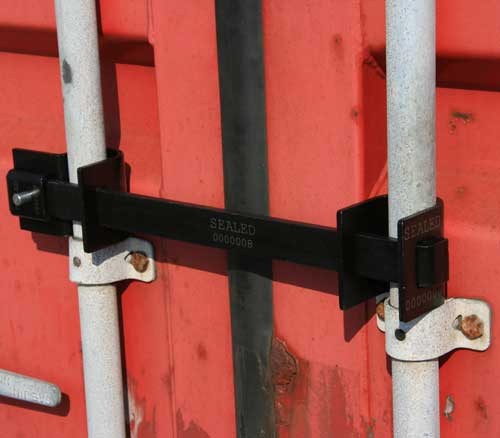

Navalock® Barrier Seal, MS-MKIIIA

Barrier Cargo Seal

The 2-piece locking bar (.25 inch thick steel) fits locking rod spacing ranging from 7.25 inches to 14.375 inches center-to-center.

A locking pin (.5 inch diameter) with locking mechanism (serial numbered) permanently couples the 2-piece locking bar assembly.

The 12 inch long cable (.125 inch diameter) with locking mechanism (matching serial number) is threaded through the door latch. This cable provides these benefits:

  • Secures the locking bar by restricting its movement to prevent tampering with the locking rods and/or barrier seal.
  • The cable has a matching number to the barrier seal, which provides another layer of security and authentication.
  • Secures the door latch (reduces cost since a separate bolt seal is not required)

Orders for 1 to 9 units are shipped as individually packed seals. The lowest price for individually packed seals is shown in the "4 seal" column below.

Orders for full cases of 10 or more seals are sold in full cases only.

Ready to ship within 1 business day.

Add to Cart Code: MS-MKIIIA

Pricing Information
Qty (Seals) Qty (Cases) $/Seal $/Case Total
1 -- $35.00 -- $35.00
4 -- $32.00 -- $128.00
10 1 $29.50 $295 $295
60 6 $28.00 $280 $1,680
96 16 $28.50 $171 $2,736
110 11 $26.50 $265 $2,915
160 16 $25.00 $250 $4,000
260 26 Call Call Call
Specifications
Code MS-MKIIIA

Locking Bar
Thickness 0.25 in (6.35 mm)
Fits Locking Rod Spacing 7.25 in to 14.375 in

Locking Pin
Diameter 0.5 in (12.7 mm)
Serial Number Matches Serial Number On Cable Seal
Finish White Plastic

Cable Seal
Cable Diameter 0.125 in (3.175 mm)
Cable Length 12 in (304.8 cm)
Serial Number Matches Serial Number On Locking Pin

Packaging
Individual Seals
  • Seals/Box: 1
  • Box Dimensions (LWH): 12 in x 3 in x 3 in
  • Weight: 5 lbs
Cases
  • Seals/Case: 10
  • Case Dimensions (LWH): 16 in x 11 in x 4 in
  • Weight: 39 lbs
Additional Photos

Cargo Barrier Seal

User Guides

DualGuard Premium Bolt Seal (9 mm) & Cable Seal (5 mm) Combination, Adjustable Length, Black & Yellow, MS-C5B9-76KY

DualGuard - Bolt Seal Cable Seal Combination

C-TPAT Compliant
C-TPAT and ISO 17712:2013 Compliant High (H) Security Seal

Our DualGuard seals include a 5mm cable seal and 9mm bolt seal in a unitized construction. Both the cable and bolt seal are both C-TPAT compliant and meet the new design and construction standards of ISO17712:2013, which provides improved security.

The cable is 76 inches long, which typically allows for a triple-wrap around the locking bars. The bolt seal secures the latch.

Sold as individual seals (Full Cases = 50 DualGuard Seals)

more info Add to Cart Code: MS-C5B9-76KY

Pricing Information
Qty (Seals) Qty (Cases) $/Seal $/Case Total
1 -- $10.00 -- $10
5 -- $8.00 -- $40
10 -- $6.50 -- $65
25 -- $6.00 -- $150
50 1 $5.00 $250 $250
100 2 $4.75 $237.50 $475
200 4 $4.50 $225 $900
500 10 $4.25 $212.50 $2,125
1,000 20 Call Call Call
Features & Benefits
  • Matching serial numbers on the cable lock, bolt, and bolt lock
  • Matching bar code on the cable lock
  • Anti-Spin feature on bolt provides added security to prevent un-authorized entry
  • Extra thick steel bolt for added durability
  • Wider head on bolt and locking mechanism for added security
  • Longer operational length bolt for added clearance for bolt cutter access to cut the bolt for removal
  • For added security, to remove, the cable and bolt must be cut separately
  • Bolt lock and cable lock have the words "SEALED" imprinted on them
Specifications
Security Rating "H" High Security
Cable Length 76 in
Cable Diameter 5 mm
Cable Type Adjustable Length, non pre-formed steel
Cable Locking Body Aluminum, Black
Stock Imprint on Cable Lock
  • "SEALED" Text
  • Unique Serial Number
  • Bar Code
Bolt Seal 9mm dia steel; 11mm OD of plastic coating; Yellow Plastic Coating
Stock Imprint on Bolt Seal SEALED + Matching serial number on bolt and bolt lock
Selling Units Individual Seals
Weights Single: 0.659 lbs, Case (50 qty): 32.95 lbs
Custom Imprint Options

Our premium bolt cable seals are also available custom imprinted. There is a minimum order quantity of 100 seals. Please Call for more details and to place a custom order.

  • Cable Dimensions: 5mm DIA x 76 in length
  • Bolt Seal Dimensions: 9mm DIA
  • Minimum Order Quantity: 100 seals
  • Ready to Ship: Allow 6 weeks
  • Selling Units: Individual Seals
Custom Imprint Pricing Per Seal
100+ 200+ 500+ 1,000+
$6.00 $5.75 $5.50 Call
Additional Photos
Bolt Cable Seal
Bolt Cable Seal
Documents/Guides

Typical Applications

Cargo Barrier Seal
Barrier Seal (MS-MKIIIA) on Cargo Container

Cargo Barrier Seal

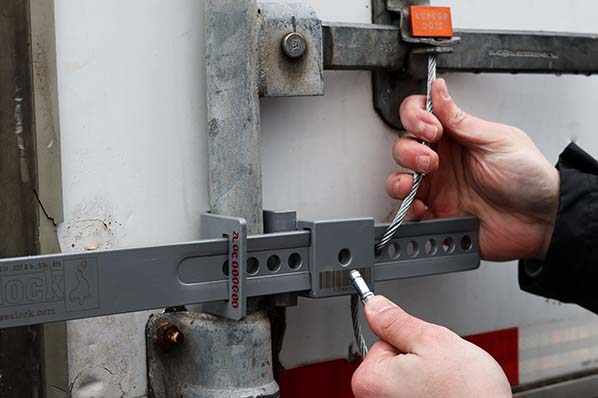

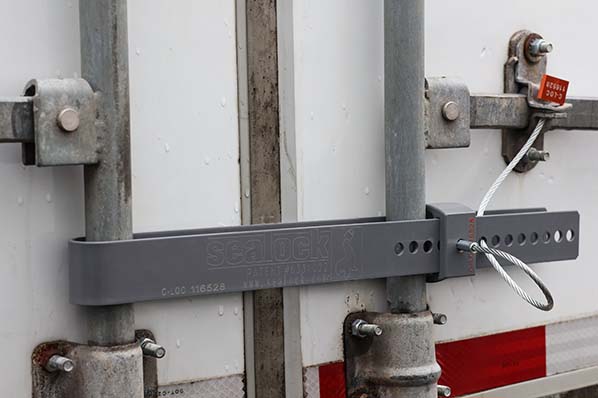

Barrier Seal (MS-BAR10) on Trailer Locking Rods

Can't Find What You're Looking For? Try our Application Search
For Questions and Ordering Information, Please Contact:
Brian Cramer Brian Cramer
Sales & Customer Service
(800) 336-6636 ext 4211
email: bcramer@novavisioninc.com
Craig Bailey Craig Bailey
Sales & Customer Service
(419) 354-1427 ext 4219
email: cbailey@novavisioninc.com
Questions? Need Help?
Questions? Need Help?
Brian Cramer
Brian Cramer
Sales & Customer Service
Phone: (800) 336-6636 ext 4211
Craig Bailey
Craig Bailey
Sales & Customer Service
Phone: (419) 354-1427 ext 4219
