Bolt security seals are very durable and intended for high security applications, such as:

  • Shipping containers
  • Trucks and trailers
  • Railcars
  • Other heavy-duty sealing applications

We offer bolt seals which qualify as "High Security" seals, comply with ISO 17712:2010, and are C-TPAT compliant.

Both the bolt and barrel have matching serial numbers, which are laser etched into the plastic covering.

bolt security seal

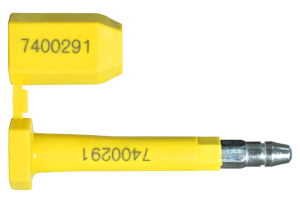

Bolt Seal Before Use (MS-B3R)

bolt security seal

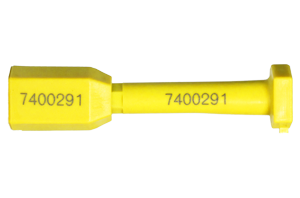

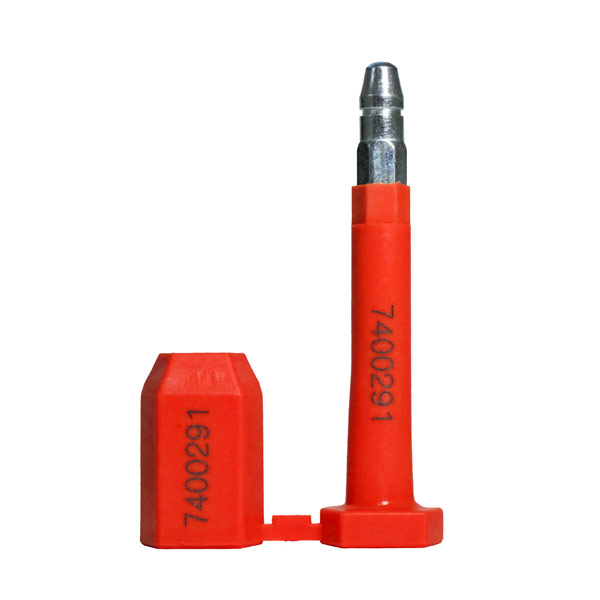

Bolt Seal After Use (MS-B3R)

The bolt is inserted into the barrel locking mechanism, where the metal bolt snaps into place within the metal locking cylinder.

The metal bolt and metal locking cylinder are encased in plastic, which is designed to show signs of tampering. If attacked with a heat source, the plastic will discolor and/or melt.

Choosing a Bolt Seal

The new ISO 17712:2010 standard for bolt seals is effective on March 1, 2012. The new guideline requires bolts with a minimum diameter of 8mm and other enhanced construction details, which improve security.

Our Premium MS-B5 series bolt seals (8 mm diameter) meets the ISO 17712:2010 standard for High Security. Because the new bolt seal standard offers improved security performance, we recommend this product for shipments which cross international borders.

Our Standard bolt seals (7 mm diameter) only comply with the prior ISO standard (ISO 17712:2006) for High Security. Some customers are still using this product for domestic shipments or applications where security needs are lower.

All of our bolt seals are produced in C-TPAT facilities.

All seals have unique serial numbers; record the serial number for added security.

Bolt seals are offered in multiple colors, which allows for color coding.

All of our bolt seals include an 'anti-spin' feature, which provides added security to prevent un-authorized entry.

All of our bolt seals have a longer operational length which provides added clearance (and convenience) for bolt cutter access to cut the bolt for removal.

Customized bolt seals provide added security. The stock bolt seals (red, blue, yellow) can be customized by imprinting the bolt only. Or we have yellow bolt seals which can be customized on the bolt and barrel.

For added security, if the container/trailer has two hinged doors (each with a keeper bar and hasp), secure both doors with a bolt seal on each door.

For added security on trailer doors, other options include:

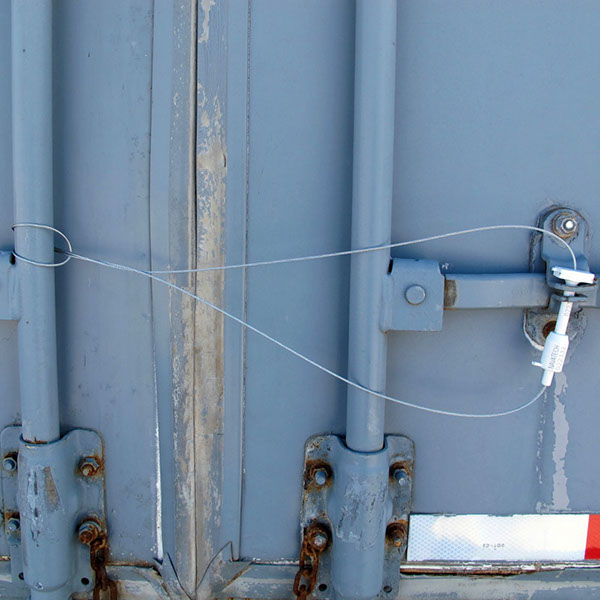

- Navaloop BC-03 (shown on this page): a combination bolt seal and cable seal which can secure both doors. The cable provides added security by wrapping it around the keeper bars on the doors. . Then install the connecting bolt in one of the door latches or hasps.

- Cable Seals: available in larger diameters and longer lengths to wrap around the keeper bars on the doors. Sometimes used in addition to or as a substitute for a bolt seal.

- Cargo Door Labels: tamper evident labels which are affixed to the doors to span the door seams. Usually used in addition to a bolt seal.

- Barrier Seals: Heavy duty metal brackets which latch the two doors together. Usually used as a substitute for a bolt seal.

Installation Instructions

  1. Insert the bolt in the latch hole.

  2. Before locking...

    a. Rotate the locking mechanism and bolt until the matching serial numbers are visible and aligned on the same side.

    b. Align the square end of the bolt to fit into the square hole in the lock. Loosely insert the bolt into the lock to assure proper alignment. Any misalignment will make it more difficult to lock.

  3. Push the bolt into the locking barrel until the locking mechanism snaps.

  4. Pull on the bolt & barrel to confirm the locking mechanism is fully engaged.

  5. A bolt cutter is required to remove the bolt seal. Wear safety glasses when removing.

Accommodating Larger Latch Holes

The maximum latch hole size is shown in the specifications. For larger hole openings, add heavy duty metallic washers (with minimum .4 inch diameter hole) on one or both ends of the bolt seal. The outside diameter of the washer should be at least .25 inch larger than the latch opening.

Bolt Seal

Before engaging the locking mechanism, confirm there will be ample room to remove the bolt with a bolt cutter.


Certificate of Conformance

security seals Scroll Down To View Products

Bolt Security Seals



Stock Premium Bolt Seals (8 mm diameter bolt)

Our MS-B5 series bolt seals are C-TPAT compliant and meet the new design and construction standards of ISO 17712:2010, which provides improved security. The new standard is effective March 1, 2012.

However, the new ISO standard is not completely finalized and we expect more changes over the next year particularly for tamper evident testing. As the new ISO standard evolves, we will complete testing to assure the MS-B5 bolt seals are compliant with any ISO updates. See "Update on ISO 17712:2010"(below) for more info.

Quantity (seals): 50 100 200 300 600 900
Cost per seal: $1.75 $1.45 $1.20 $1.05 $.99 call
Total Cost:
$87.50 $145 $240 $315 $594 call
Ready to Ship: 1 Business Day

Mechanical Bolt Seal
CODE: MS-B5Y

Add to Cart

Mechanical Bolt Seal
CODE: MS-B5R

Add to Cart

Mechanical Bolt Seal
CODE: MS-B5B

Add to Cart


MS-B5 seals are packaged 50 seals/box; full cases have 30 trays of 10 seals/tray (300 seals/case).

Features & Benefits:

  • Anti-Spin feature provides added security to prevent un-authorized entry.
  • Thicker steel bolt
  • Wider head on bolt and locking mechanism
  • Longer operational length bolt for added clearance (and convenience) for bolt cutter access to cut the bolt for removal.

Specifications

Imprinted Serial Numbers: Unique, pre-assigned*
Imprint Color: Black on Yellow and Red; White etch on Blue
Overall Size: .89 inch x 3.65 inch (assembled)
Maximum Locking Distance: 2.00 inches
Recommended Latch Hole Size: Minimum .45 inch; maximum .70 inch
Plastic Barrel Diameter: Tapered .42 to .45 (10.7 to 11.4 mm)
Metal Bolt Diameter: .31 inch (8 mm)
Bolt Head Minimum Width: .78 inch (20mm)
Locking Mechanism Head Minimum Width: .78 inch (20mm)
Anti-Spin Feature YES
Colors: Yellow, Red, Blue
Packaging Information:
  • Carton Qty: 50
  • Carton Dimensions: 12" x 5" x 6"
  • Carton Weight: 9 lbs

  • Carton Qty: 300
  • Carton Dimensions: 16" x 13" x 13"
  • Carton Weight: 53 lbs

Update on ISO 17712:2010

The current deadline for implemention of ISO17712:2010 is March 1, 2012.

The new standard is intended to improve the security of bolt seals. Suppliers must provide documentation that their seals meet the enhanced construction specifications and received a 'PASS' on the tamper evident performance testing.

The construction specifications are finalized. We can certify that our MS-B5 series bolt seals meet the new current standards for ISO 17712:2010.

The major changes in the new construction specifications include:

  • A minimum 8mm diameter of the steel bolt
  • A minimum 18mm width of the bolt head and locking mechanism
  • An anti-spin feature

However, the new ISO standard also includes tamper evident testing, but the details on these test methods are not finalized. Therefore, at this time, we can only certify the MS-B5 bolt seals meet the portion of ISO 17712:2010 which is final. When the tamper evident testing requirements in the standard are finalized, we will complete any addtional testing to certify that the bolt seals meet the tamper evident testing too.

While the new standard is voluntary, failure to comply could result in shipment delays based on C-TPAT procedures.

Although the tamper evident testing aspects of ISO 17712:2010 are not finalized, the construction specifications and structural performance of the new standard are tangible security improvements to the bolt seal design. Therefore, customers who want improved security should consider the new product standards, especially for cross border shipments.

Stock Standard Bolt Seals (7 mm diameter bolt)

Quantity (seals): 50 100 200 300 600 900
Cost per seal: $1.50 $1.25 $1.00 $.90 $.85 call
Total Cost:
$75 $125 $200 $270 $510 call
Ready to Ship: 1 Business Day

Mechanical Bolt Seal
CODE: MS-B4Y

Add to Cart

Mechanical Bolt Seal
CODE: MS-B3R

Add to Cart

mechanical bolt seal
CODE: MS-B4B

Add to Cart

MS-B3 seals are pacakged 50 seals/box; full cases include 6 boxes (300 seals).

MS-B4 seals are packaged 50 seals/box; full cases include 6 boxes (300 seals).

These bolt seals (7mm diameter steel) are C-TPAT compliant and pass the testing requirements of ISO/PAS 17712:2006.

The new ISO standard for bolt seals is effective March 1, 2012, which requires bolt seals to have a minimum steel bolt diameter of 8mm and a minimum dimension of 18mm on the head and locking mechanism (see more details below for the MS-B5 series). Our MS-B3 and MS-B4 bolt seals do not meet these dimensional requirements, but our MS-B5 bolt seals are compliant with the new ISO standard.




Added Features & Benefits:

  • Anti-Spin feature provides added security to prevent un-authorized entry.
  • Longer operational length bolt for added clearance (and convenience) for bolt cutter access to cut the bolt for removal.

Specifications

Imprinted Serial Numbers: Unique, pre-assigned*
Imprint Color: Black
Overall Size: .89 inch x 3.54 inch (assembled)
Maximum Locking Distance: 1.65 inches
Recommended Latch Hole Size: Minimum .38 inch; maximum .60 inch
Metal Bolt Diameter: .27 inch (7 mm)
Plastic Barrel Diameter: .79 inch
Color: Yellow, Red, Blue
Packaging Information:

MS-B3

  • Carton Qty: 50
  • Carton Dimensions: 23" x 6" x 4"
  • Carton Weight: 7 lb

  • Carton Qty: 300
  • Carton Dimensions: 24" x 12" x 12"
  • Carton Weight: 41 lb

MS-B4

  • Carton Qty: 50
  • Carton Dimensions: 12" x 4" x 5"
  • Carton Weight: 6 lb

  • Carton Qty: 300
  • Carton Dimensions: 12" x 12" x 10"
  • Carton Weight: 41 lb

Navaloop Bolt Cable Seals, Pkg of 10, MS-BC-03

Mechanical Bolt Seal

Code: MS-BC-03

Add to Cart Code: MS-BC-03

The Navaloop MS-BC-03 is a combination bolt and cable seal. The cable provides added security when wrapped around the keeper bars of a truck trailer or shipping container to secure both doors.

The bolt and locking mechanism have matching serial numbers and the brand name "NAVATECH" in black ink.

The Navaloop has an anti-spin feature.

Sold in Bags of 10 seals.

Pricing

Quantity (seals): 10 50 100 500 1500 3500
Price (per seal): $4.00 $3.00 $2.50 $1.99 $1.80 call
Total Cost: $40 $30 $250 $199 $180 call
Ready to Ship: 1 Business Day

Specifications

Product Code: MS-BC-03
Color: White
Cable Silver, 48 inch long, .07 inch (1.8mm) diameter
Bolt Diameter 7mm steel bolt; 9.5mm overall
Weight: Bag of 10 seals: 2 lbs
Case of 100 seals: 19 lbs
Dimensions: CASE of 100: 16" x 9" x 6" (LWH per carton)

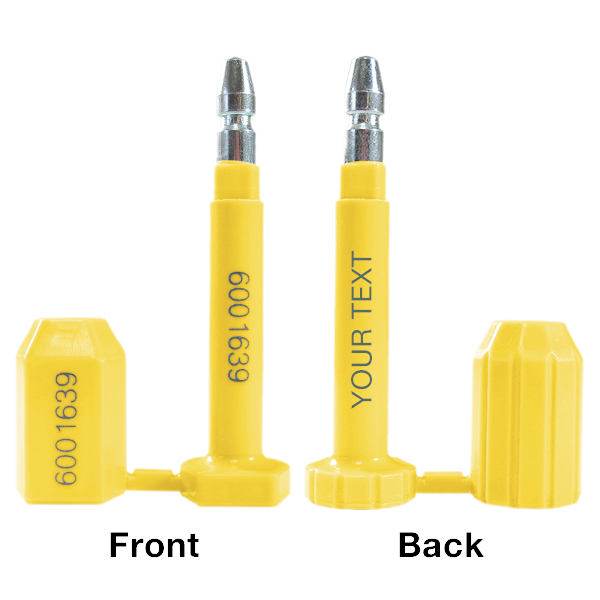

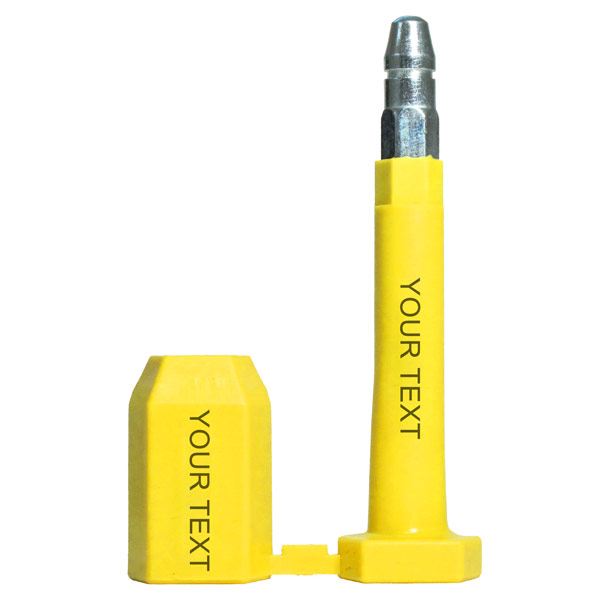

Customized Bolt Seals

Custom Bolt Seal
Code: MS-B5Y-C

Customized Bolt and Barrel (Premium Bolt Seal)

Pricing
Quantity (seals): 600 1,200 2,400 4,800
Price (per seal): $1.28 $1.22 $1.19 call
Ready to Ship: 2-3 weeks

Specifications

Maximum Imprint: 3 lines; 14 characters/line
Custom Options:
  • Engraving on blank bolt & barrel
  • Logo
  • Text
  • Unique serial numbers
Colors:

Yellow (MS-B5Y-C)

Also available in Blue or Red but requires 8 weeks.


Custom Bolt Seal
Code: MS-B5R (shown in RED)

Also available in Yellow or Blue

Customized Bolt Only (Premium Bolt Seal)

Pricing
Quantity (seals): 600 1,200 2,400 4,800
Price (per seal): $1.28 $1.22 $1.19 call
Ready to Ship: 2-3 weeks

Specifications

Maximum Imprint: 1 line; 10 characters
Stock Imprint: Preassigned unique serial numbers on barrel and bolt
Custom Options:
  • Logo & Text (bolt only)
  • Text (bolt only)
Colors:
  • Yellow (MS-B5Y)
  • Red (MS-B5R)
  • Blue (MS-B5B)

Custom Bolt Seal
Code: MS-B4Y (shown in YELLOW)

Also available in Red or Blue

Customized Bolt Only (Standard Bolt Seal)

Pricing
Quantity (seals): 600 1,200 2,400 4,800
Price (per seal): $1.08 $1.02 $.99 call
Ready to Ship: 2-3 weeks

Specifications

Maximum Imprint: 1 line; 10 characters
Stock Imprint: Preassigned unique serial numbers on barrel and bolt
Custom Options:
  • Logo & Text (bolt only)
  • Text (bolt only)
Colors:
  • Yellow (MS-B4Y)
  • Red (MS-B3R)
  • Blue (MS-B4B)
