High Security Seals for the Surface Deployment and Distribution Command (SDDC)

Product Overview

Whenever US military troops are deployed, the Surface Deployment and Distribution Command (SDDC) is involved in planning and executing the surface delivery of their equipment and supplies.

This webpage highlights and summarizes the High Security seals we manufacture which meet the specifications required by the SDDC to secure trucks and shipping containers.

To see pricing, please enter the correct password in the password field below:

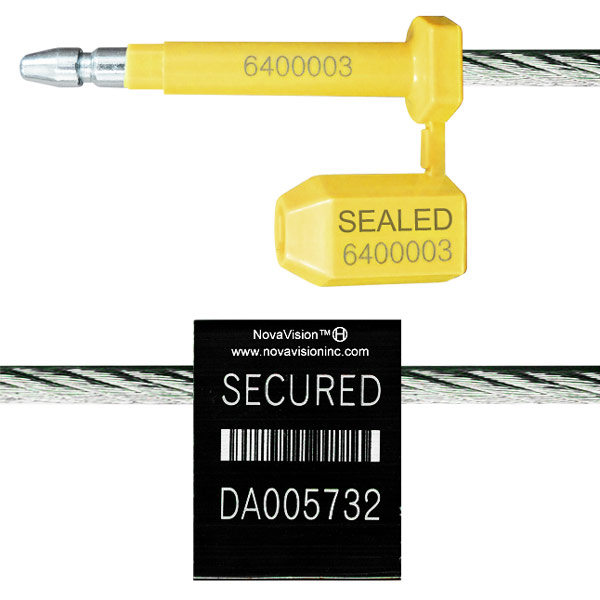

DualGuard Premium Bolt Seal (9 mm) & Cable Seal (5 mm) Combination, Adjustable Length, Black & Yellow, MS-C5B9-76KY

DualGuard - Bolt Seal Cable Seal Combination
C-TPAT Compliant C-TPAT and ISO 17712:2013 Compliant High (H) Security Seal

Our DualGuard seals include a 5mm cable seal and 9mm bolt seal in a unitized construction. Both the cable and bolt seal are both C-TPAT compliant and meet the new design and construction standards of ISO17712:2013, which provides improved security.

The cable is 76 inches long, which typically allows for a triple-wrap around the locking bars. The bolt seal secures the latch.

Sold as individual seals (Full Cases = 50 DualGuard Seals)

more info Add to Cart Code: MS-C5B9-76KY

Features & Benefits
  • Matching serial numbers on the cable lock, bolt, and bolt lock
  • Matching bar code on the cable lock
  • Anti-Spin feature on bolt provides added security to prevent un-authorized entry
  • Extra thick steel bolt for added durability
  • Wider head on bolt and locking mechanism for added security
  • Longer operational length bolt for added clearance for bolt cutter access to cut the bolt for removal
  • For added security, to remove, the cable and bolt must be cut separately
  • Bolt lock and cable lock have the words "SEALED" imprinted on them
Specifications
Security Rating "H" High Security
Cable Length 76 in
Cable Diameter 5 mm
Cable Type Adjustable Length, non pre-formed steel
Cable Locking Body Aluminum, Black
Stock Imprint on Cable Lock
  • "SEALED" Text
  • Unique Serial Number
  • Bar Code
Bolt Seal 9mm dia steel; 11mm OD of plastic coating; Yellow Plastic Coating
Stock Imprint on Bolt Seal SEALED + Matching serial number on bolt and bolt lock
Selling Units Individual Seals
Weights Single: 0.659 lbs, Case (50 qty): 32.95 lbs
Custom Imprint Options

Our premium bolt cable seals are also available custom imprinted. There is a minimum order quantity of 100 seals. Please Call for more details and to place a custom order.

  • Cable Dimensions: 5mm DIA x 76 in length
  • Bolt Seal Dimensions: 9mm DIA
  • Minimum Order Quantity: 100 seals
  • Ready to Ship: Allow 6 weeks
  • Selling Units: Individual Seals
Custom Imprint Pricing Per Seal
100+ 200+ 500+ 1,000+
$6.00 $5.75 $5.50 Call
Additional Photos
Bolt Cable Seal
Bolt Cable Seal
Documents/Guides

To see pricing, please enter the correct password in the password field at the top of the page.

Stock Premium Bolt Seals (8 mm diameter bolt)

Mechanical Bolt Seal

CODE: MS-B7Y

C-TPAT CompliantC-TPAT and ISO 17712:2010 Compliant High (H) Security Seal


Our MS-B7 series bolt seals are C-TPAT compliant and meet the new design and construction standards of ISO 17712:2010, which provides improved security. The new standard was intended to go into effect on March 1, 2012, but this has been delayed.

MS-B7 seals are packaged 50 seals/box; full cases have 250 seals.

Features & Benefits
  • Anti-Spin feature provides added security to prevent un-authorized entry.
  • Thicker steel bolt
  • Wider head on bolt and locking mechanism
  • Longer operational length bolt for added clearance (and convenience) for bolt cutter access to cut the bolt for removal.
Specifications
Security Rating: "H" High Security
Imprinted Serial Numbers: Unique, pre-assigned*
Imprint Color: Black
Overall Size: .89 inch x 3.65 inch (assembled)
Maximum Locking Distance: 2.00 inches
Recommended Latch Hole Size: Minimum .45 inch; maximum .70 inch
Plastic Barrel Diameter: Tapered .42 to .45 (10.7 to 11.4 mm)
Metal Bolt Diameter: .31 inch (8 mm)
Bolt Head Minimum Width: .78 inch (20mm)
Locking Mechanism Head Minimum Width: .78 inch (20mm)
Anti-Spin Feature YES
Colors: Yellow
Packaging Information: Carton Qty: 50
Carton Dimensions: 12" x 5" x 6"
Carton Weight: 9 lbs

Carton Qty: 250
Carton Dimensions: 13" x 22" x 6"
Carton Weight: 43 lbs

To see pricing, please enter the correct password in the password field at the top of the page.

Premium Cable Seal, 5.0 mm diameter (0.196 inch)

Cable Seal
C-TPAT CompliantC-TPAT and ISO 17712:2010 Compliant High (H) Security Seal
Security Rating: "H" High Security
Cable Type: Adjustable Length
Locking Body: Aluminum, Black
Stock Imprint: SECURED + unique serial number + bar code (white)
Packaging*: Bags of 10 seals

more info

Custom Imprint
Custom Imprint:
- Minimum Order Quantity: 500 seals
- Price for Custom: Add $.40/seal
- Ready to Ship: 4 weeks

To see pricing, please enter the correct password in the password field at the top of the page.

CargoShield® Barrier Seal, MS-BAR10

CargoShield Barrier Seal

Code: MS-BAR10

C-TPAT CompliantC-TPAT and ISO 17712:2010 Compliant High (H) Security Seal

Our CargoShield seal is one of the few barrier seals in the world which has been independently tested to comply with ISO 17712:2010(E) as a HIGH SECURITY seal.

CargoShield (MS-BAR10) also includes these added features:

  • Matching serial numbers on all 3 components for added security
  • Constructed of thicker steel for added durability and security
  • Unpainted metal components highlight tampering
  • Accommodates more container doors (up to 17.25 inch spacing of locking rods)
  • Easy to install (typically less than 15 seconds)

Each seal is packaged individually in a box suitable for shipping, which simplifies the logistics of distributing individual seals.

Full cases include 8 seals -- each seal is packaged in an individual box.

Specifications
Code: MS-BAR10
Locking Bar: 1-piece locking bar
Width: 1.38 inch (35mm)
Thickness: .31 inch (8mm)
Fits locking rod spacing: 2.25 inch to 17.25 inch
Serial number: Unique, matching number on both sides of bar
Shackles: Thickness: .22 inch (5.7mm)
Serial number: One on each shackle, matches number on the bar
Locking Pin: Diameter: .31 inch (8mm)
Finish: Chrome
Packaging:

Individual Seals

  • Seals/box: 1
  • Box Dimensions (LWH): 12 in x 3 in x 3 in
  • Weight: 6 lbs

Cases

  • Seals/case: 8
  • Case Dimensions (LWH): 20 in x 13 in x 6 in
  • Weight: 44 lbs
Additional Photos
barrier seal on locking rods
User Guides
Compliance/Datasheets

To see pricing, please enter the correct password in the password field at the top of the page.

CargoShield® Barrier Seal with Cable Seal, MS-BAR11

CargoShield Barrier Seal

Code: MS-BAR11

C-TPAT CompliantC-TPAT and ISO 17712:2010 Compliant High (H) Security Seal

For added security, our CargoShield is also available with an optional cable seal to secure the barrier seal to the door latch. In this configuration, the barrier seal is our product MS-BAR11. Adding the cable seal offers these additional features:

  • Secures the locking bar by restricting its movement to prevent tampering with the locking rods and/or barrier seal
  • The cable seal is ISO-rated as a HIGH SECURITY seal
  • The cable seal has a matching serial number to the barrier seal, which provides another layer of security and authentication
  • Includes a bar code version of the serial number for improved productivity in machine-reading the serial numbers
  • Secures the door latch, which reduces costs since a separate bolt seal is not required.
  • When installed requires two cuts to fully remove the cable and the barrier seal, which adds security.

Full cases include 6 seals -- each seal is packaged in an individual box suitable for shipping, which simplifies the logistics of distributing individual seals.

Specifications
Code: MS-BAR11
Locking Bar: 1-piece locking bar
Width: 1.38 inch (35mm)
Thickness: .31 inch (8mm)
Fits locking rod spacing: 2.25 inch to 17.25 inch
Serial number: Unique, matching number on both sides of bar
Shackles: Thickness: .22 inch (5.7mm)
Serial number: One on each shackle, matches number on the bar
Locking Pin: Diameter: .31 inch (8mm)
Finish: Chrome
Cable Seal: ISO rating: HIGH SECURITY seal according to ISO17712:2010(E)
Cable Diameter: 5mm (.19 inch)
Cable Length: 30 inches (760mm)
Cable Housing: Aluminum, Black color
Serial Number: YES, matches number on the bar
Imprint: Serial number + Bar Code of Serial Number +SEALED
Packaging:

Individual Seals

  • Seals/box: 1
  • Box Dimensions (LWH): 12 in x 3 in x 3 in
  • Weight: 7 lbs

Cases

  • Seals/case: 6
  • Case Dimensions (LWH): 20 in x 13 in x 6 in
  • Weight: 42 lbs
Additional Photos
barrier seal on locking rods
User Guides
Compliance/Datasheets

To see pricing, please enter the correct password in the password field at the top of the page.
