High Security Seals for use by the Airforwarders Association Members

Product Overview

The AfA is the premier trade association for the forwarder and logistics Industry. A key element within your process is secure transit of your customers goods.

NovaVision specializes in tamper evident tape and label products as well as holographic tamper evident products, and we have the ability to quickly customize depending on your application. All of our CCSF products meet the requirements of the TSA for use on screened cargo. A product of interest to the AfA membership might be our non-residue tamper evident label to seal/secure an aircraft hatch. You can also source the standard and some not so standard mechanical seals like plastic truck seals, bolt seals and cable seals from our facility in Ohio.

Please feel free to contact Rob directly at 941-302-0848 (m) or via email at rbrown@novavisioninc.com for any questions or to obtain your AfA discount pricing code.

To see pricing, please enter the discount price code in the field below:

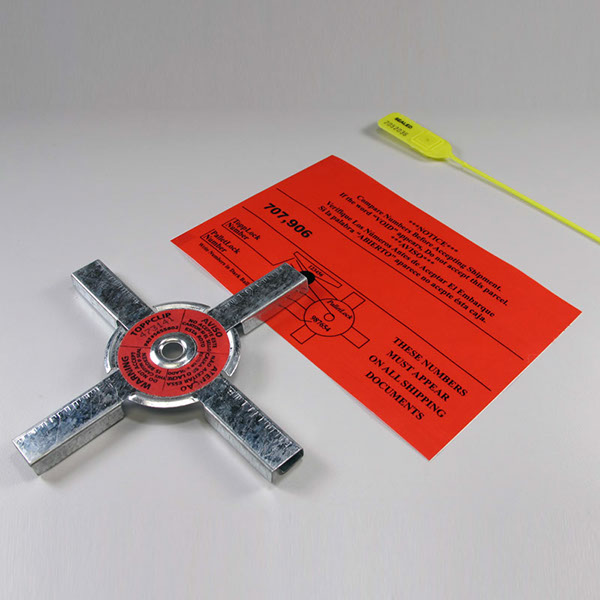

Stock Topp Clip™ Master Carton, Carton of 10, 50 or 200 Seal Sets, ZTC-10-MS, ZTC-50-MS, ZTC-200-MS

Topp Clip Pallet Seal

BEST VALUE: The Topp Clip™ master carton includes 200 pallet seals. As needed, order the hole punch separately (see details below).

The seals have matching serial numbers for the set (Topp Clip™, plastic seal, and tamper evident label). If you prefer to have random numbers, simply mix the components.

Codes: ZTC-10-MS, ZTC-50-MS, ZTC-200-MS


How Does the Topp Clip™ System Work?

The Topp Clip™ system features 3 components, which together provide both a deterrent and evidence of tampering:

  1. Metal Clip for Banding
  2. Plastic Adjustable Seal
  3. Tamper Evident Warning Label

Each component has a unique serial number. The Tamper Evident Warning Label facilitates recording of the component serial numbers atop the pallet.

The metal "Topp Clip™" is the key component of the system. The Topp Clip™ is the only crimp needed to secure the banding of the pallet seal system. So the presence of any other banding crimps in the seal system indicates tampering.

A visual inspection protocol is essential to achieve the maximum effectiveness.

  • The shipper should record the serial numbers on the shipping documents.
  • The receiver should verify the component serial numbers and look for other signs of obvious tampering.

After your cargo reaches its destination, you can use the Topp Clip™ protected pallets as a storage security tool to help save time when counting items or when taking physical inventory.

Additionally it deters tampering or theft of pallet contents and also avoids repacking for cross-docked or trans-ship freight.

The Topp Clip™ system meets the chain of custody specifications of the TSA for sealing CCSF containers.

For added security (and for larger pallets with multiple banding), use two or more Topp Clip™ devices and related banding.

A standard tensioner and crimper tool are needed to apply Topp Clips™.

A special hole punch is required to apply the plastic adjustable seal. This punch can be purchased separately. The punch is also a standard item in the 'starter kit' (TCP-50) along with 50 Topp Clip™ seals.

If using plastic banding, the standard punch is acceptable. If using metal banding, we recommend the Heavy Duty punch.

Customized Topp Clips™ provide more security. We can include your custom logo, text, serial numbers, colors, etc.

If your pallet also uses conventional crimped strapping to secure the load, for added security use our pallet labels to secure the crimped seals on the strapping.

Specifications

  1. Topp Clip™ Metal Crimping Clip
    • Material: Galvanized steel
    • Thickness: .020 inch thick (typical)
    • Suitable for .50 inch wide strapping
    • Affixed with red, tamper evident label (VOID OPENED) with serial number
  2. Adjustable Plastic Seal
    • Material: Polypropylene plastic
    • Plastic strap dimensions: .10 inch diameter (typical), minimum 5 inch length
    • Imprint: "Topp Clip" + serial number
    • Color: Yellow, but may vary
  3. Tamper Evident Warning Label
    • Film Material: Polyester, minimum .001 inch thick
    • Tamper Evident Message: VOID OPENED
    • Size: 3.75 inch x 5.75 inch
    • Label Color: Red
    • Imprint Color: Black
    • Adhesive Material: Permanent Acrylic
    • Minimum Application Temperature: 45F
    • Service Temperature (after applied): -40°F to +180°F
  4. Hole Punch (Model: TCP)
    • Material: Hardened Steel suitable for plastic strapping
    • Hole Size: 1/8 inch diameter (typical)

Installation Instructions

Tools Needed:

  • Your strapping tensioner
  • Your banding crimper
  • A Special Topp Clip™ Punch

Prior to affixing the Topp Clip™ seals, prepare the pallet:

  • As needed to prevent pilfering of one carton from the pallet, use cardboard panels or wood panels on the sides, top and bottom. Other options include shrink wrap, stretch wrap, or a plastic bag
  • As needed to prevent shifting loads, prepare the pallet with stretch wrap, banding, edge protectors and banding protectors.

Note: Remove the Topp Clip™ Warning label slowly from the silicone-coated backer material. Removing the label quickly may cause the label to pre-maturely show the hidden VOID message.

Our Topp Clip™ Installation Video

See the link below for detailed instructions:

Topp Clip™ Installation Guide

Typical Applications

Topp Clip Pallet Seals
Topp Clip™ on Shipping Container

Topp Clip Pallet Seals
Sealed Shipping Pallet

To see pricing, please enter the discount price code in the price code field at the top of the page.

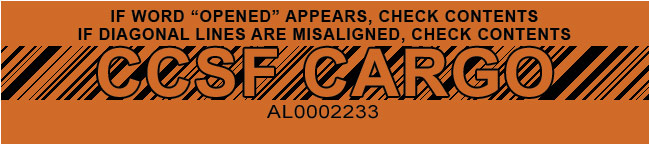

CCSF Security Tape, High Residue Formula, Opaque Orange, 2 in x 250 ft, CCSF-PVT2OR-227D-250

CCSF Tamper Evident Tape

Orange CCSF tape has a high residue formulation which is designed for wax-coated cartons typically used for shipping frozen and refrigerated foods.

This tape also works well on corrugated cartons, recycled cartons, shrink wrap, stretch wrap, textured surfaces, most plastics and other low surface energy surfaces.

For automatic tape machines, the high residue formula may require lower application speeds.

View Video

Code: CCSF-PVT2OR-227D-250

Specifications
Code CCSF-PVT2OR-227D-250
Material Polyester
Adhesive Permanent Adhesive
Film Thickness 0.001 in (1 mil)
Adhesive Thickness 0.001 in (1 mil)
Total Thickness 0.002 in (2 mil)
Minimum Application Temperature +40°F
Size 2 in x 250 ft
Residue Level High
Stock Imprint
  • Instruction Text
  • Unique Serial Number
  • "CCSF CARGO" Text
Stock Imprint Color Black
Security Features
  • Tamper Evident
  • Diagonal Lines
  • Serial Numbered
Color Orange
Tamper Pattern "OPENED", Misaligned Diagonal Lines
Weight Case of 36 Rolls: 25 lbs
Shipping Order by 2pm (EST); Ships Same Day

To see pricing, please enter the discount price code in the price code field at the top of the page.

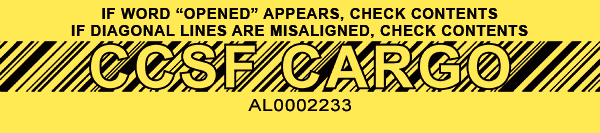

CCSF Security Tape, High Residue Formula, Opaque Yellow, 2 in x 250 ft, CCSF-PVT2YE-227D-250

CCSF Tamper Evident Tape

Yellow CCSF tape has a high residue formulation which is designed for wax-coated cartons typically used for shipping frozen and refrigerated foods.

This tape also works well on corrugated cartons, recycled cartons, shrink wrap, stretch wrap, textured surfaces, most plastics and other low surface energy surfaces.

For automatic tape machines, the high residue formula may require lower application speeds.

View Video

Code: CCSF-PVT2YE-227D-250

Specifications
Code CCSF-PVT2YE-227D-250
Material Polyester
Adhesive Permanent Adhesive
Film Thickness 0.001 in (1 mil)
Adhesive Thickness 0.001 in (1 mil)
Total Thickness 0.002 in (2 mil)
Minimum Application Temperature +40°F
Size 2 in x 250 ft
Residue Level High
Stock Imprint
  • Instruction Text
  • Unique Serial Number
  • "CCSF CARGO" Text
Stock Imprint Color Black
Security Features
  • Tamper Evident
  • Diagonal Lines
  • Serial Numbered
Color Yellow
Tamper Pattern "OPENED", Misaligned Diagonal Lines
Weight Case of 36 Rolls: 25 lbs
Shipping Order by 2pm (EST); Ships Same Day

To see pricing, please enter the discount price code in the price code field at the top of the page.

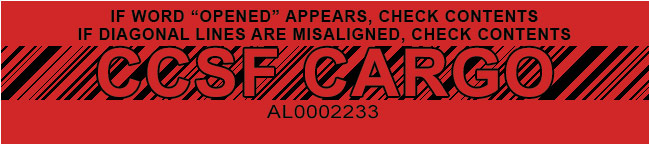

CCSF Security Tape, High Residue Formula, Opaque Red, 2 in x 250 ft, CCSF-PVT2RE-227D-250

CCSF Tamper Evident Tape

Red CCSF tape has a high residue formulation which is designed for wax-coated cartons typically used for shipping frozen and refrigerated foods.

This tape also works well on corrugated cartons, recycled cartons, shrink wrap, stretch wrap, textured surfaces, most plastics and other low surface energy surfaces.

For automatic tape machines, the high residue formula may require lower application speeds.

View Video

Code: CCSF-PVT2RE-227D-250

Specifications
Code CCSF-PVT2RE-227D-250
Material Polyester
Adhesive Permanent Adhesive
Film Thickness 0.001 in (1 mil)
Adhesive Thickness 0.001 in (1 mil)
Total Thickness 0.002 in (2 mil)
Minimum Application Temperature +40°F
Size 2 in x 250 ft
Residue Level High
Stock Imprint
  • Instruction Text
  • Unique Serial Number
  • "CCSF CARGO" Text
Stock Imprint Color Black
Security Features
  • Tamper Evident
  • Diagonal Lines
  • Serial Numbered
Color Red
Tamper Pattern "OPENED", Misaligned Diagonal Lines
Weight Case of 36 Rolls: 25 lbs
Shipping Order by 2pm (EST); Ships Same Day

To see pricing, please enter the discount price code in the price code field at the top of the page.

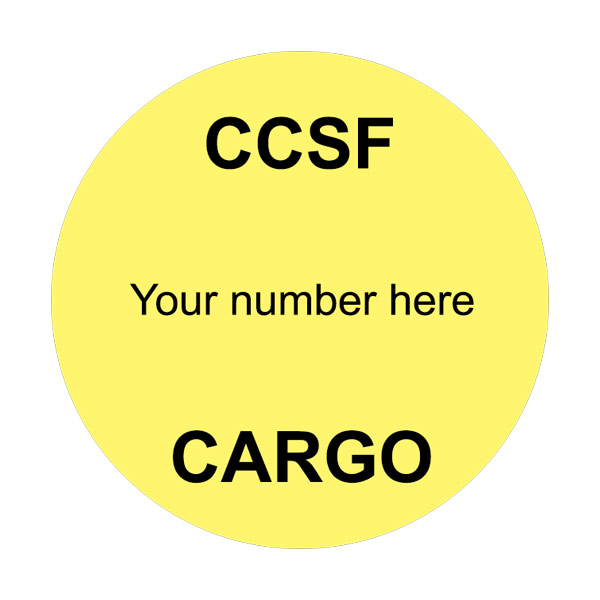

CCSF Cargo Stickers, 1.5 in DIA, Circle, Roll of 1,000, CCSF-1.5

CCSF Cargo Stickers

These CCSF labels do not include a tamper evident feature. Your unique CCSF registration number is required for these labels to ship. For order quantities other than what is listed here, please call.

If you need rolls of less than 1,000 labels, please call.

Code: CCSF-1.5

Specifications
Code CCSF-1.5
Material Paper with Permanent Adhesive
Size 1.5 in Diameter
Color Yellow (PMS 803)
Custom Imprint Text in black (Font: Arial 8 pt)
Tamper Pattern None
Shipping 1 Week; Optional RUSH Service
Product Information Sheet Download PDF

To see pricing, please enter the discount price code in the price code field at the top of the page.

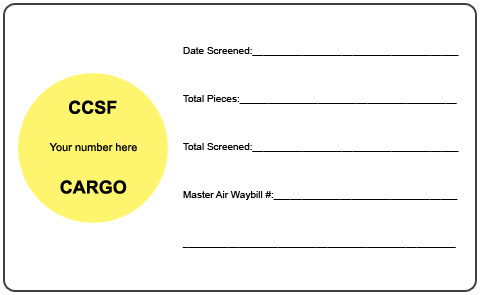

CCSF Cargo Labels, 3 in x 5 in, Rectangle, Roll of 500, CCSF-53

CCSF Cargo Labels

Your unique CCSF registration number is required for these labels to ship. For order quantities other than what is listed here, please call.

If you need rolls of less than 500 labels, please call.

Code: CCSF-53

Specifications
Code CCSF-53
Material Paper with Permanent Adhesive
Size 3 in x 5 in
Color Yellow (PMS 803)
Custom Imprint Text in black (Font: Arial 8 pt)
Tamper Pattern None
Options Tamper Evident Label (Call For Details)
Shipping 1 Week; Optional RUSH Service
Product Information Sheet Download PDF

To see pricing, please enter the discount price code in the price code field at the top of the page.

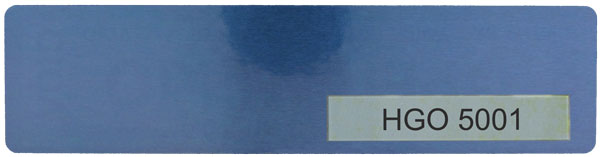

Non Residue Security Label, 1.0 in x 4.0 in, XSG52-A05-29BSN (BLUE) For use with aircraft hatches and entry doors

Tamper Evident Security Label

Before

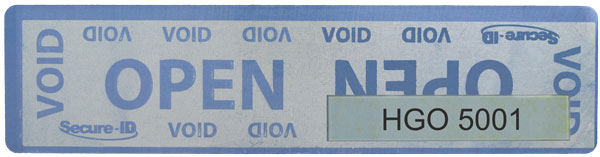

Tamper Evident Security Label

After

Our Secure-ID labels are designed to show signs of tamper evidence immediately when removed from the applied surface. Unlike some competitive products, there is no waiting period for the tamper evidence feature to become operable. Once activated, the hidden tamper evident message is permanent, which prevents unauthorized re-use of the tampered label.

Secure-ID labels are often used to detect tampering with aircraft hatches and entry doors.

Label Size: 1.0 in x 4.0 in

Code: XSG52-A05-29BSN (BLUE)

security label video

To see pricing, please enter the discount price code in the price code field at the top of the page.

Standard Bolt Seals, 8 mm DIA bolt, MS-B7Y, Anti-Spin Feature

Bolt Security Seal
C-TPAT Compliant
C-TPAT and ISO 17712:2013 Compliant High (H) Security Seal

Our MS-B7 bolt seals are comparable to most competitive bolt seals and feature an "anti-spin" security feature. These seals are rated HIGH security by ISO17712:2013 and C-TPAT for cross border shipments. The seals have a longer usable length (2.0 inches) for added clearance and convenience for bolt cutter access to the bolt for removal for typical truck trailers, shipping containers and rail cars. The MS-B7 is available is small order quantities (10 seals) and in multiple colors for color coding.

tamper evident label video

Code: MS-B7Y

Product Details

MS-B7 seals are packaged 10 seals/tray, 50 seals/box; full cases have 250 seals/case.

Product Features & Benefits:

  • "Anti-Spin" feature minimizes tampering and un-authorized entry
  • Thicker steel bolt (8mm) for added security and durability
  • Wider head on bolt and locking mechanism for added security
  • Longer usable length (2.0 inches) for added clearance to cut the bolt for removal
Specifications
Security Rating "H" High Security
Imprinted Serial Numbers Unique, pre-assigned*
Imprint Color Black on Yellow, Red and Green; White etch on Blue
Overall Size 0.89 inch x 3.65 inch (assembled)
Maximum Locking Distance 2 inches
Recommended Latch Hole Size Minimum 0.45 inch; maximum 0.70 inch
Plastic Lock Diameter Tapered 0.42 to 0.45 (10.7 to 11.4 mm)
Metal Bolt Diameter 0.31 in (8 mm)
Bolt Head Minimum Width 0.78 in (20mm)
Locking Mechanism Head Minimum Width 0.78 in (20mm)
Anti-Spin Feature YES
Colors Yellow, Red, Light Blue (Formerly Cyan), Medium Blue, Green
Packaging Information MS-B7
  • Carton Qty: 50
  • Carton Dimensions: 13 in x 4 in x 5 in
  • Carton Weight: 8.6 lbs
  • Case Qty: 250
  • Case Dimensions: 13 in x 22 in x 6 in
  • Case Weight: 43 lbs
Technical Drawing MS-B7 Spec Drawing
ISO 17712 Certificate

To see pricing, please enter the discount price code in the price code field at the top of the page.

DualGuard™ Premium Bolt Seal (8 mm) & Cable Seal (5 mm) Combination, Adjustable Length, Black & Yellow, MS-C5B9-76KY

DualGuard™ - Bolt Seal Cable Seal Combination
C-TPAT Compliant
C-TPAT and ISO 17712:2013 Compliant High (H) Security Seal

Our DualGuard™ seals include a 5mm cable seal and 8mm steel bolt seal in a unitized construction. Both the cable and bolt seal are both C-TPAT compliant and meet the new design and construction standards of ISO17712:2013, which provides improved security.

The cable is 76 inches long, which typically allows for a double-wrap around the locking rods and for the bolt seal to secure the latch. For added security, to remove this seal requires 2 cuts (one for the cable and one for the bolt seal).

Sold as individual seals (Full Cases = 50 DualGuard™ Seals)

barrier seal

Code: MS-C5B9-76KY

Features & Benefits
  • Matching serial numbers on the cable lock, bolt, and bolt lock
  • Matching bar code on the cable lock
  • Anti-Spin feature on bolt provides added security to prevent un-authorized entry
  • Extra thick steel bolt for added durability
  • Wider head on bolt and locking mechanism for added security
  • Longer operational length bolt for added clearance for bolt cutter access to cut the bolt for removal
  • For added security, to remove, the cable and bolt must be cut separately
  • Bolt lock and cable lock have the words "SEALED" imprinted on them
Specifications
Security Rating "H" High Security
Cable Length 76 in
Cable Diameter 5 mm
Cable Type Adjustable Length, Non Pre-Formed Steel, Galvanized Steel
Cable Locking Body Aluminum, Black
Stock Imprint on Cable Lock
  • "SEALED" Text
  • Unique Serial Number
  • Bar Code
Bolt Seal 8mm dia steel; 10.5mm OD of plastic coating; Yellow Plastic Coating
Stock Imprint on Bolt Seal SEALED + Matching serial number on bolt and bolt lock
Selling Units Individual Seals
Weights Single: 0.659 lbs, Case (50 qty): 32.95 lbs
Custom Imprint Options

Our premium bolt cable seals are also available custom imprinted. There is a minimum order quantity of 100 seals and up to a 6 week lead time. Please Call for more details and to place a custom order.

Additional Photos
Bolt Cable Seal
Bolt Cable Seal
Documents/Guides

To see pricing, please enter the discount price code in the price code field at the top of the page.

Premium Cable Seal, 3.5 mm diameter (0.138 inch), Adjustable Length, Blue, Bag of 10, MS-C3.5

Cable Seal
C-TPAT Compliant
C-TPAT and ISO 17712:2013 Compliant High (H) Security Seal
Specifications
Security Rating: "H" High Security
Cable Type Adjustable Length, Galvanized Steel, Non-Preformed
Locking Body Aluminum, Blue
Stock Imprint
  • "SECURED" Text
  • Unique Serial Number
  • Bar Code
Stock Imprint Color White
Packaging Bags of 10 Seals

more info View Video

Custom Imprint Options
  • Minimum Order Quantity: 500 Seals
  • Price For Custom: Add $0.35/Seal
  • Ready To Ship: 4 Weeks

To see pricing, please enter the discount price code in the price code field at the top of the page.

Economy Plastic Band Seals, Red, Case of 1,000, MS-P16R

Plastic Band Seal, Red

Code: MS-P16R
Case of 1,000 seals

View Video

To see pricing, please enter the discount price code in the price code field at the top of the page.

For ordering and more information, please contact:
Rob Brown Rob Brown
Cargo Specialist
National Accounts Representative
rbrown@novavisioninc.com
(941) 302-0848
Questions? Need Help?
