Overview

The Federal Information Processing Standards (FIPS140-1, FIPS140-2, etc) require security labels with a unique serial number, an anti-counterfeiting feature and a robust tamper evident feature.

This page shows a typical electronic device with affixed security labels shown in RED.

Graphics and text on this page provided courtesy of Cisco Systems, Inc. Any text changes made by NovaVision are shown in parens ().

NovaVision, Inc and Cisco Systems, Inc do not have a commercial relationship.

Links for more information

Return to FIPS 140-2 Compliant Holo-Guard Labels Product Page

Typical Applications
Registry of custom imprints
Specifications & Intended Use
General Directions of Use
Application Tips

Other NovaVision Products (click for more info):

Security Hologram Stickers
Promotional Labels and Stickers
Security Tape and Seals
Anti Pilfering Seals
Holographic Paper and Board
3D Full Color Holograms
Water Detection Labels
Time Expiring Visitor Badges
Custom ID Badges
Holographic ID Cards
Holographic ID Overlays
ID Cards and Accessories
Parking Permits
Thermal Transfer Ribbons
Thermal Labels
Thermal Printers
Laminated Bar Code Labels
Adhesive Cleaning Kits

FIPS 140-2 Compliant Physical Security

The router is entirely encased by a thick steel chassis. The front of the router provides 4 port adapter slots, on-board LAN connectors, PC Card slots, and Console/Auxiliary connectors. The power cable connection, a power switch, and the access to the Network Processing Engine are at the rear of the router.

Once the router has been configured to meet FIPS 140-1 Level 2 requirements, the router cannot be accessed without signs of tampering. To seal the system, apply serialized tamper-evidence labels as follows:

• Clean the cover of any grease, dirt, or oil before applying the tamper evidence labels. Alcohol-based cleaning pads are recommended for this purpose. The ambient air must be above 10C, otherwise the labels may not properly cure. (NovaVision recommends drying the surface with a clean paper after using the alcohol pad; letting the alcohol air dry can cause other adhesion issues)


• The tamper evidence label should be placed so that the one half of the label covers the enclosure and the other half covers the 7206 VXR NPE-400 Input/Output Controller.


• The tamper evidence label should be placed over the Flash PC Card slots on the Input/Output Controller.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the port adapter slot 1.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the port adapter slot 2.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the port adapter slot 3.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the port adapter slot 4.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the port adapter slot 5.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the port adapter slot 6.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the network processing engine.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the power supply plate.


• The tamper evidence label should be placed so that one half of the label covers the enclosure and the other half covers the redundant power supply plate.

The labels completely cure within five minutes.

Typical Installation of Security Labels for FIPS 140-2 Application

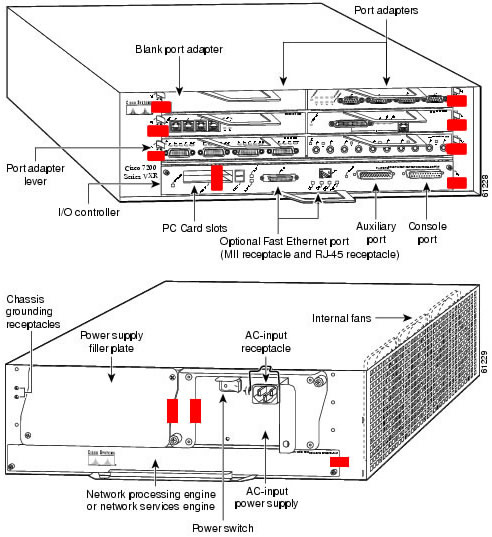

This graphic shows a typical electronic device with affixed high security labels shown in RED.

The tamper evidence seals are produced from a special thin gauge vinyl (or security film) with self-adhesive backing. Any attempt to remove port adapters or service modules will damage the tamper evidence seals or the painted surface and metal of the module cover. Since the tamper evidence labels have nonrepeated serial numbers, the labels can be inspected for damage and compared against the applied serial numbers to verify that the module has not been tampered with. Tamper evidence labels can also be inspected for signs of tampering, which include the following: curled corners, bubbling, crinkling, rips, tears, and slices. The word "Opened" (or a geometric pattern) can appear if the label was peeled back.

Cisco 7206 VXR Router Security Policy Copyright © 2001, Cisco Systems, Inc. All rights reserved.
